2. Open the printer's top cover by releasing the green levers located on each side of the
printer and lifting the top cover.
3. Place a roll of media onto the internal Media Spindle.
4. Feed the media (printing side face up) under the Teflon bar and through the support
guides. The media should come to rest outside the printer. Refer to Fig #7.
5. Adjust the black center-biased media guides in or out by turning the adjustment knob so
they are slightly touching the edges of the media/backing.
Media Guide
6. Close the printer
Note: Failure to securely close and lock the cover will result in poor print quality.
Fig. 8 Close the top cover completely

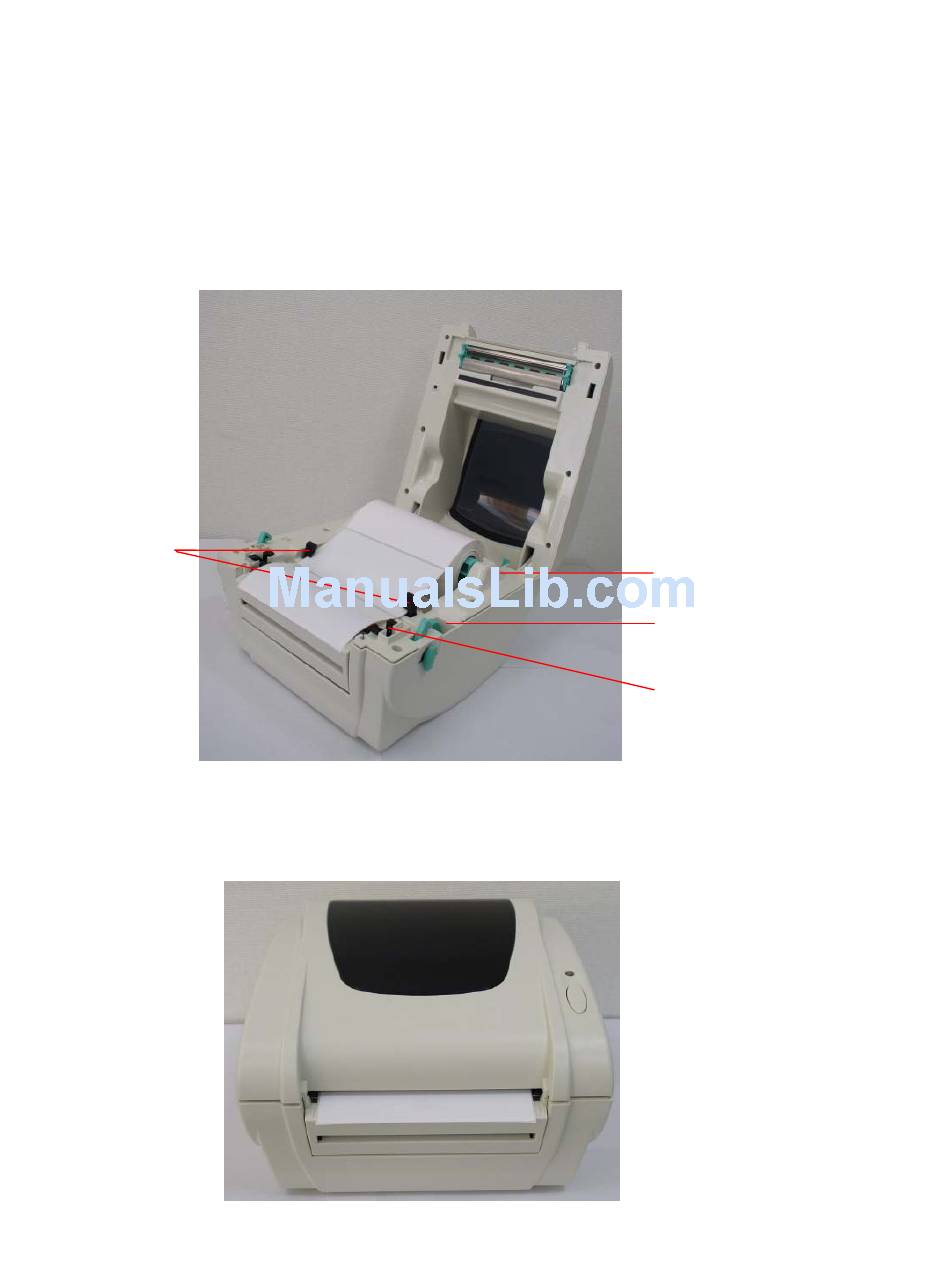

Fig. 7 Media roll installation (II)
top cover slowly and make sure the cover locks securely.
Media Roll Mount
Adjustment Knob
Platen
5
