3. Slightly loosen the right hex head screw which fixes the ribbon applicator to the front
side. Then fix the applicator again. This gives the right side of the ribbon more
tension by changing position of the ribbon applicator.
4. Feed some media (labels) until the wrinkles on the ribbon are removed. Then issue
ten (10) media samples (labels) for inspection. If the wrinkles are produced again,
repeat the above procedure.
20

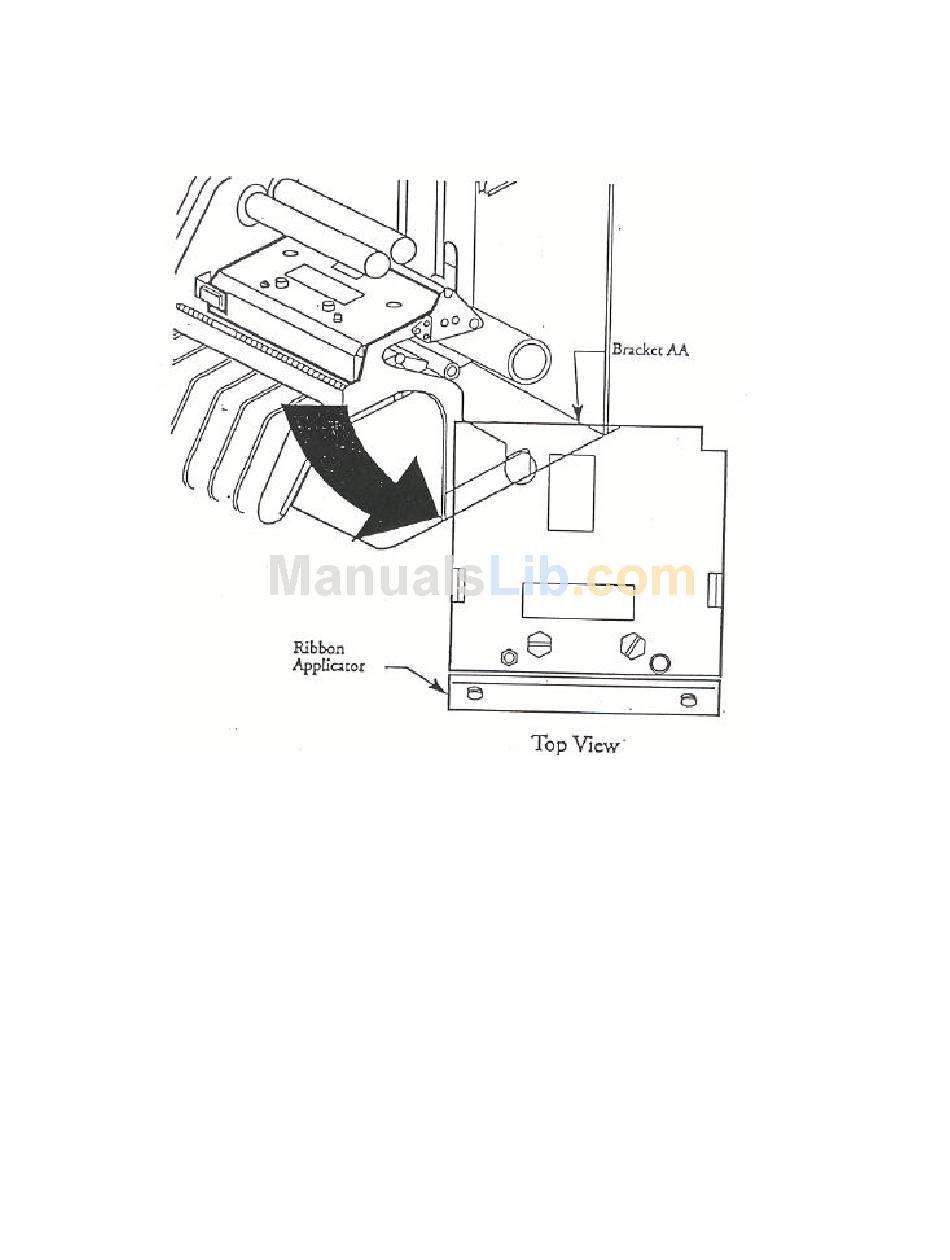

Figure 14. Ribbon Application Adjustment
