7.0 SENSORS

There are four sensors and a switch that detect media (labels), ribbon and thermal head
position.
Sensor Type and Functions:
NOTE:
1. The Media Gap Sensor works with the Black Line Sensor, so both sensors must be positioned in
line. The Black Line Sensor consists of both direct reflective sensor unit for black line sensing
and photo emitter for the Media Gap Sensor.
2. The Ribbon Sensor works with the reflection plate so that both the surface of the Ribbon Sensor
and the reflection plate have to be parallel to each other.
NAME
Media Gap (Label Gap)
Black Line
Ribbon
Presentation
Head-Up

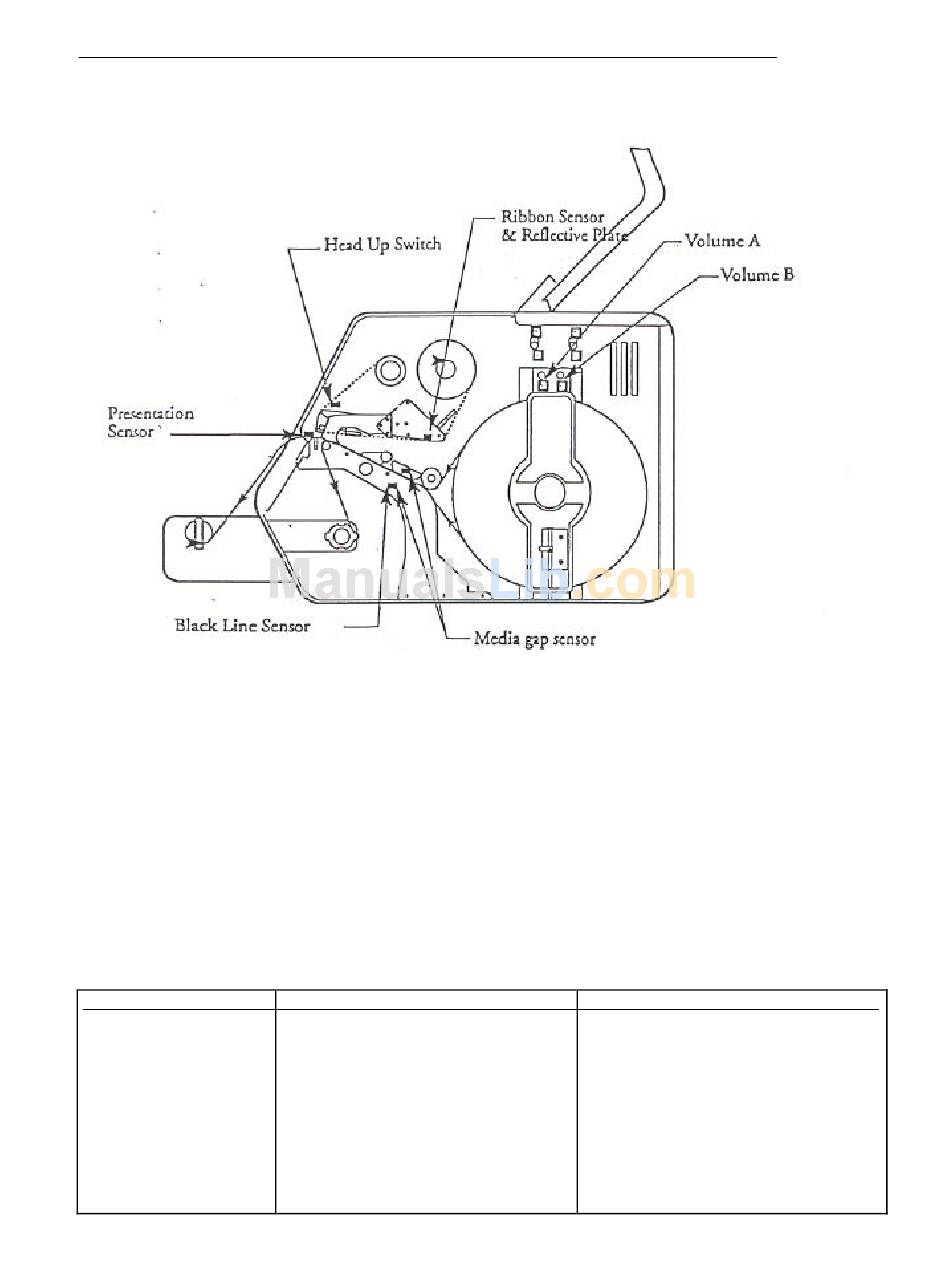

Figure 15. Location of Sensors and Switch

TYPE
Photo receiver and photo emitter.
Direct reflective.
Indirect reflective with reflective plate.
Direct reflective.
Touch sensitive micro switch.
FUNCTION
To detect gap of media.
To detect black line on "butt-cut" media
To detect the end of the ribbon.
To detect the condition of issued label in
Presentation Mode (peeled off or remaining)
To detect the setting condition of the thermal
head.
