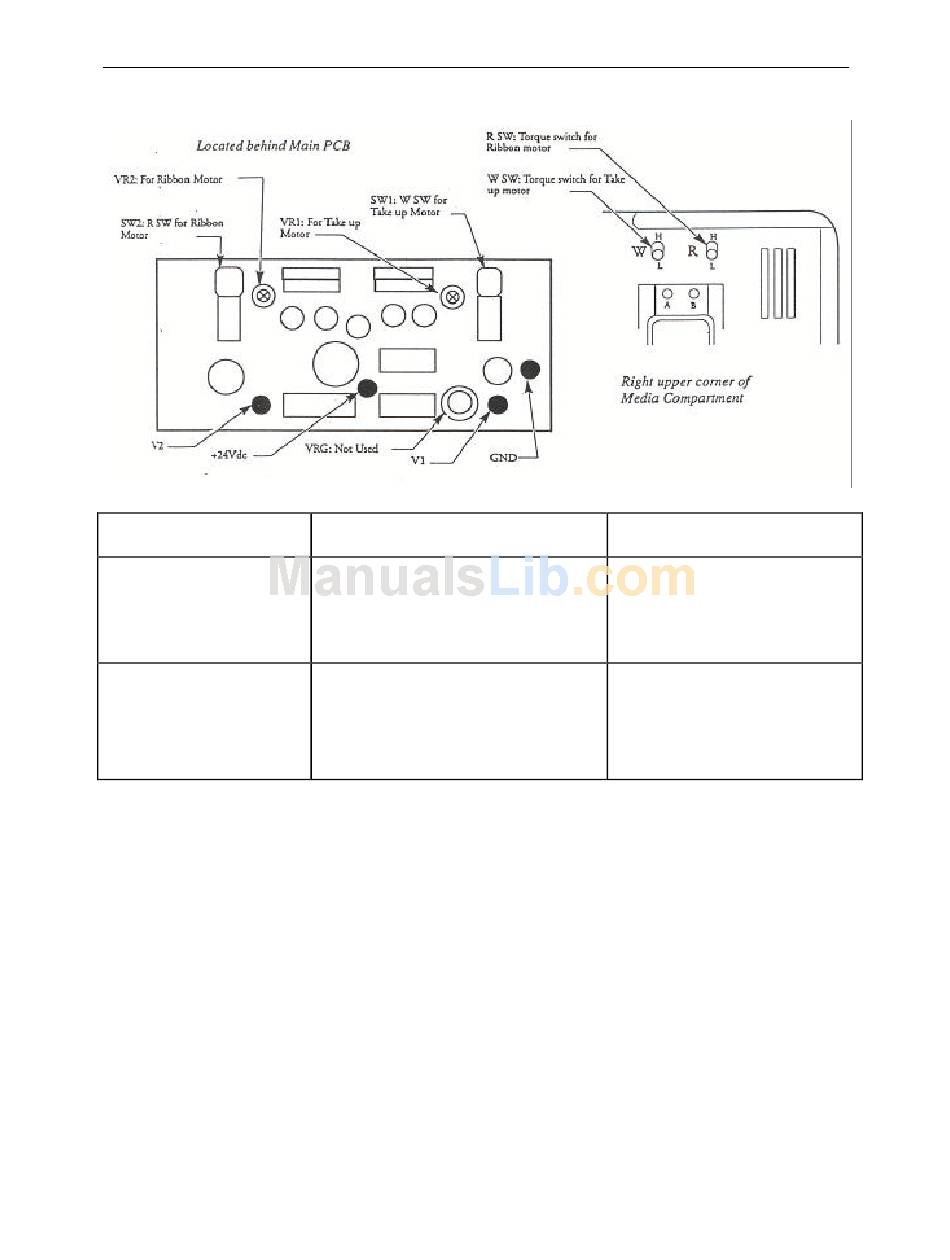

11.0 VOLTAGE CHECK AND ADJUSTMENT

Check Terminal
V1
V2
NOTES:
W switch for Take-Up Motor has to be set to 'H' side whenever Presentation Mode is
selected. In other modes, W switch should be set to 'L' side.
R switch for Ribbon Motor is set to 'L' as usual.
26
Switch Setting and
Typ. Voltage
W H:20.0 +/- 0.5
L: 18.0 +/- 0.5
R H: 20.0 +/- 0.5
L: 17.6 +/- 0.5
Usage and Adjusted By
For Take-Up Motor
By VR1 on Motor Control
Board (TPB-2177)
For Ribbon Motor
By VR2 on Motor Control
Board (TPB-2177)
