14. Repeat Steps 10 through 13 as required until the right part of the contrast of Result 1
is better than Result 2 or 3.
15. Perform test printing as detailed in Step 12 for the left part contrast. If needed, use a
small slotted screwdriver rod to push down or lift up the left hand side of the thermal
head block to achieve the desired results.
16. When the test printing on both sides is acceptable, you need to check for incline on
the printing result. Fold the media (label) vertically. If the difference of printing
between the right side and the left side of the label is more than .02 in./0.5 mm, you
will need to adjust the position of Bracket EA accordingly. See Figure 11.

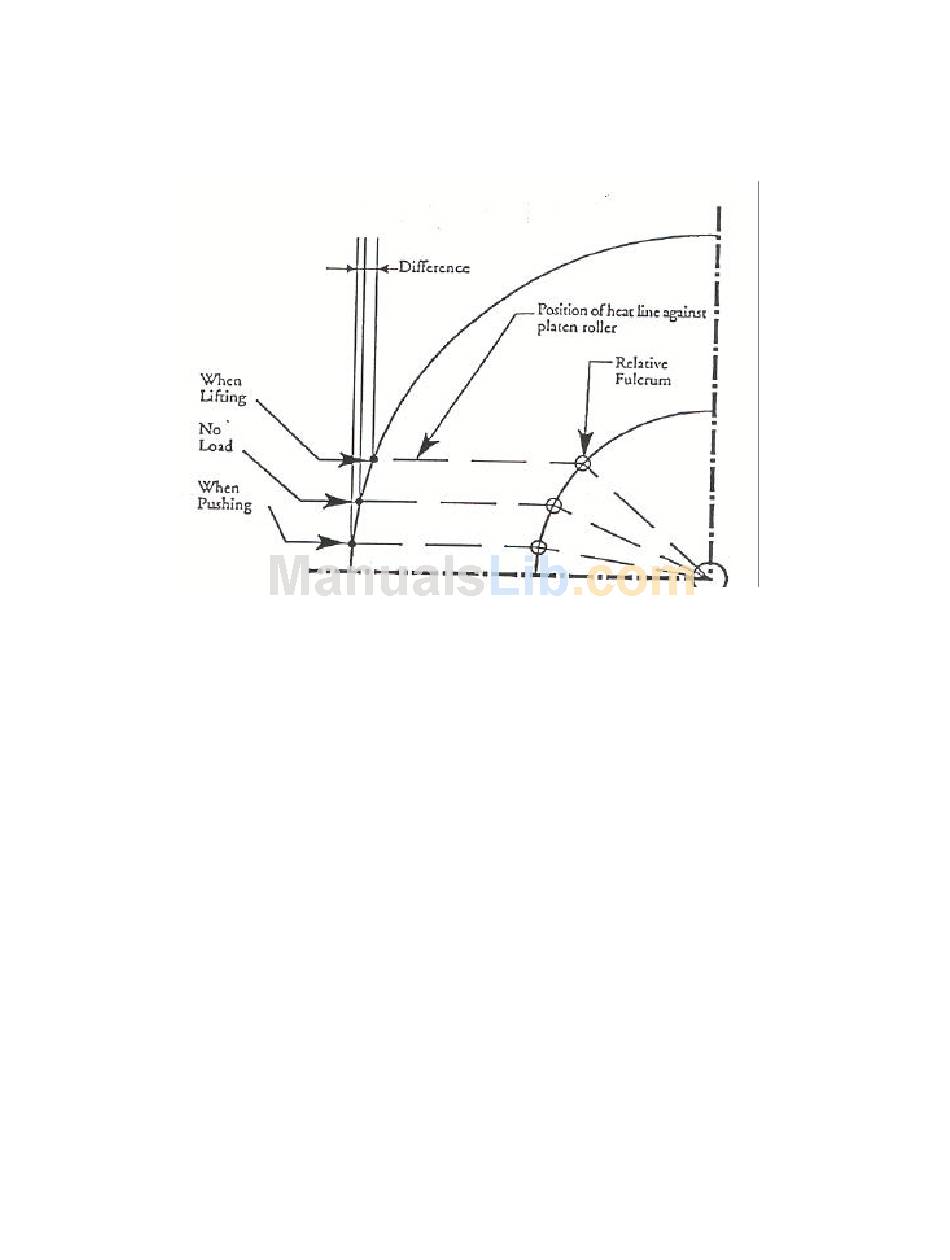

Figure 10. Head Positioning
