4.3
Thermal Head Positioning
If you have replaced the thermal head, positioning should be checked. Verify the ribbon
running condition as well.
Note:
Make sure of the following prior to the adjustment:
Power off the printer
Use full width media (labels) 5.2 in./132 mm) when checking.
Rotate the head pressure screw clockwise completely.
10

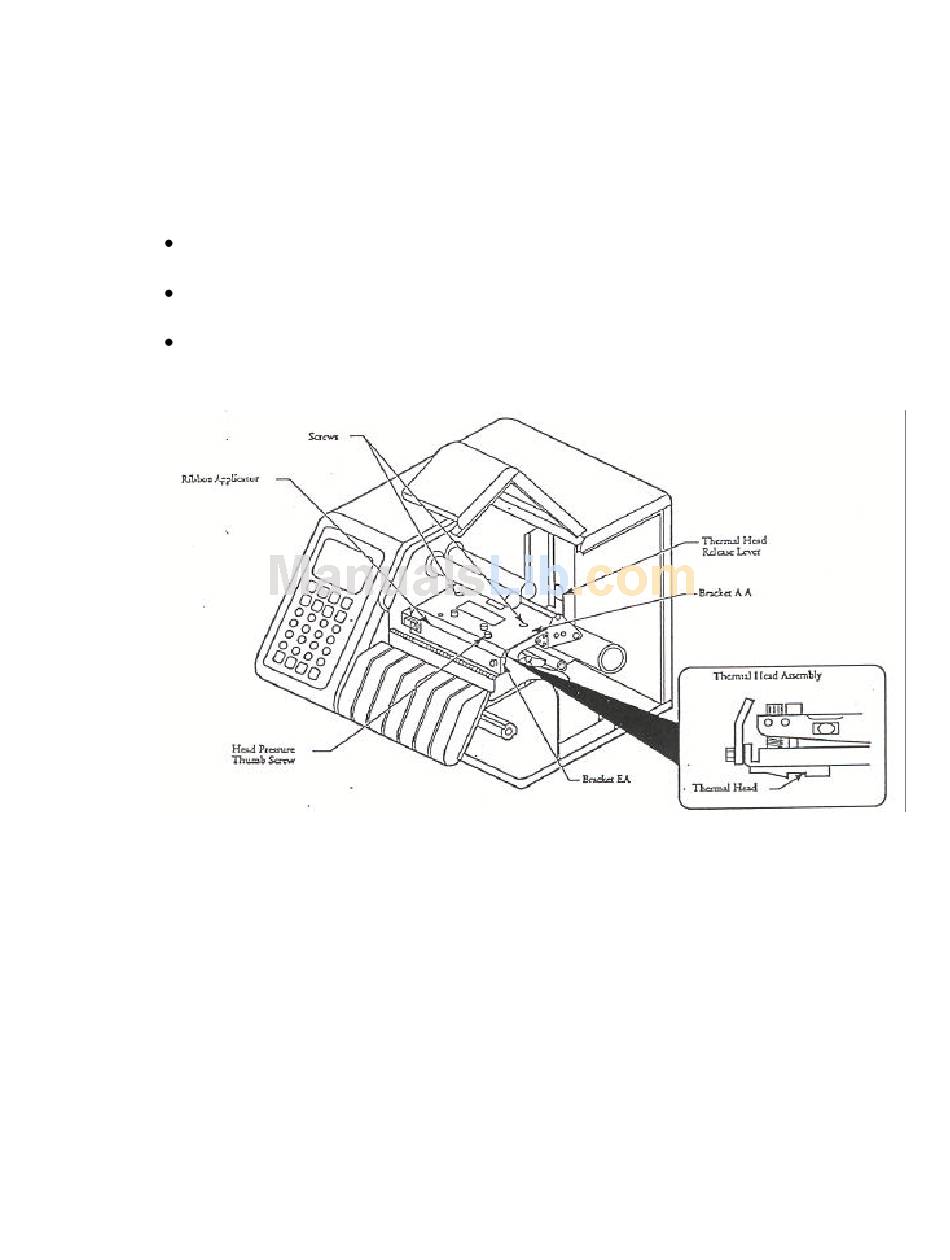

Figure 5. Thermal Head Block
