5.0 MECHANICAL ADJUSTMENTS TO THE THERMAL
HEAD
If you have encountered print quality problems on the left or right side of your labels, the
following adjustments may help.
1.
Have both a phillips and a slotted screwdriver available. The phillips screwdriver
is used for loosening and tightening screws while the slotted screwdriver is used
to adjust the position of moveable parts.
2.
Loosen phillips screw(s) slightly to allow movement which holds the adjustable
part.
3.
Use the slotted screwdriver as a wedge or fulcrum to turn or push lightly on the
part you are attempting to adjust.
4.
Once you have made the adjustment, hold the position of the adjustment while
tightening the phillips screw(s).

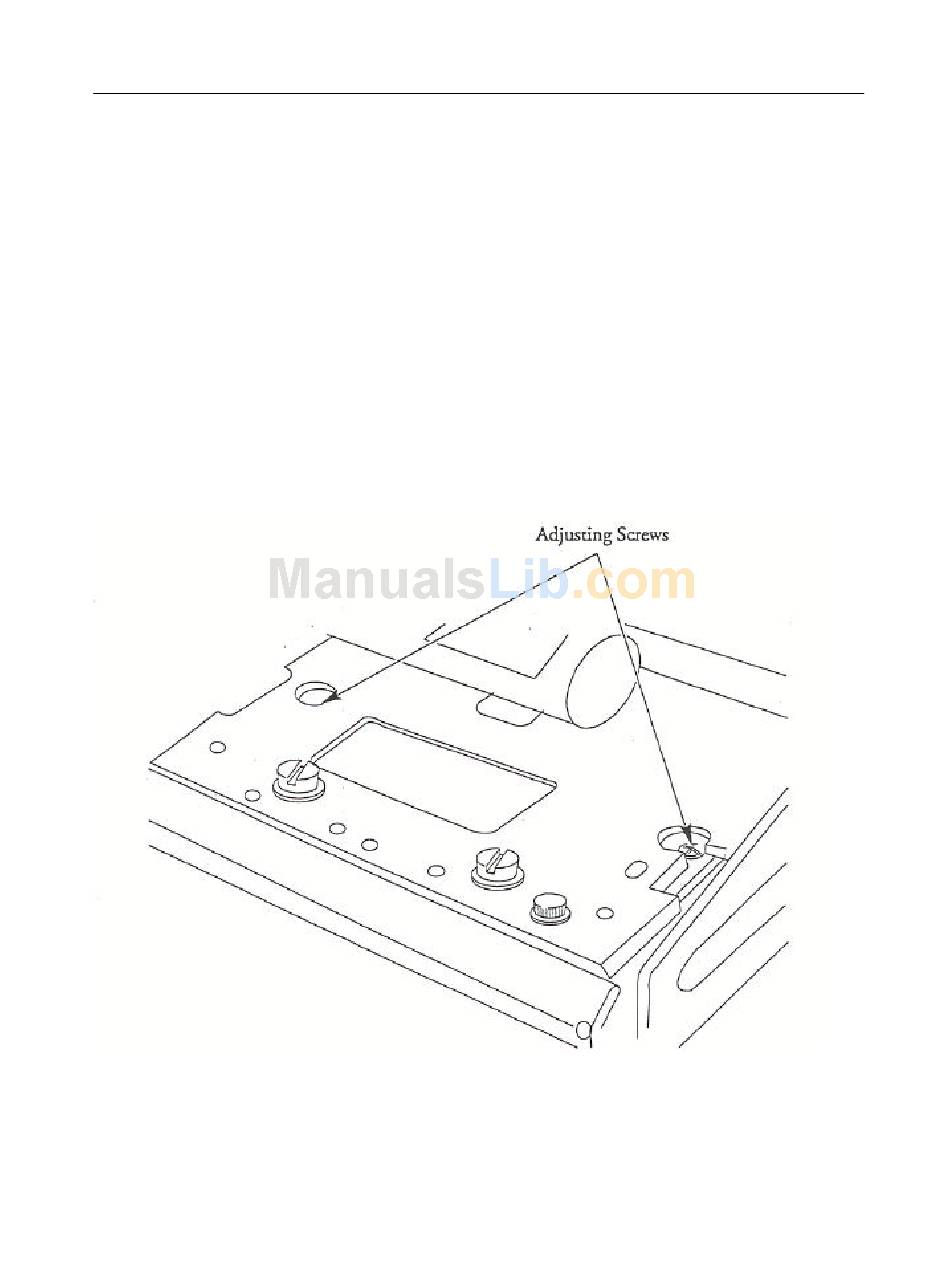

Figure 6. Mechanical Adjustment
11
