Note: Instance ID tags are case sensitive and must be entered correctly in order to function
properly. A "level block" must be used as the method of muting.

Polycom SoundStructure

When using the Base Station along with a Polycom SoundStructure, you must select the
corresponding DSP product line from the ―Serial Control Processor‖ menu in the Revolabs HD
Control Panel software. You must also set the RS-232 or Network settings of the Base Station to

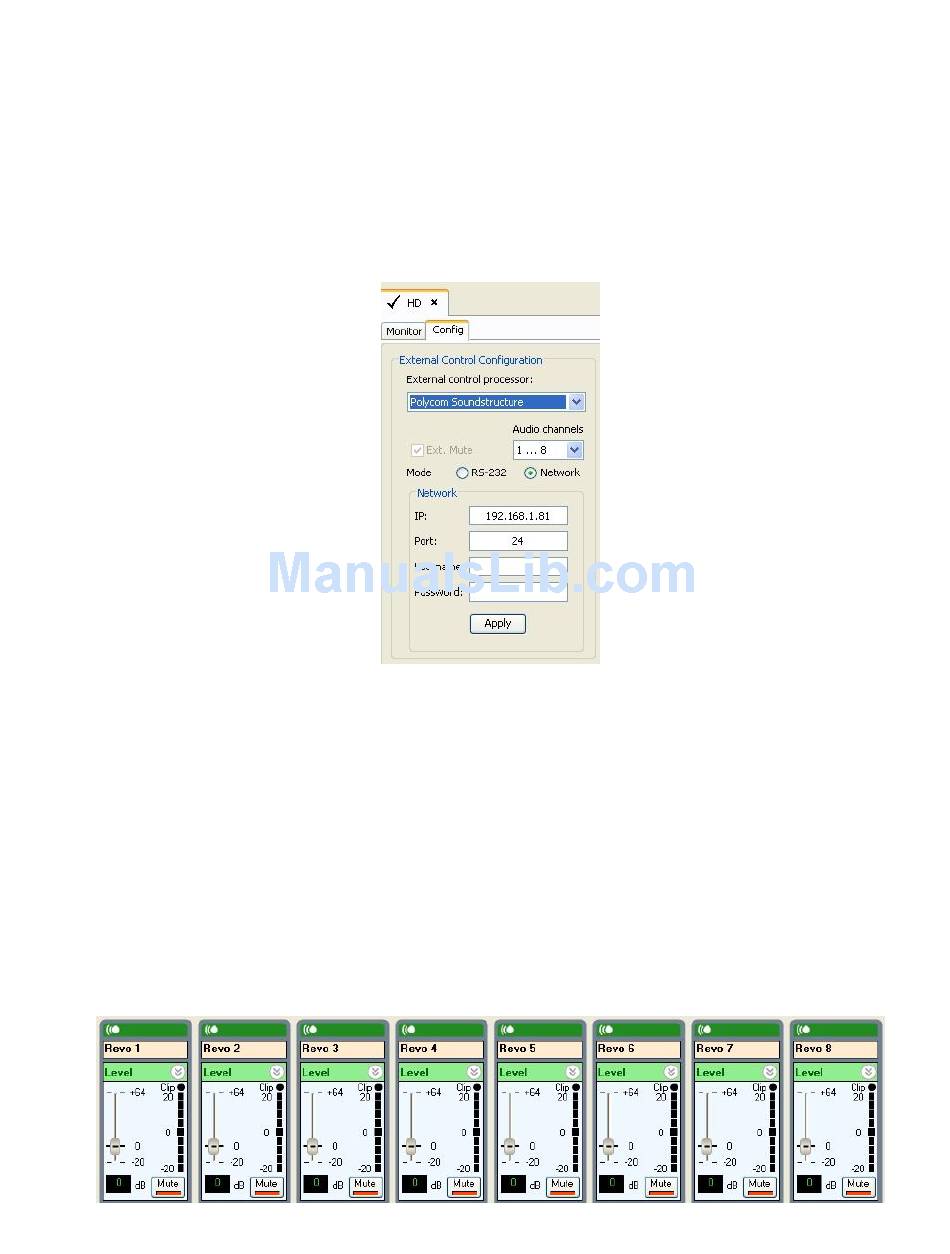

match the communication settings of the Polycom SoundStructure as well as select the ‗Audio
Channels' of the microphones that the Base Station is to simulate.(i.e. 1-8, 9-16, etc.)
Each Base station will control the mutes of each individual microphone channel, within the DSP
programming, using that channel's name. The name structure is as follows:
Channels 1-8
Channels 9-16
Channels 17-24
Channels 25-32
So for example, if you set the ‗Audio channels' range for the microphones to 1-8, in the Control Panel,
then the Base Station will use the DSP channel name of ―Revo 1‖ to control mute for the microphone
paired to channel 1 of the Base Station.
Note: Channel names are case sensitive and must be entered correctly to function properly.
Revo 1 - Revo 8
Revo 9 - Revo 16
Revo 17 - Revo 24
Revo 25 - Revo 32
