Configuration Submenu
SPG600 & SPG300 Sync Pulse Generators User Manual
If you enter an invalid option key for your instrument, the error message * BAD
OPTION KEY * appears in the display. Press the CANCEL button and then repeat
step 2.
This menu allows you to select the video standard for the output signals and
configure the output connectors. Use the up ( ) or down ( ) arrow button to scroll
through the menu. Figure 3-24 shows the Configuration submenu diagram.
Select CONFIGURATION in the System menu
: VIDEO STANDARD
NTSC
: ANALOG OUTPUT (STD)
BB :1,2,3 TEST : 4
: ANALOG OUTPUT (OPT)
BB :5,6,7 TEST : 8
: SDI OUTPUT (STD)
BLACK : 1 TEST: 2
: SDI OUTPUT (OPT)
BLACK : 3 TEST: 4
: XLR OUTPUT
AES/EBU Audio

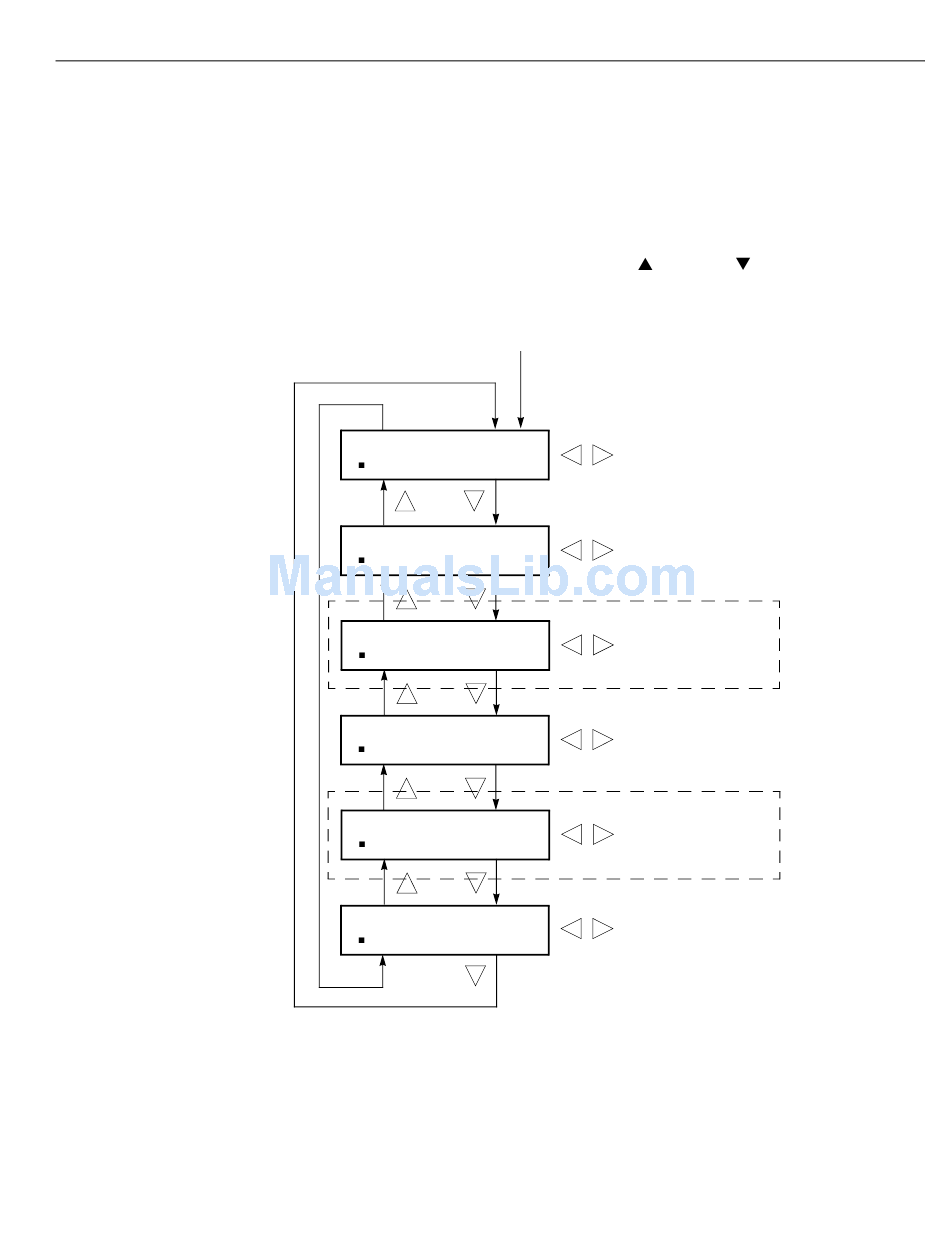

Figure 3-24: Configuration submenu diagram

NTSC
NTSC No Setup
↵
PAL
BB : 1,2,3 TEST : 4
BB : 1,2 TEST : 3,4
↵
BB : 1 TEST : 2,3,4
BB : TEST : 1,2,3,4
BB : 5,6,7 TEST : 8
BB : 5,6 TEST : 7,8
↵
BB : 5 TEST : 6,7,8
BB : TEST : 5,6,7,8
BLACK : 1 TEST : 2
↵
BLACK : TEST : 1,2
BLACK : 3 TEST : 4
↵
BLACK : TEST : 3,4
AES/EBU Audio
↵
Analog Audio
Menus
SPG600 Option 02 only
SPG600 Option 03 only
3-37
