Summary of Contents for Tektronix SPG3UP 01
Page 1

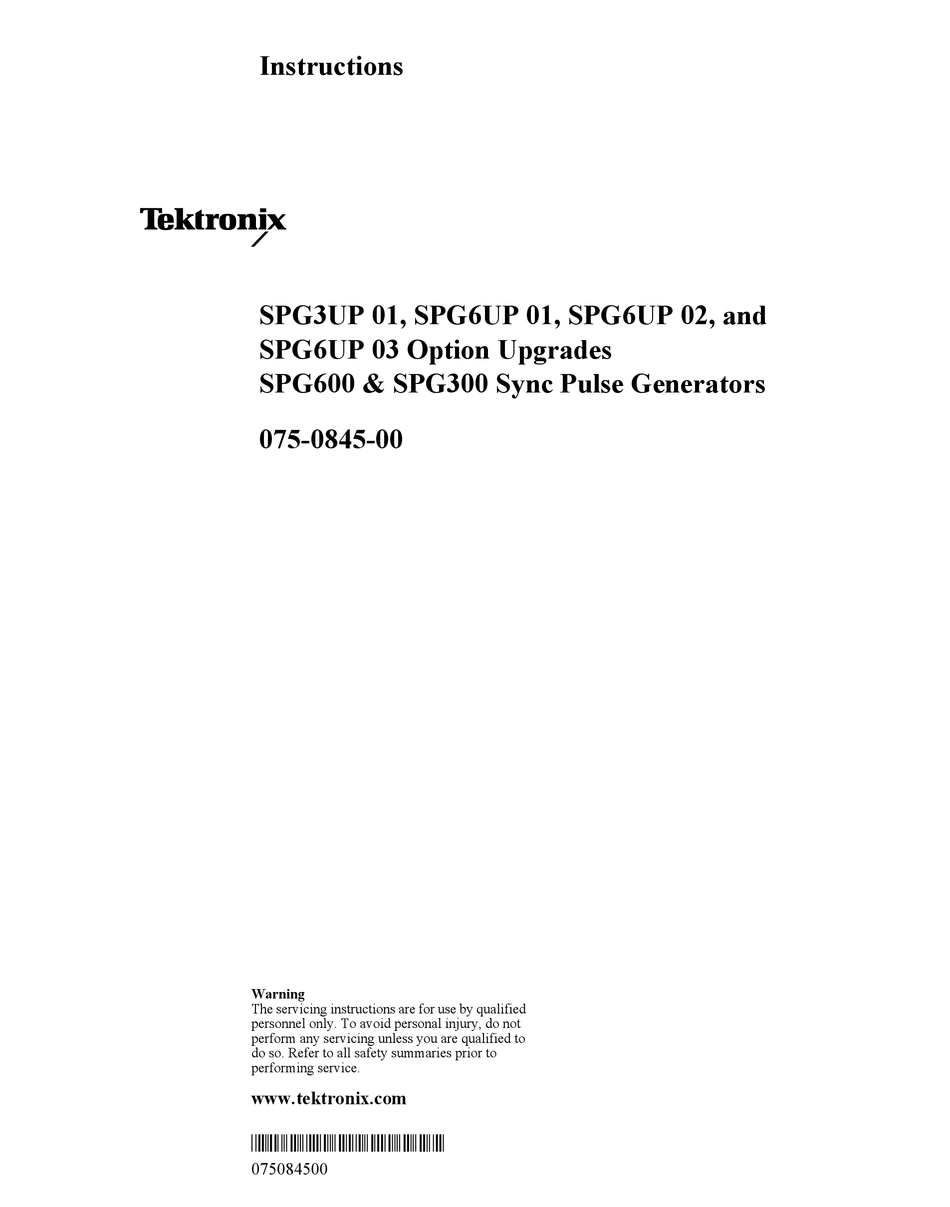

Instructions SPG3UP 01, SPG6UP 01, SPG6UP 02, and SPG6UP 03 Option Upgrades SPG600 & SPG300 Sync Pulse Generators 075-0845-00 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so.
Page 2
Copyright Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077...
Service Safety Summary Only qualified personnel should perform service procedures. Read this Service Safety Summary and the General Safety Summary in the product service manual or the user manual. Do Not Service Alone. Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present.
Option 01, Option 02, or Option 03. These instructions apply for the following upgrades: SPG3UP 01 (Option 01): adds fine timing adjustment for analog outputs to the SPG300. SPG6UP 01 (Option 01): adds fine timing adjustment for analog outputs to the SPG600.
Kit Description Kit Parts List Circuit/figure number Quantity Part number Description SPG3UP 01 and SPG6UP 01 (Option 01) ----- 1 ea DATA SHEET; OPTION KEY INFORMATION ----- 1 ea 334-1377-50 MARKER, IDENT ----- 1 ea 075-0845-XX MANUAL, TECH, INSTRUCTIONS: SPG600 &...
Always wear a grounded wrist strap, grounded foot strap, and static resistant apparel while installing this kit. Activating the Fine Timing Adjustment Feature (SPG3UP 01 and SPG6UP 01) Perform the following procedure to activate the fine timing adjustment feature for your SPG300 and SPG600: 1.
Page 8
Installation Instructions 7. SPG300: Remove the protective backing from the label marked “SPG3UP 01” and apply it to the bottom of the instrument, just beside the serial number label. SPG600: Remove the protective backing from the label marked “SPG6UP 01”...
Page 9
Installation Instructions Figure 1: Top cover removal 3. Use a screwdriver with a #1 Phillips tip to remove the two screws (M2.6 X 6) securing the blank panel to the rear panel. 4. Use a screwdriver with a #2 Phillips tip to reinstall the blank panel so that the two BNC connector holes for SDI 3 and SDI 4 are covered with the panel.
Page 10
Installation Instructions 5. Use a 5.5 mm size nut driver to install the two spacer posts to the chassis. See Figure 2. 6. Connect the one end of the flat cable provided in the kit at J610 on the A10 Main board.
Page 11
Installation Instructions Installing the 2-Channel SD-SDI Video Outputs Board (SPG6UP 03) Disconnect the power cord from the line voltage source before WARNING. installing this option. Failure to do so could cause serious injury or death. Perform the following procedure to install the 2-channel SD-SDI video outputs board into your SPG600: 1.
Page 12
After you have installed the outputs board in this kit, do the performance verification procedure for the SPG600 as described in the SPG600 & SPG300 Sync Pulse Generators Service Manual (Tektronix part number 071-1342-XX). End of document SPG600 & SPG300 Sync Pulse Generators Upgrade Kit...
