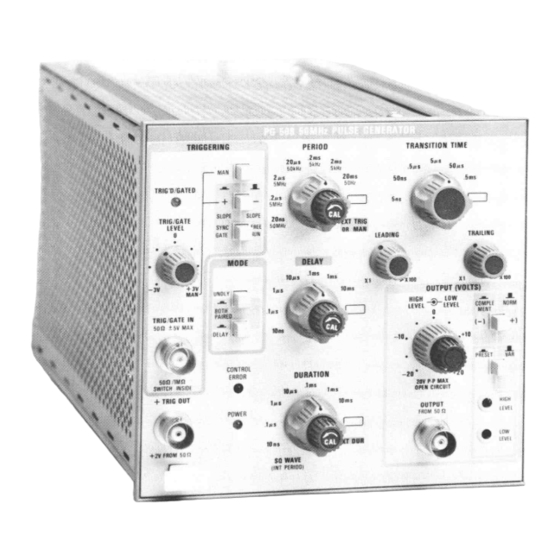

Tektronix PG 508 Technical Manual

Operator's, organizational, direct support and general support maintenance manual for pulse generator an/usm-359a
Hide thumbs Also See for PG 508:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
TECHNICAL MANUAL
OPERATOR'S, ORGANIZATIONAL,
DIRECT SUPPORT AND GENERAL
SUPPORT MAINTENANCE MANUAL
PULSE GENERATOR AN/USM-359A
(NSN 6625-01-077-4620)
(TEKTRONIX MODEL PG 508 WITH TM 503)
HEADQUARTERS, DEPARTMENT OF THE ARMY
FOR
TM 11-6625-2980-14
27 MARCH 1981
