Menus
Logo Submenu
3-14
This menu allows you to overlay and position a logo graphic on an output test
signal. Use the up ( ) or down ( ) arrow button to scroll through the menu. Figure
3-8 shows the Logo submenu diagram.
Select Logo in the Overlay submenu
: LOGO
Logo: OFF
: LOGO
X : 0.0 %APH
: LOGO
Y : 0.0 %APH
: LOGO : SAVE
Press ENTER

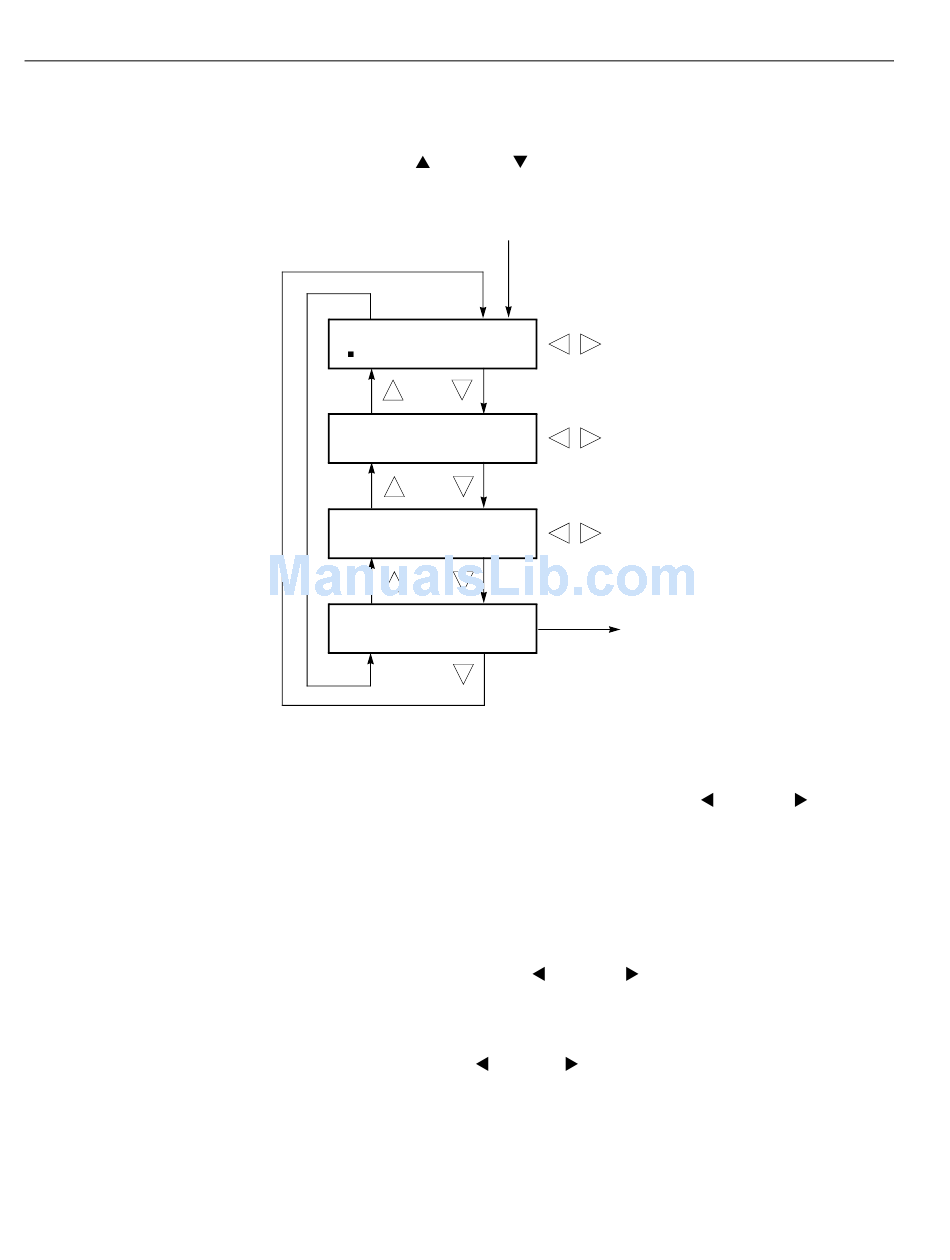

Figure 3-8: Logo submenu diagram

Logo. Selects the logo you want to display. Use the left ( ) or right ( ) arrow
button to select OFF or a logo file name. Press the ENTER button to confirm the
selection. When you select OFF, the logo overlay is disabled.
You can create a logo file using the Logo Generator application. Refer to
Appendix C: Using Logo Generator for more information.
X. Sets the horizontal position of the logo. The position is set as a percentage of
active picture width. Use the left ( ) or right ( ) arrow button to change the
position. You can set the value from -100.0% to 0.0% in 1% steps.
Y. Sets the vertical position of the logo. The position is set as a percentage of active
picture width. Use the left ( ) or right ( ) arrow button to change the position. You
can set the value from -100.0% to 0.0% in 1% steps.
SAVE. Saves the display position for the logo to a logo file. Press the ENTER
button to save the current settings.
Select OFF or a logo
↵
Set the horizontal position
Set the vertical position
ENTER
Save the display position for the logo
↵
SPG600 & SPG300 Sync Pulse Generators User Manual
