Timing (Analog) Submenu
SPG600 & SPG300 Sync Pulse Generators User Manual
Table 3-3: Selectable signals in each signal set (SDI) (cont.)
Signal set name
REC 801
* These signals are only available in SPG600 Option 03.
The contents of each signal set are subject to change without notice due to
NOTE.
continuous improvements of the instrument.
This menu allows you to adjust the timing offset of the selected analog output
relative to the genlock signal or the internal reference signal. Use the up ( ) or
down ( ) arrow button to scroll through the menu. Figure 3-5 shows the Timing
(analog) submenu diagram.
Select TIMING (ANALOG) in the VIDEO menu
TIMING : VERTICAL
0 Line (s)
TIMING : HORIZONTAL
µ
0.0000 sec
TIMING : FINE
0.0 nsec

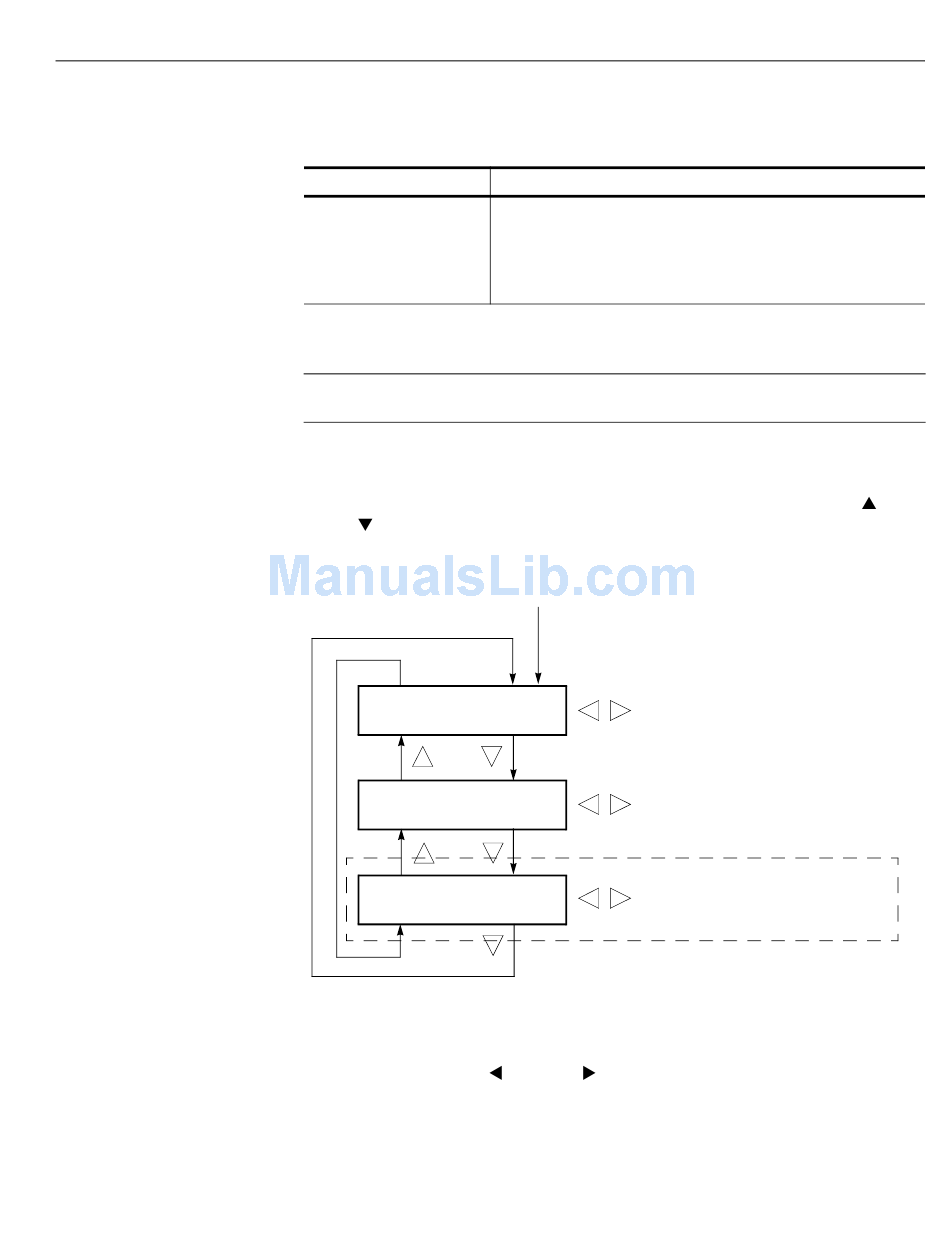

Figure 3-5: Timing (analog) submenu diagram

VERTICAL. Use the left ( ) or right ( ) arrow button to adjust the vertical offset.
The value wraps around, so when the maximum value is reached the next value is
the minimum value. The range of the timing adjustment depends on the selected
video standard. Refer to Table 3-4 for the appropriate range.
Selectable signals
100% Colour Bars, 75% Colour Bars, Black, Grey, White,
End-of-Line Pulses, Black-White Ramp, Yellow-Grey Ramp,
Grey-Blue Ramp, Cyan-Grey Ramp, Grey-Red Ramp,
Cb-Y-Cr-Y Ramp, White End-of-Line, Blue End-o- Line,
Red End-of-Line, Yellow End-of-LIne, Cyan End-of-Line
Set the vertical timing in 1 line steps
Set the horizontal timing in 1 clock steps
Set the horizontal timing in 0.1 ns steps
Menus
Option 01 only
3-11
