Intuicom RTK Bridge User Manual page 8

Internet
CDMA/GSM
GSM/CDMA
Wireless Internet /Data
RTCM 3.x
RTCM 2.x
CMR/CMR+
Leica
Spider/VRS/
NTRIP Caster

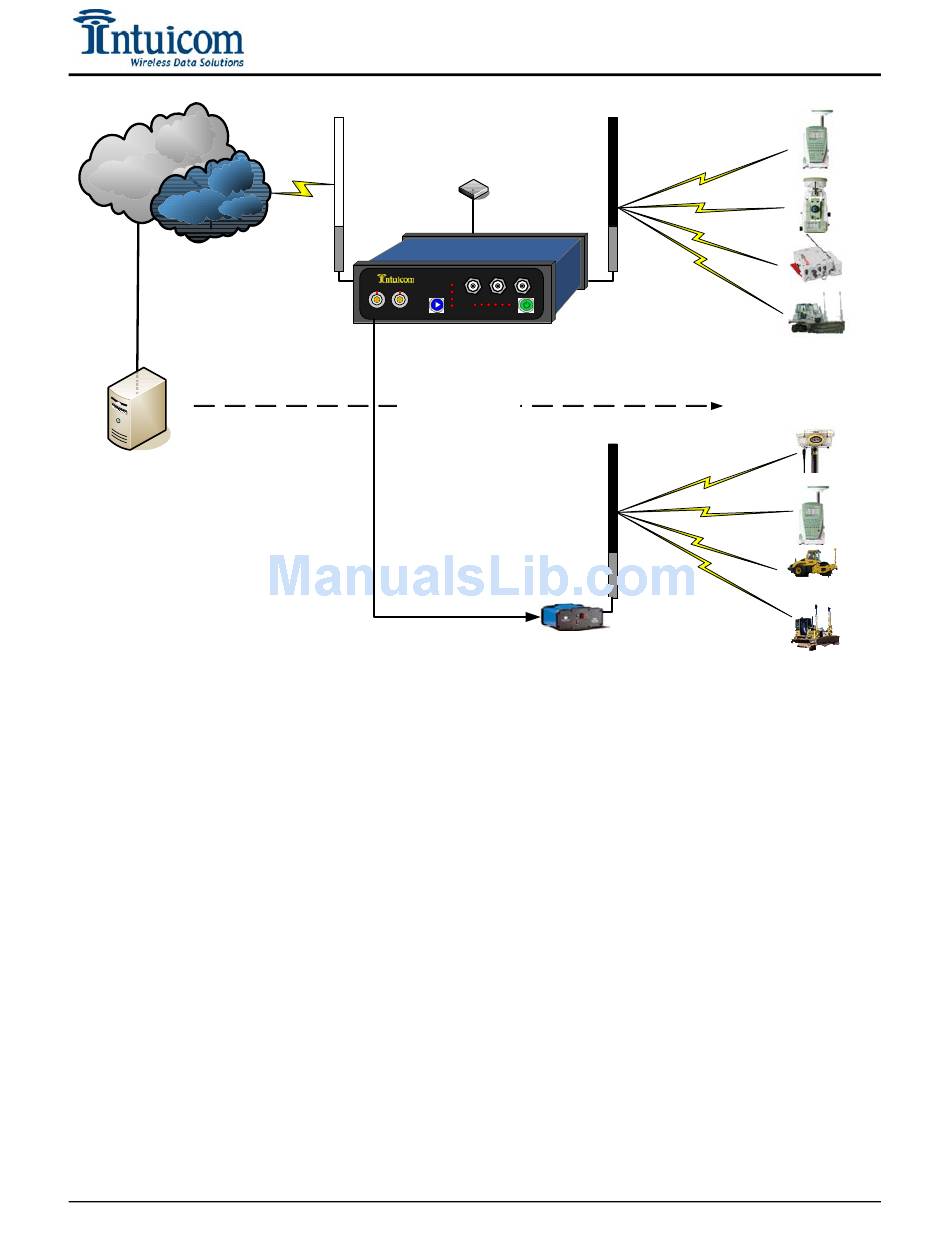

Figure 1-3: Intuicom RTK Bridge - Cellular used with third party base radio
Leveraging Existing Data Radios - The Intuicom Wireless RTK Bridge can be used to
supplement and existing wireless network, replacing the local base station GPS. Users
simply connect a third party base radio to the Data Out port on the front of the unit to
broadcast a copy of the correction stream. If no rover RTK users are utilizing Intuicom
Wireless Data Radios, the internal radio can be disabled to conserve power.
Revision 1.4
L1 GPS
Antenna
Intuicom RTK Bridge - Cellular
RTK Corrections
Optional Copy of RTK
corrections output on
Data Port
RS232 Serial
4800 -115200 Baud
4
Section 1: Overview
Intuicom 900 MHz
Spread Spectrum
Wireless Data
rd
Optional 3 Party
400 MHz Base Radio
PacCrest/Trimble/
Topcon, etc.
