3.6

Changing Profiles

The active Profile can be changed in the field without the use of a PC. At least one Profile
must be configured for operation. It is suggested to configure the Profiles in numerical order
– starting with Profile 1.
Profiles are changed in the field by pressing the blue Profile button on the front panel at the
appropriate time during the boot up process. To change Profiles, power on the unit and wait
for the currently active profile LED to flash (the profile LEDs are in a vertical column
labeled 1-4 on the front panel). Immediately upon seeing the currently active Profile LED
flash, press the blue profile button – this will result in incrementing the active profile – and
the change will be displayed by the lit Profile LED advancing. Continue to press and release
the blue Profile button until the desired Profile is selected. The unit will timeout waiting for
further changes, then reboot and re-configure for the newly selected active Profile.
The selected active Profile must have been properly configured before being selected. For
information about how to configure the parameters for each individual Profile, see Section
2.3.
Example: A user has two Profiles configured. Each profile is basically the same with
regard to the GNSS network server, and login credentials – the Profiles differ in the
NTRIP mountpoint names. The user wants to be able to switch from an RTCM 3
correction to a Leica message from a specific reference station. The user can change the
RTK Bridge to use the different profile, and change the rover configuration to accept the
different correction message type.
Revision 1.4

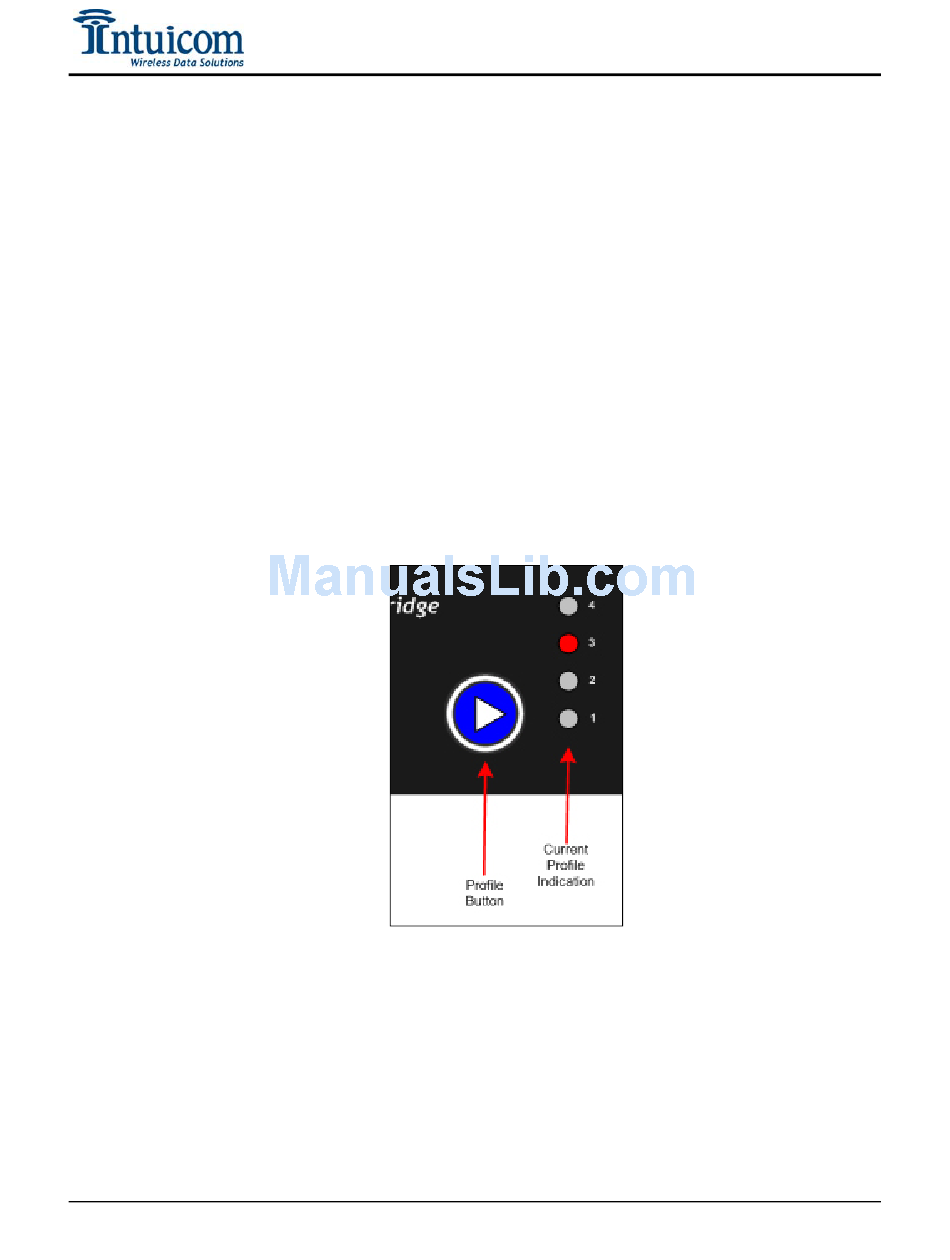

Figure 3-8: Changing the active profile on the front panel
33
Section 3: Operation
