Example Applications - Intuicom RTK Bridge User Manual

1.3

Example Applications

Internet
CDMA/GSM
RTCM 3.x
GSM/CDMA
RTCM 2.x
Wireless Internet/Data
CMR/CMR+
Leica
Spider/VRS/
NTRIP Caster

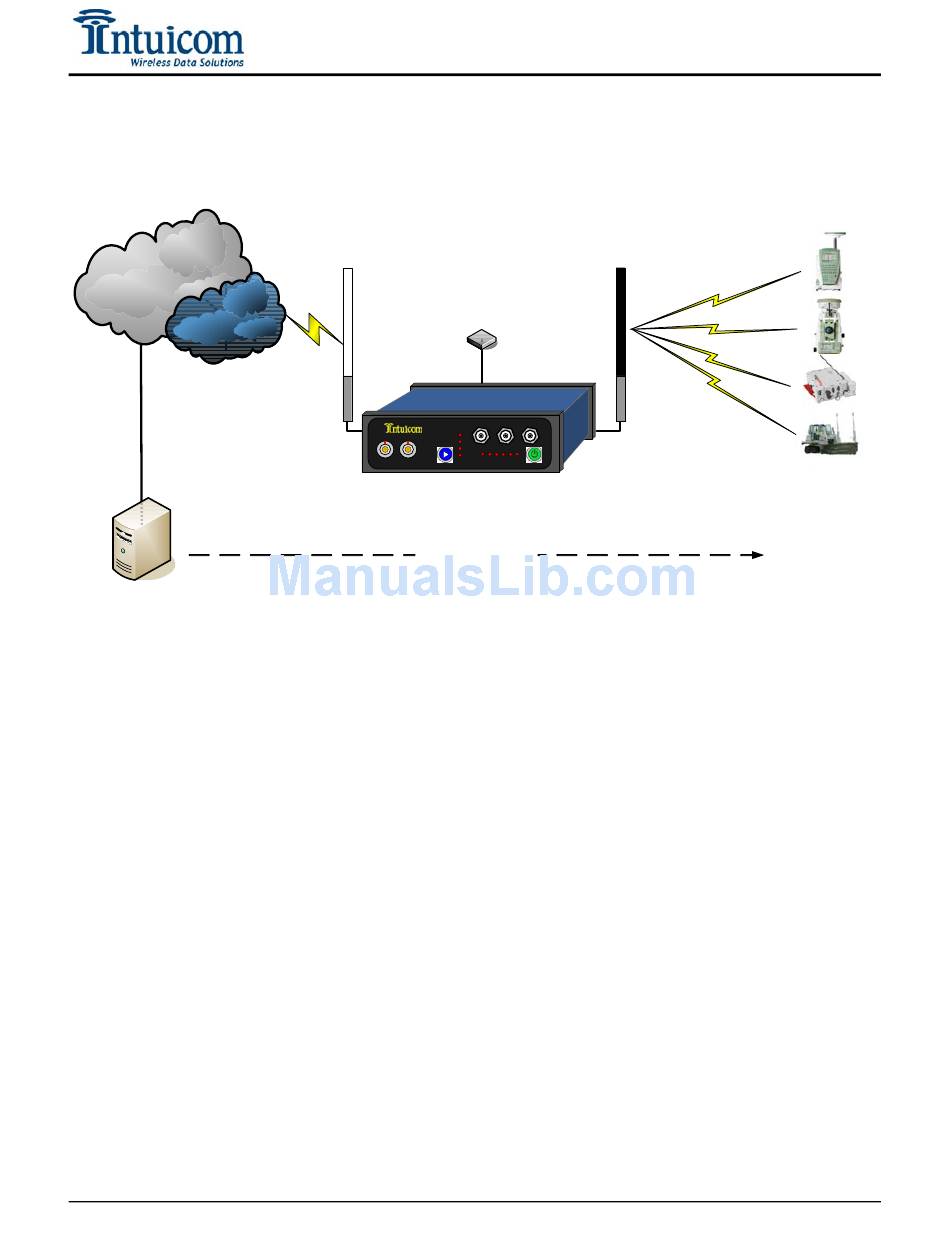

Figure 1-2: Intuicom Wireless RTK Bridge - Cellular Architecture Overview
Typical Application - The Intuicom Wireless RTK Bridge has a flexible configuration
and can be used to satisfy a range of connectivity needs. Typical installations have the
RTK Bridge configured to connect to an NTRIP Caster where it provides mountpoint and
authentication information. Once connected to a mountpoint, it will stream its GPS point
position (from its internal L1 GPS) allowing the Network Correction Server (such as
Leica Spider) to generate individualized corrections or create a virtual reference station.
The unit receives these corrections via IP and then broadcasts them to receiving RTK
rover units.
