Section 2: Initialization and Configuration
NTRIP Mountpoint – If using NTRIP connection mode, specify the mountpoint (correction
stream) to connect to. Typcially the mountpoint will have been provided along with the IP
address and the TCP port for the GNSS network server. This parameter has no effect if the
connection mode is set to RAW.
Authentication – Specify whether authentication is required for connecting to the GNSS
network server – if so, enter the username and password. Be carefully to enter the username
and password exactly as provided – capitalization typically matters. It can be important to
note that the GNSS server may or may not be configured to allow simultaneous logins with a
given username/password combination – you may need a separate username and password
for each RTK Bridge.
Positioning – When connected to an NTRIP mountpoint, or RAW socket/port, the RTK
Bridge - Cellular can provide a position (GGA NMEA string). A position is often required
for the GNSS network server to be able to generate a stream of network RTK corrections
specific for the user's location. In most cases the distance between the RTK Bridge's GPS
antenna and the rover user(s) position is both not great, and not significant in generating the
correction stream. In cases where the rover uses are a significant distance from the RTK
Bridge, a position may be manually entered, and this manually entered position can be sent
instead of the real-time position from the GPS receiver embedded in the RTK Bridge unit.
Specify whether the position to be sent is RealTime (from the embedded GPS) , Static (from
the manually entered position) or Data Port, to forward GGS strings sent to the unit on the
data port. To send no position, select Disabled.

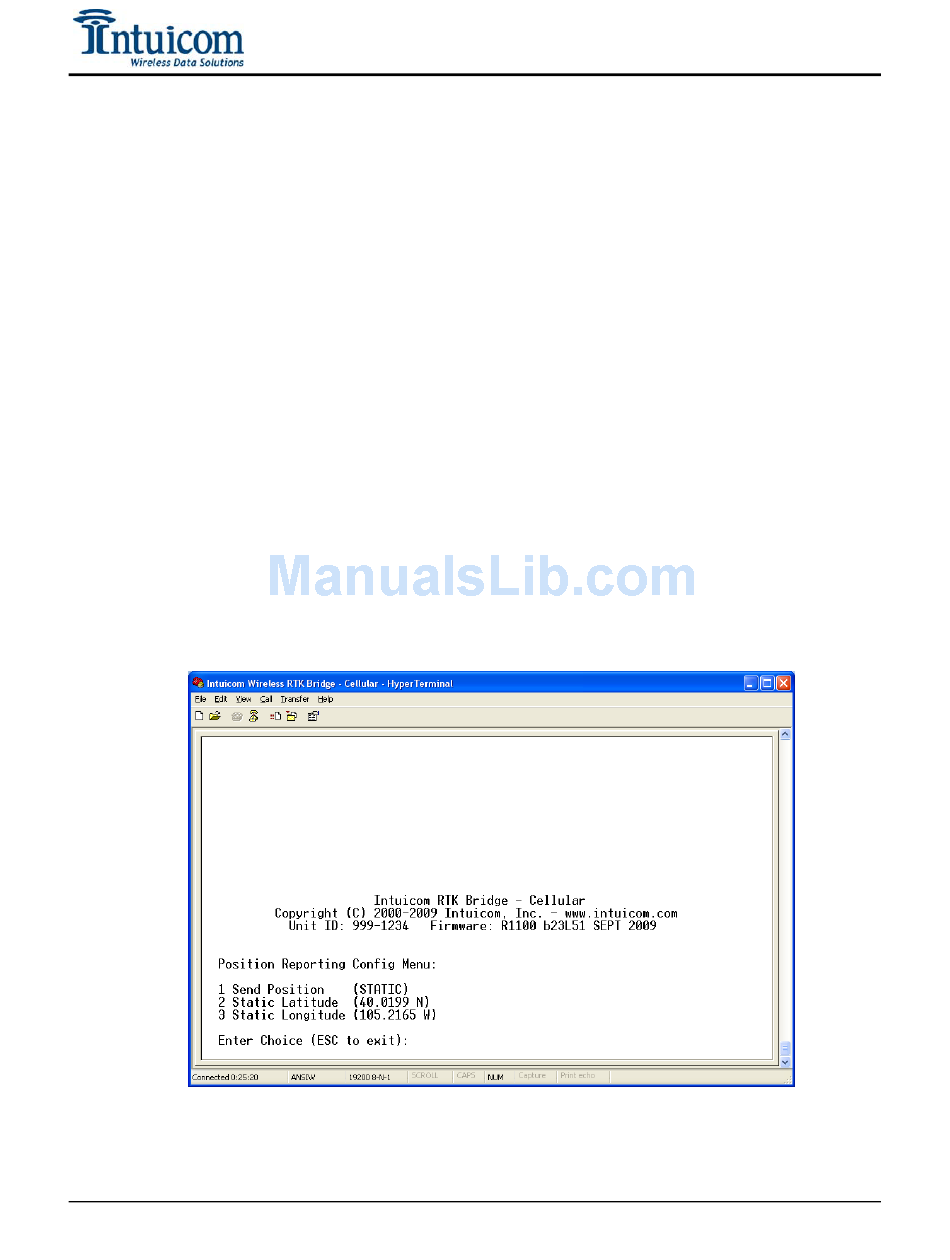

Figure 2-11: Positioning Configuration Menu
