3.3

Front Panel LEDs

There are eleven red LEDs visible on the front panel (5) and (4).
PWR – When illuminated indicates that the unit is powered and has been turned on.
GPS:
LED
Solid Red
Flashing Red
SIG:
LED
Solid Red
Flashing Red
Revision 1.4

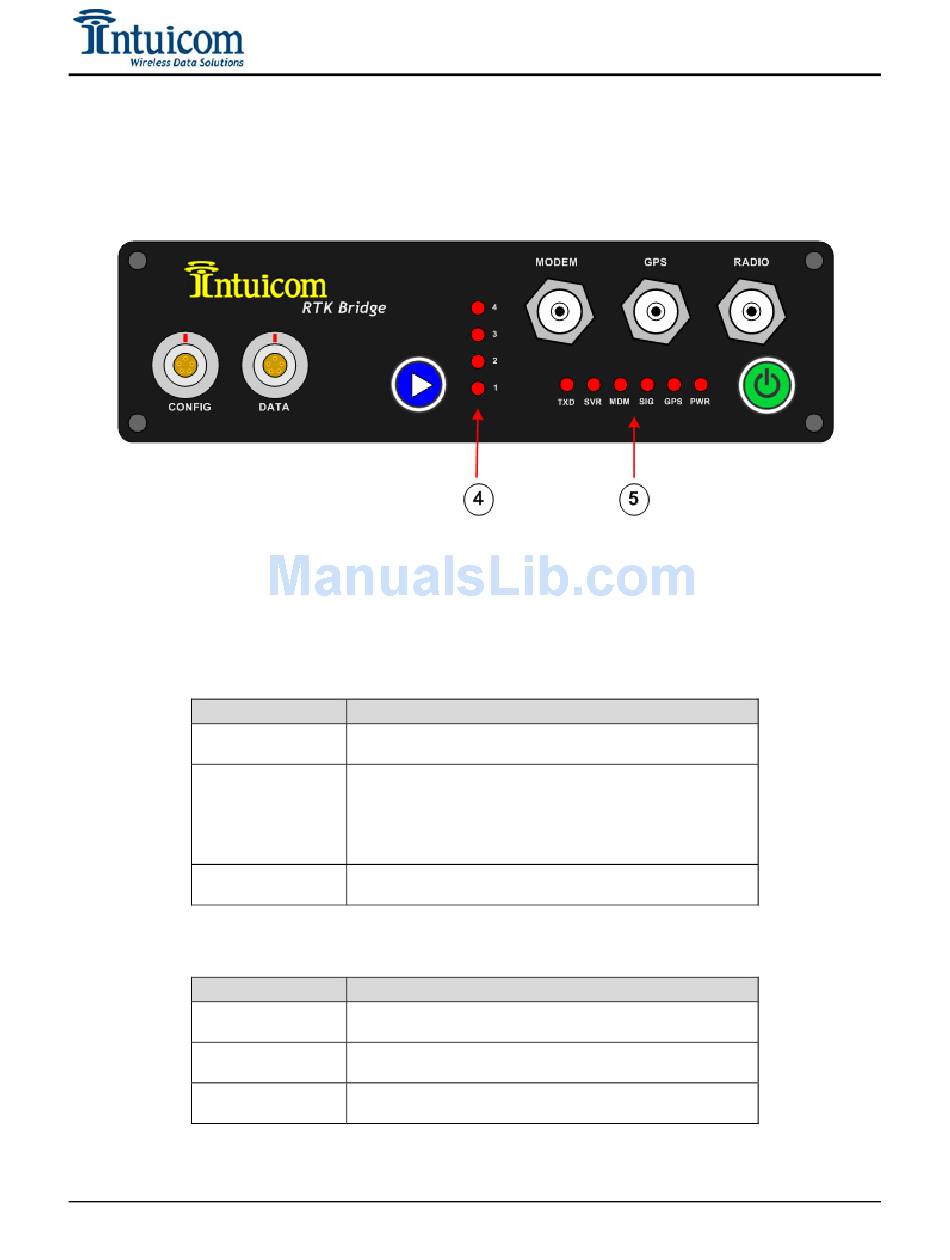

Figure 3-4: RTK Bridge - Cellular Front Panel
Internal GPS is selected for use in the current Profile
and is tracking
Internal GPS is selected for use in the current Profile,
and the GPS is not tracking or Data Port is selected to
receive GGA messages from an external GPS and either
these messages are not being received, or the external
GPS is not tracking.
Either a Static position has been selected or the sending
Off
of a GPS position to the server is disabled.
Indicates a strong cellular signal as sampled during the
power-up/boot-up stage
Indicates a marginal cellular signal – communication
may or may not be possible.
Indicates a very weak or absent cellular signal – it is
Off
very unlikely communications will be possible.
DESCRIPTION
DESCRIPTION
28
Section 3: Operation
