4. Connect to Data Port for copy of correction stream (optional) – If copies of the
correction are to be broadcast using an external third-party base radio, connect the
included Power/Data cable can be used. A null modem or gender changer may be
required. Intuicom manufactures dedicated cables for connections to some external
radios, eliminating the need to connect DB9 ends together. It is also possible to connect
directly to an RTK Rover GPS for testing.
5. Connect Power – Power can be applied to either the Config or the Data port but not both
– be sure power is only being applied to one port. Power is applied using the power only
cable, the power pigtail on the power/data cable, or the power pigtail from one of the
RTK Bridge to external radio cables. CAUTION: Only apply power from one source!
Connect 10-24 VDC power to the front panel using the included power adapter or using
the optional power pigtail. Power could be supplied from an AC adapter, a battery or a
car cigarette lighter adapter.
6. To power on the unit, press and hold green power button (Labeled 6 in Figure 3-1) until
the PWR LED lights red.
Revision 1.4

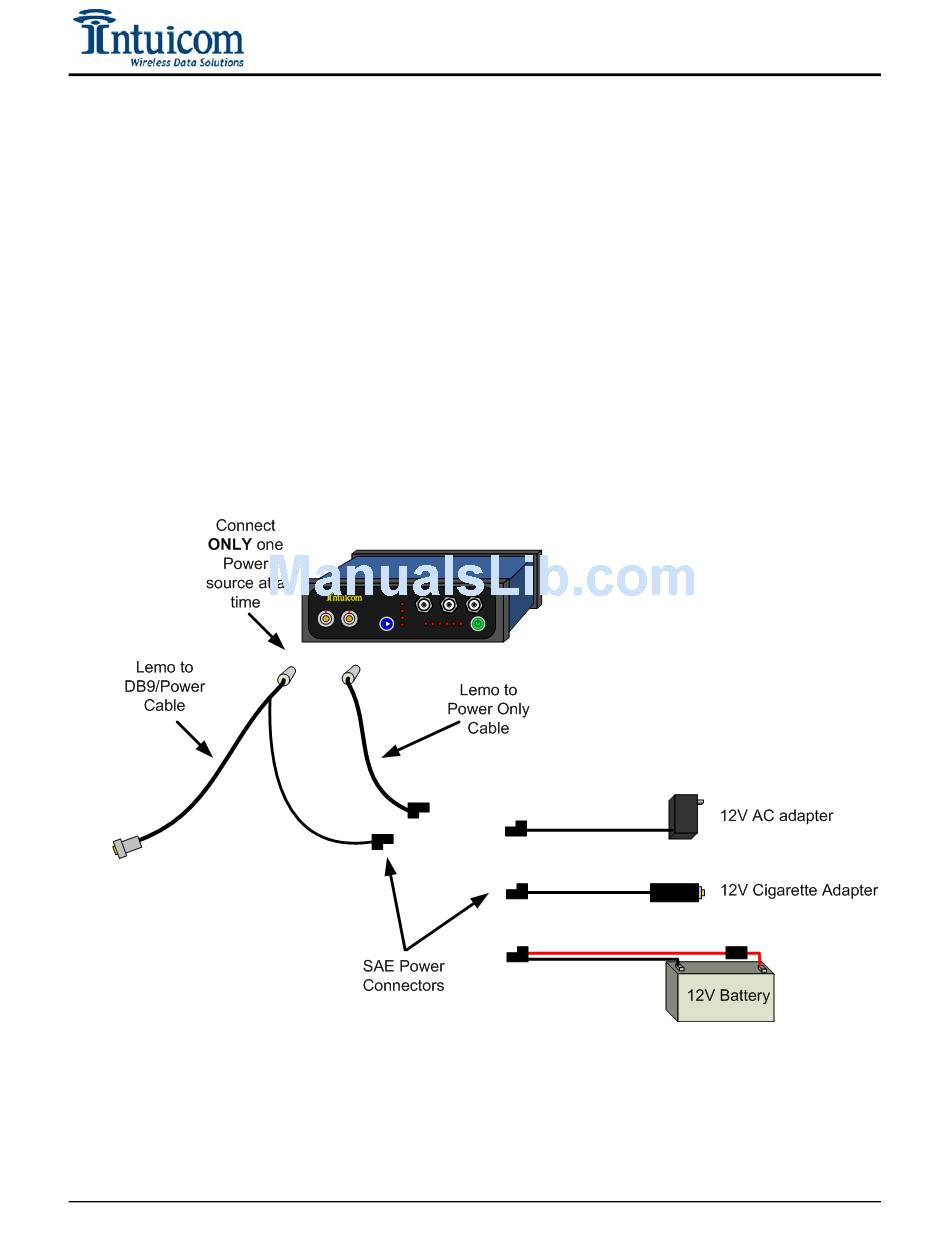

Figure 3-2: Power Connection options for the RTK Bridge
25
