Intuicom RTK Bridge-X Installation Manual

Integration with: trimble xcn-2050
Hide thumbs Also See for RTK Bridge-X:

Advertisement

Quick Links

Download this manual See also: Installation Manual

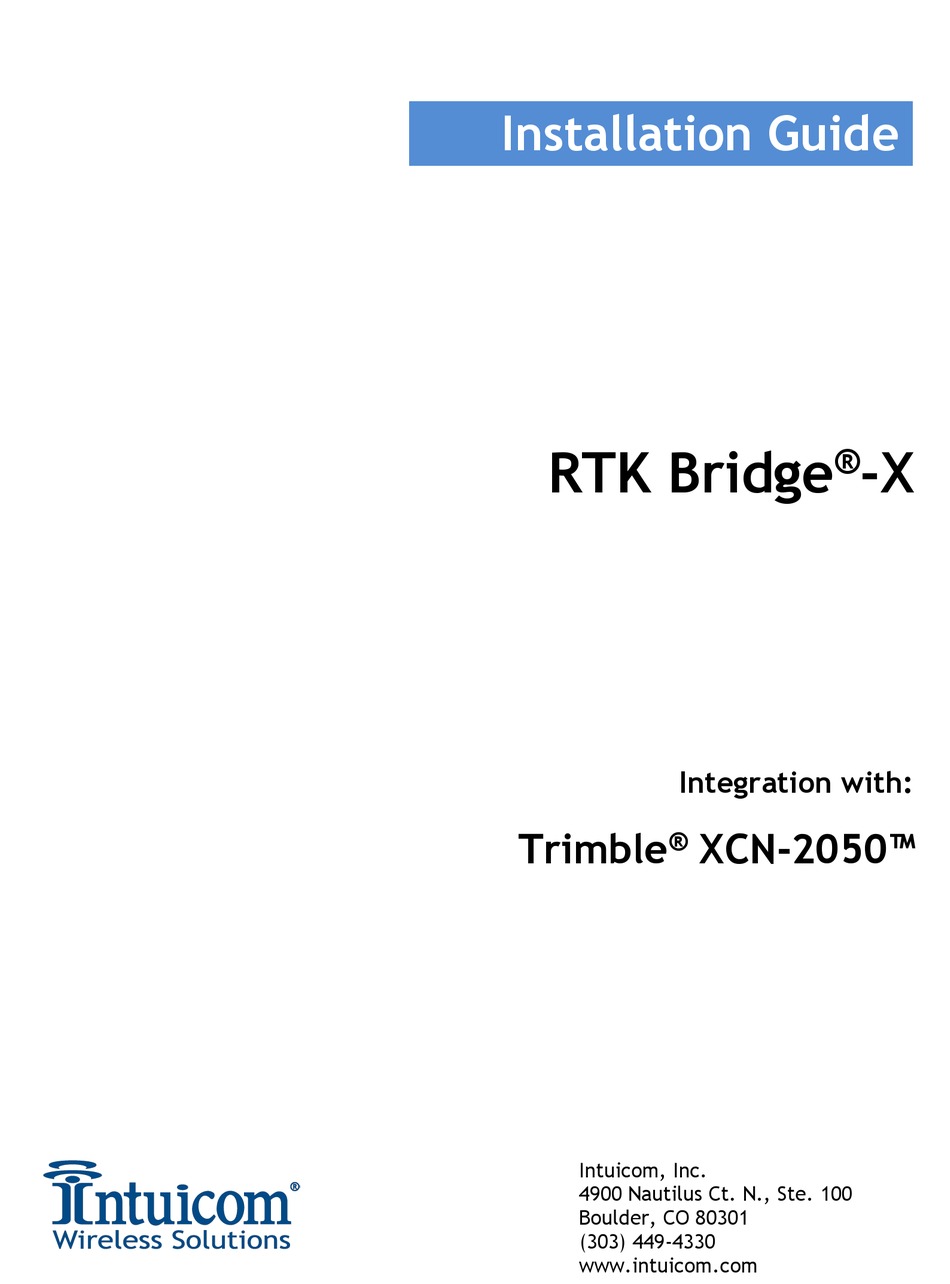

Installation Guide
®
RTK Bridge
-X
Integration with:
Trimble
®
XCN-2050™
Intuicom, Inc.
4900 Nautilus Ct. N., Ste. 100
Boulder, CO 80301
(303) 449-4330
www.intuicom.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTK Bridge-X and is the answer not in the manual?

Questions and answers

Related Manuals for Intuicom RTK Bridge-X

Summary of Contents for Intuicom RTK Bridge-X

  • Page 1 Installation Guide ® RTK Bridge Integration with: Trimble ® XCN-2050™ Intuicom, Inc. 4900 Nautilus Ct. N., Ste. 100 Boulder, CO 80301 (303) 449-4330 www.intuicom.com...
  • Page 2 Intuicom reserves the right to make changes to this document without notice. Unless otherwise agreed to in writing, Intuicom assumes no responsibility or liability for the use of this document or for the infringement of any copyright or other proprietary right and Intuicom shall deem nothing contained in this document a warranty or guarantee.

  • Page 3: Requirements For Installation

    –X, you are required to have the necessary ® In order to operate an Intuicom RTK Bridge information to access and log in to the Real-Time Network. This information is entered –X and stored in a profile. More details on setting up an RTK ®...

  • Page 4: Installation Instructions

    Section 2: Installation Instructions 2 Installation Instructions Below (Diagram 1) are the components for the recommended installation of the Intuicom RTK –X utilizing the equipment noted above. ® Bridge Diagram 1 Configuration  Configure the Intuicom RTK Bridge –X to connect to GPS/GNSS Reference ®...
  • Page 5 Power Ground Brown Signal Ground Deutsch connector (DTM06-12S) pinout  Using the Intuicom RTK Bridge –X to XCN-2050 data/power cable (XRTKCAB- ® –X data port/Bluetooth Receiver to the EXP-100 port ® DD6), connect the RTK Bridge expander that is connected to the TM200 receiver.
  • Page 6 Section 2: Installation Instructions  Open the FM-1000+ [FmX Plus] app to configure the RTK options.  Select the Settings tab, Version 1.0 Intuicom, Inc.
  • Page 7 Section 2: Installation Instructions  Then select System [System] from the left column, then click-on Setup on the upper- right.  Enter the Administration Password (assigned by Trimble) to setup the RTK Configuration (if prompted). Version 1.0 Intuicom, Inc.
  • Page 8  Go to the second field on the right side of the screen below titled, “Receiver EXP- 100”. In the drop-down menu to its Right, you will discover that the Receiver’s Serial number has been pre-populated in the drop-down menu. Select the Serial number present and click on OK. Version 1.0 Intuicom, Inc.
  • Page 9 Section 2: Installation Instructions  Click on OK to exit back to the Configuration page, below.  Click on OK again to return to the Configuration page below Version 1.0 Intuicom, Inc.
  • Page 10 Section 2: Installation Instructions  Select GPS Receiver from the left column, and then click on Setup in the upper-right.  The default setting for the corrections will be Autonomous .  Version 1.0 Intuicom, Inc.
  • Page 11 Installation Guide, Ag25 was used. Now click OK on the lower-right to confirm your settings. NOTE: Using the RTK Bridge®-X, you do not require the use of an external radio so simply click on OK if the following screen appears. Version 1.0 Intuicom, Inc.
  • Page 12  Click on GPS Receiver from the left column, then click on the Diagnostics to the right to configure the EXP-100 for Port D.  On the Autopilot GPS Status page, click on AgRemote, in the lower-left corner. Version 1.0 Intuicom, Inc.
  • Page 13  In AgRemote, click on the right arrow (>) to get to the Configure screen. Now click on the down arrow (v) to Enter your selection.  Click on the right arrow (>) to get to Port D Config and confirm your selection by clicking on the down arrow (v). Version 1.0 Intuicom, Inc.
  • Page 14  Using the right arrow (>) again, scroll over to the ‘T’ in TSIP visible on the screen.  Using the down arrow (v), change the setting to None.  Press the ( ) button to save your settings, the cursor will disappear. Version 1.0 Intuicom, Inc.
  • Page 15 Section 2: Installation Instructions  When the cursor stops blinking press the up arrow (^), to get to the screen below. Press the ( ) to return to the Port D Config screen. Version 1.0 Intuicom, Inc.
  • Page 16 Section 2: Installation Instructions  Using the left arrow (<), scroll through the screens until you get to the following screen.  Press the up arrow (^), to return to the Configuration screen. Version 1.0 Intuicom, Inc.
  • Page 17 The ‘R’ in the top line indicates whether your RTK correction is fixed or floating. A capital ‘R’ indicates an RTK Fix; and a lower case ‘r’ indicates RTK Float. Your Trimble XCN-2050 is now configured and integrated for use with your Intuicom RTK ®...
