rather use a single length for each of the two hydraulic hoses that will run through them. The goal is to
provide an easy route for each of the two 3/8" hydraulic hoses — a route free of obstructions and unlike-
ly to bind. The hydraulic hoses may run on the surface outside the 1" poly pipe, but care must be taken
not to damage them. It is always best to use the 1" poly pipe provided as it protects the hydraulic hoses
from chafing as well as UV damage. The 1" poly pipe is chosen because of its slipperiness and the ease
with which the 3/8" hydraulic hose slides through it. At the same time, this 1" poly pipe can be easily
kinked which will make it difficult to slide the hydraulic hoses through later.
When planning for these two runs of 1" poly pipe, recognize that they penetrate the pool wall 1-1/2"
above the waterline and as a consequence will be flooded if the water level rises to that point. We
strongly recommend that the 1" poly pipe rise to a point above which the water level will never
rise to avoid any potential flooding. This can be done during the 1" poly pipe run or back near the
Power Unit. Tighten the bracket liquid-tite fittings so that the 1" poly pipe is squeezed and water cannot
leak around the 1" poly pipe.
If you are concerned about subsidence and/or kinking, you may prefer to use a heavier 1-1/2" double run
of PVC flex pipe. To accomplish this, simply substitute the two couplings provided with the two (2) liq-
uid-tite fittings threaded into the PVC bracket, apply Teflon Tape to the couplings, and glue in the 1-1/2"
PVC flex pipe (refer to Photo 4.A.2).

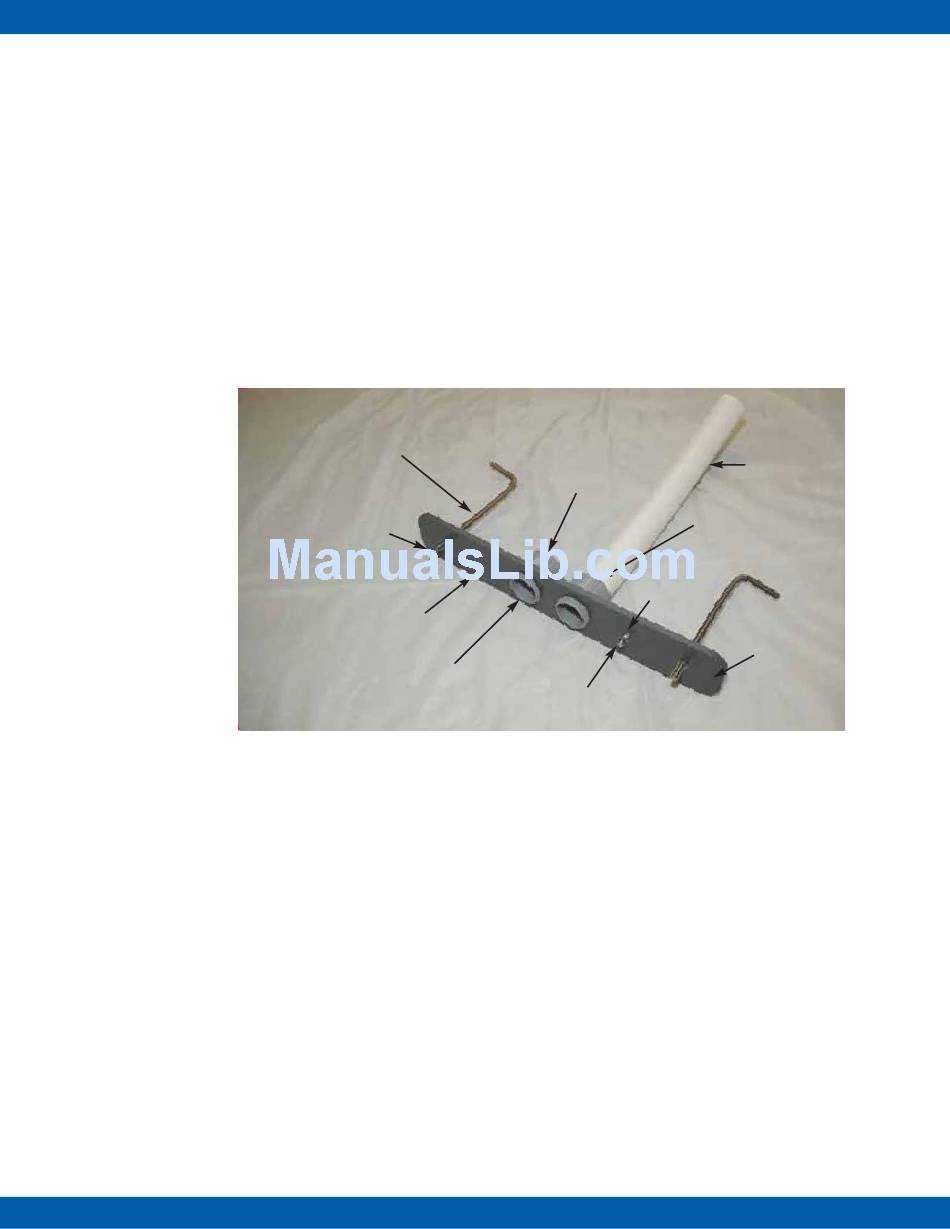

3/8" Stainless Steel
Mounting Rod. Firmly secure
these rods to the rebar grid.
Hang and secure Fastlane
on these SS threaded rods.
Wall Mount Fastlane Bracket.
Install this side flush with the
finished pool surface.
Cover PVC end with duct tape
to prevent gunite from clogging
the PVC.
Photo 4.A.2
NOTE: The pool builder/installer must decide if they will be using 1" poly pipe or 1-1/2" PVC flex
pipe BEFORE spraying gunite. Once the 1" poly pipe or 1-1/2" PVC flex pipe has been run, cut, and
trenched, the gunite can be sprayed.
If installing the provided 1" poly pipe (standard installation), the Wall Mount Fastlane ships with two
(2) 24' 6" rolls of 1" poly pipe. From the rear side of the pool, feed each 1" poly pipe into the liquid-tite fit-
tings and tighten the cord grip on the 1" poly pipe so that no water will pass between the 1" poly pipe and
the liquid-tite fitting. Unroll the 1" poly pipe to the location where the Power Unit will be located. The 1"
poly pipe is 6" shorter than the standard length of hydraulic hoses provided. As you run the 1" poly pipe, be
certain it does not kink. To ensure you have sufficient lengths of hydraulic hoses to make the necessary con-
nections to the Power Unit, cut off approximately 3' of each 1" poly pipe. The 1" poly pipe will need to exit
the ground near the Power Unit. If you find the 1" poly pipe is not long enough to reach the Power Unit, a
junction box and additional hydraulic hoses will need to be ordered and installed. In this case, DO NOT
CUT the length of the 1" poly pipe. Refer to Section 5 for additional information.
If installing the 1-1/2" PVC flex pipe, remove the two (2) 1-1/4" liquid-tite fittings from the wall mount
bracket. Thread and adhere with Teflon tape the two (2) 1-1/2" NPT male/slip female PVC fittings into the
wall mount bracket. Unroll the 1-1/2" PVC flex pipe from the wall mount bracket to the Power Unit. The
PVC flex pipe should exit the ground near the Power Unit. Each section of the PVC flex pipe should be no
longer than 21 feet. This will leave enough hydraulic hose to connect to the Power Unit. If you find that 21
feet of the PVC flex pipe is not long enough to reach the Power Unit, a junction box and additional
hydraulic hoses will need to be ordered and installed. Refer to Section 5 for additional information.
F a s t l a n e
These 1-1/2" couplings may
be used if you choose to use
1-1/2" PVC flex pipe rather
than the 1" poly pipe as your
conduit to the Power Unit
and junction box.
Bonding
Lug Set
Attach SS bonding wire from
inside the Fastlane housing to
the bonding lug.
S w i m U n i t I n s t a l l a t i o n
®
Example of 1-1/2"
PVC Flex Pipe
1-1/2" NPT male/slip female
PVC fitting
Bracket Plate
