Section 6 INSTALLATION AND TESTING OF THE HYDRAULIC POWER UNIT
Turn the circuit breaker for the Power Unit OFF. Secure the test caps to the low and high pressure
6.5
connections on the Power Unit. Remove the oil filter by lifting it out of the fill opening. Fill the Power
Unit with the approximately four (4) gallons of hydraulic fluid provided. (The fill cap is at the low pres-
sure fitting.) Once filled with oil, replace the oil filter and cap and press firmly to ensure proper seating
of the filter. Do not run unit without test caps being installed. Turn circuit breaker on. Install antenna
and briefly test the Power Unit operation using the remote control. Note: Continued operation with the
test plugs installed may result in overheating the Power Unit.
Section 7

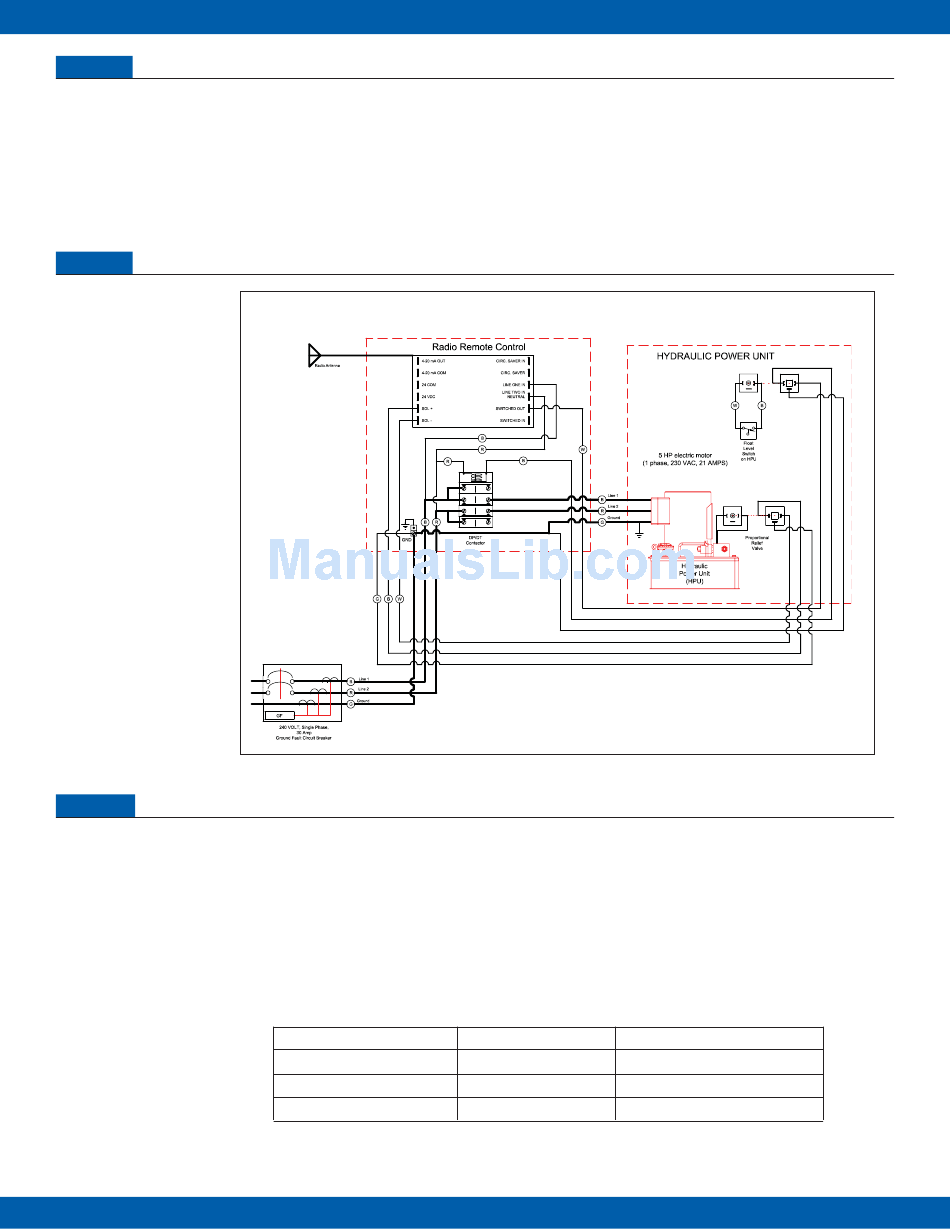

POWER UNIT ELECTRICAL WIRING

Section 8

ELECTRICAL REQUIREMENTS FOR UK AND OTHER INTERNATIONAL COUNTRIES

The unique design of the Fastlane facilitates sales to UK and international customers. The Fastlane is
shipped in kit form for easy assembly and installation into any new conventional pool following the
detailed instructions provided.
The Fastlane is ETL marked and CE listed.
The Power Unit circuit must be RCD (GFI) protected. The MCB (breaker) that operates the
hydraulic Power Unit should be Ç-type or motor-rated.
United States wire color-coding is different than international color-coding. The following chart identi-
fies the color-coding used in the United States as it relates to the wire type. In addition, the wires of the
controller have a short, colored sleeve wrapped around them to conform to the international color codes.
Should you have any questions, please call the Customer Service Department at 0800-028-1056 (UK
Only), 610-497-4538 (Direct), or email us at poolhelp@endlesspools.com.
Power Unit Electrical Wiring
US Wiring Color
Black, Red, or Blue
White
Green
F a s t l a n e
Wire Type Wire Sleeve Color
Live or Hot
Neutral
Ground Yellow with Green Stripe
S w i m U n i t I n s t a l l a t i o n
®
Brown
Blue
