NOTE: Two (2) 1-1/2" cou-
plings have been included as
an option for use with 1-1/2"
PVC flex pipe as shown in
Photo 4.A.2 (replaces the
Liquid-Tite fittings for use
with the provided 1" poly pipe).

RECEIVING YOUR WALL MOUNT FASTLANE

The Wall Mount Fastlane is comprised of six (6) parcels. All items will be shipped via UPS Ground.
ITEMS SHIPPED UPS
Parcel 1: Wall Mount Bracket Assembly
Parcel 2: Two (2) 24' 6" rolls of 1" Polyethylene Pipe
Parcel 3: 5-hp Power Unit with Wireless Remote
Control and Antenna (Heavy Box) Note: If the
Outdoor Power Unit was purchased as an option,
the Weather Guard will come pre-assembled
to the Power Unit.
Parcel 4: Five (5) Gallons of Hydraulic Fluid
(Non-Food Grade Vegetable Oil)
Parcel 5: Fastlane Swim Unit – housing with horizontal
grill (Large Box)
Parcel 6: Fastlane Swim Unit – base with pre-installed,
25 feet of hydraulic hoses, stainless steel
grab rail, and wheels (Large Box)

HARDWARE KIT

PACKED INSIDE THE SWIM UNIT HOUSING BOX:
To attach the housing to the base:
• Eight (8) 1" stainless steel screws
• Two (2) 1/2" stainless steel screws
• Twelve (12) 1/2" stainless steel screws for attaching the
hat channels
• Owner's manual kit with
two (2) -8 Female JIC/-6 Male JIC Adapters

WALL MOUNT BRACKET AND 1" POLYETHYLENE PIPE INSTALLATION

NOTE: PLEASE READ INSTRUCTIONS FULLY BEFORE BEGINNING BRACKET INSTALLATION.
4.A. Gunite/Concrete Pool
If the pool being constructed is gunite or concrete, please follow the instructions below.
Parcel 1 includes the Wall Mount Fastlane bracket for concrete or gunite pools. Two (2) 24' 6" rolls of 1" poly pipe
are shipped separately. The standard bracket is comprised of the following components (refer to Photo 4.A.1):
• Two (2) 3/8" threaded 316L stainless steel mounting rods with hardware
• One (1) 3/8" PVC bracket plate
• Two (2) thru-wall Liquid-Tite fittings
• One (1) bonding lug set
3/8" Stainless Steel
Mounting Rod. Firmly secure
these rods to the rebar grid.
Hang and secure Fastlane
on these SS threaded rods.

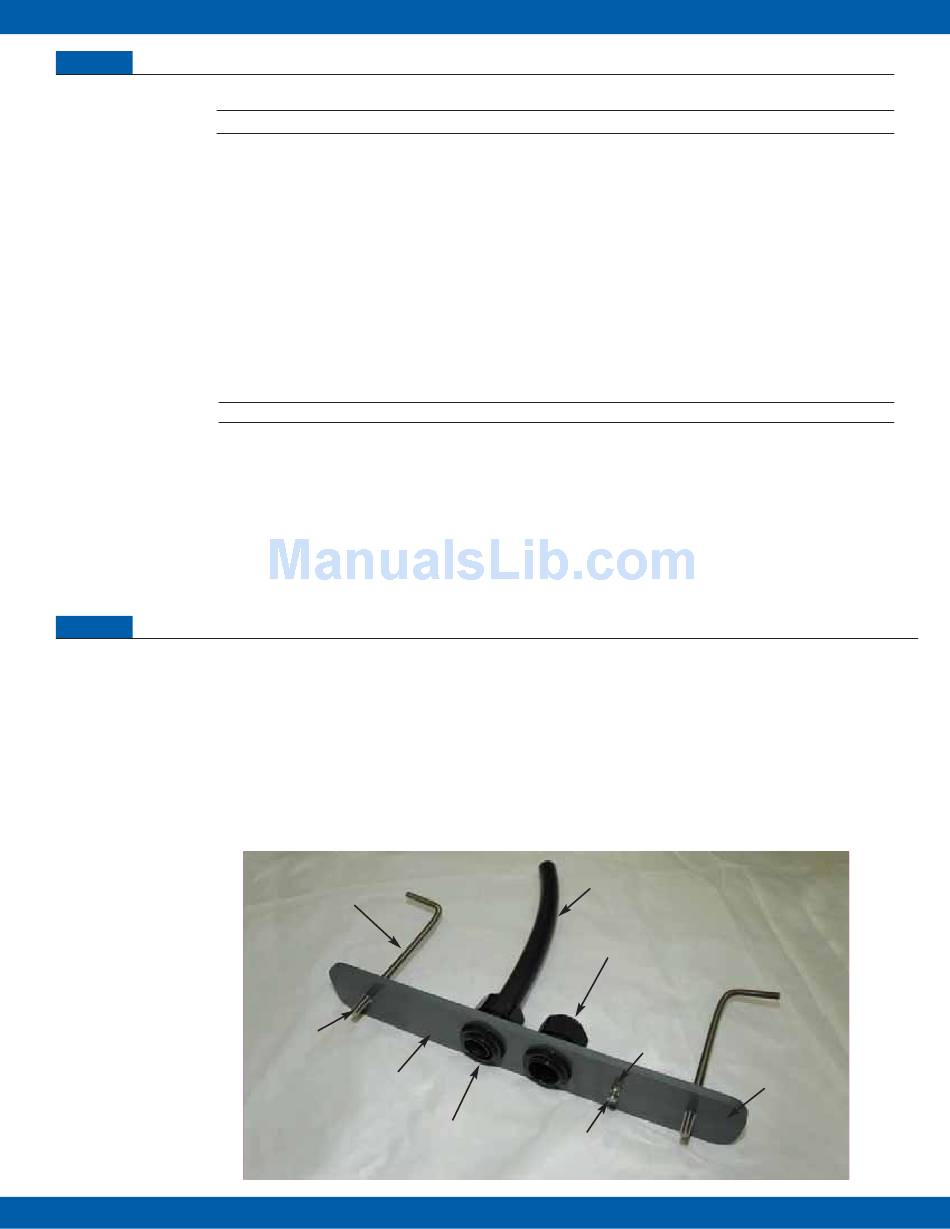

Wall Mount Fastlane Bracket.
Install this side flush with the
finished pool surface.
Cover 1" poly pipe end with duct
tape to prevent gunite from clog-
ging the 1" poly pipe.
Photo 4.A.1
F a s t l a n e
®
OPTIONAL EQUIPMENT
• Outdoor Power Unit with Weather Guard
• Floor Mirror
• Swim Pace Display
• Underwater Camera
• Hi-Performance 6-hp Power Unit
(in lieu of 5-hp Power Unit)
• Junction Box Kit
(refer to Section 5)
PACKED INSIDE THE SWIM UNIT BASE BOX:
Wheel Housing Kit includes:
• Two (2) wheels
• Fiberglass wheel axle
• Four (4) large PVC washers
• Two (2) small PVC washers
• Two (2) stainless steel, red-threaded screws
Grab Rail Kit includes:
• Six (6) 3/4" stainless steel screws
• Six (6) stainless steel self-locking nuts
Example of 1" poly pipe.
1" poly pipe connects to this
Liquid-Tite fitting and runs
to the hydraulic Power Unit
or junction box.
Bonding
Lug Set
Attach SS bonding wire from
inside the Fastlane housing to
the bonding lug.
S w i m U n i t I n s t a l l a t i o n
Bracket Plate
