Endless Pools FastLane Owner's Manual page 4

F a s t l a n e S w i m U n i t I n s t a l l a t i o n
®
The bracket is to be installed into the pool wall as shown in Figure 4.2 so that the two mounting rods are
1-1/2" above the intended waterline for the pool, which is typically halfway up the skimmer. (The bottom edge
of the Wall Mount Bracket will sit along the pool's intended waterline.) The rods penetrate a few inches into
the finished pool and will be used to hang the Wall Mount Fastlane. These rods must be tied back to the rebar
of the bond beam in the pool and, once encased in concrete, will serve as a suitable hanger. Additionally, a
#8 or larger, solid copper bonding wire must be connected from the pool bonding grid to the bonding lug
located on back of the wall mount bracket.

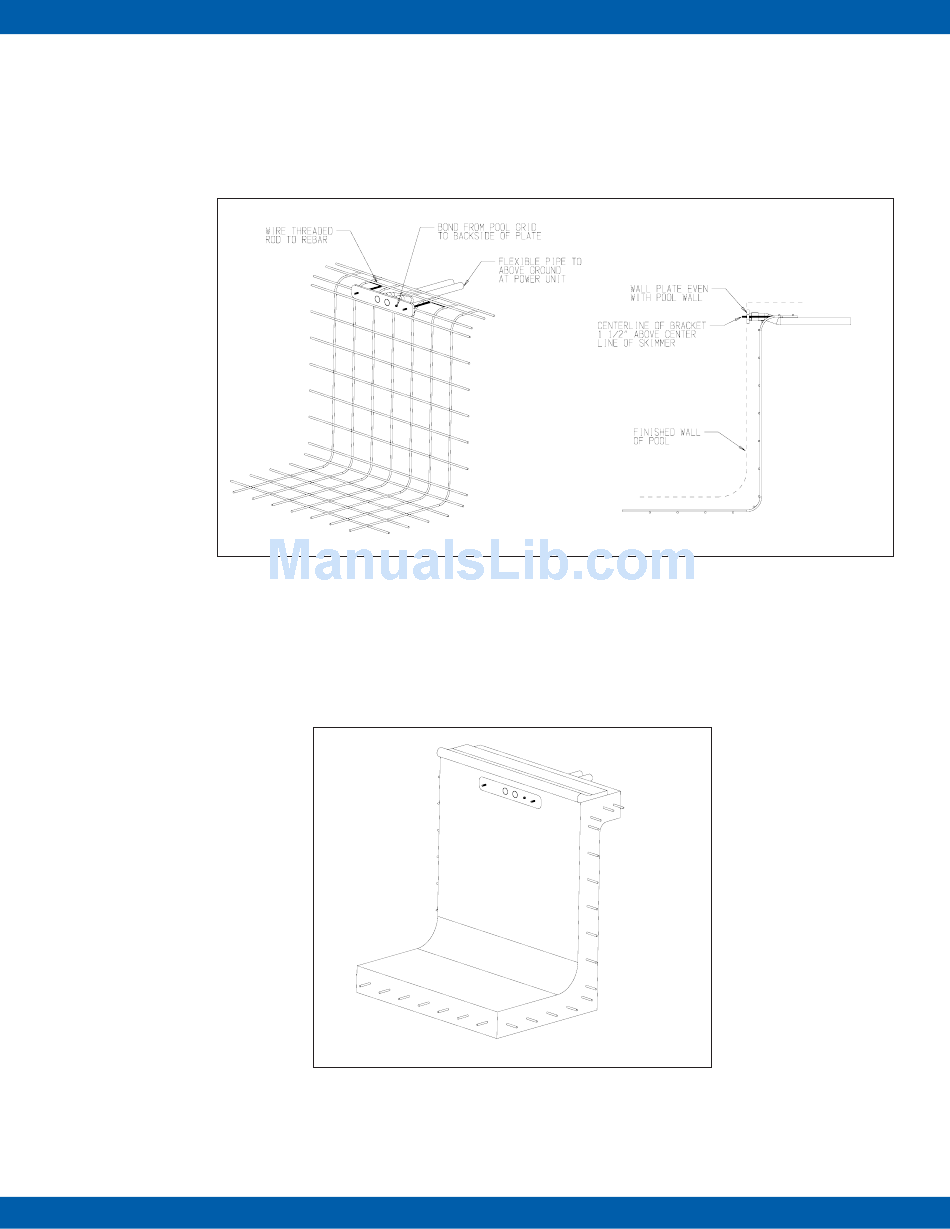

Fig. 4.2
Level and position the bracket so that the PVC surface of the bracket plate will be flush with the finished
surface of the pool wall as shown in Figures 4.2 and 4.3. The area below the bracket plate should be no
more than 5 degrees less than vertical down to at least 35" below the waterline. The Fastlane is 21" wide.
Consequently, the 21" section of wall where the bracket is located should be straight or near straight. Any
variations from this requirement should be discussed with your design representative. Additionally, it is
imperative that the Fastlane not be installed less than 24" from an adjacent wall to allow for proper water
flow. Please refer back to Figure 2.1, Minimum Clearance Guidelines, for clarification.
Install two (2) complete 1" poly pipes back to the Hydraulic Power Unit or junction box. The two (2) 1" poly
pipes may be partially buried and/or covered with concrete. Care should be taken when rounding corners not
to use tighter than 18" radius bends. It is imperative that this 1" poly pipe not be kinked given the close
tolerance of the fittings sliding through later (Section 10.4). Do not use couplers with this 1" poly pipe, but
3
Fig. 4.3
