B12

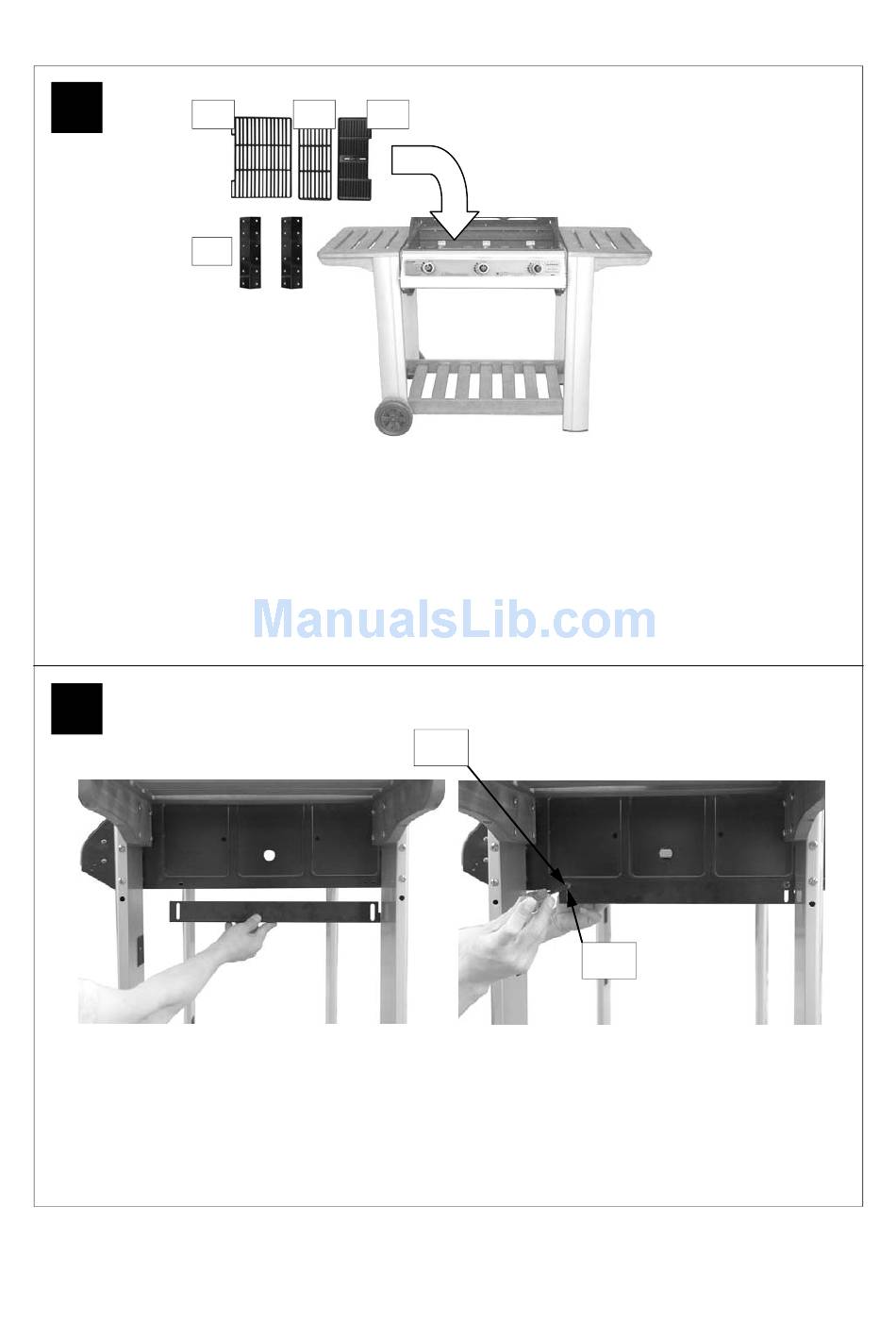

Remove the plastic wrap from the flame tamer (B12) and lay them carefully into the body ensuring

they lie level within the body. Lay the cooking grill(s) (B9, B10)and griddle (B11) into place.

2 burner model configuration: Left — Large Cooking Grill, flame tamer, Right — Small Cooking

Grill, flame tamer;

3 burner model configuration: Left — Large Cooking Grill, flame tamer, Middle — Small Cooking

Grill, flame tamer, Right — Small Griddle Plate.

NOTE: The flame tamers must be laid over the burners.

Attach drip tray right bracket (B8) to barbecue body using M5x15 bolts (D2), washers (D3) and

M5 nuts (D4) as shown. Repeat above process for drip tray left bracket (B7).

NOTE: Ensure that the tabs of the brakets which stop the drip tray are located at the

back of the barbecue.

B10

B11
