3.5 Installing the Cutter Module

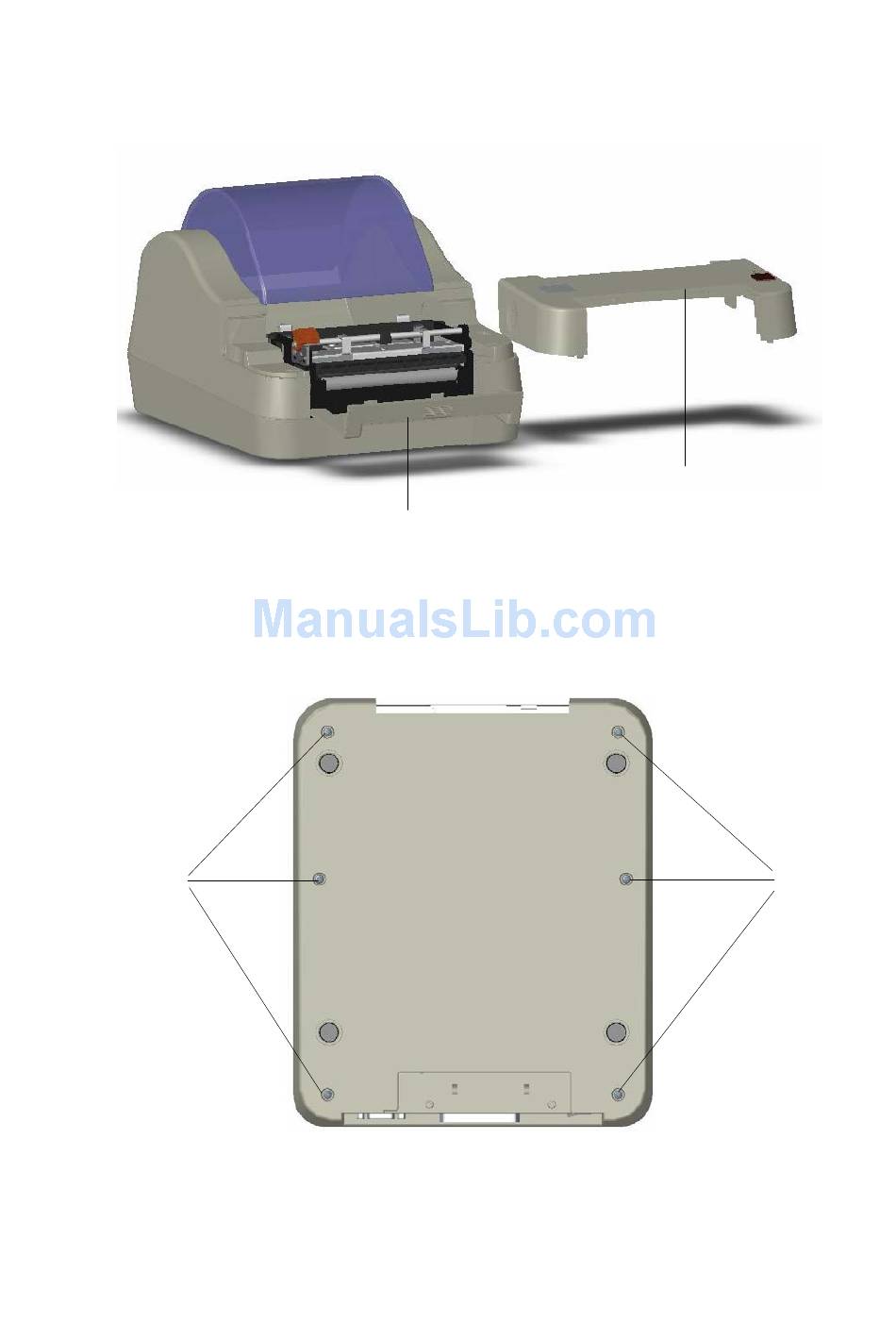

1. Open the Front Cover and remove the Top Cover.
Top Cover
Front Cover
2. Unplug the Front Cover harness from the PCB of the Button.
3. Remove the Front Cover.
4. Remove 6 screws from the button of the printer.
Screws
Screws
5. Open the Top Cover Assembly.
- 11 -
