3.4 Installing the Tag

Note:

(1) The major difference between tag and label is that there is no adhesive liner

paper on the back of the tag.

(2) The only difference between installing tag and label is that the tag roll

unwinds from the bottom as depicted.

Insert the spindle into the core of the tag roll.

With the tag roll setting to unwind from the bottom, place the spindle onto the

slots of the external roll mount supports.

Push the front edge of the tag into the label insert opening until it stops.

Press and hold the FEED button until the front edge of tag feeds out of the

label dispense opening of the printer.

Open the front cover by pushing down the front cover release button, then

push the paper release button to the back and hold to adjust the tag to its

proper position.

Rewind the tag roll to remove any slack and adjust the paper guides until they

are close to the edges of the tag roll.

Press and release the FEED button until the READY indicator is on. The

installation now is complete.

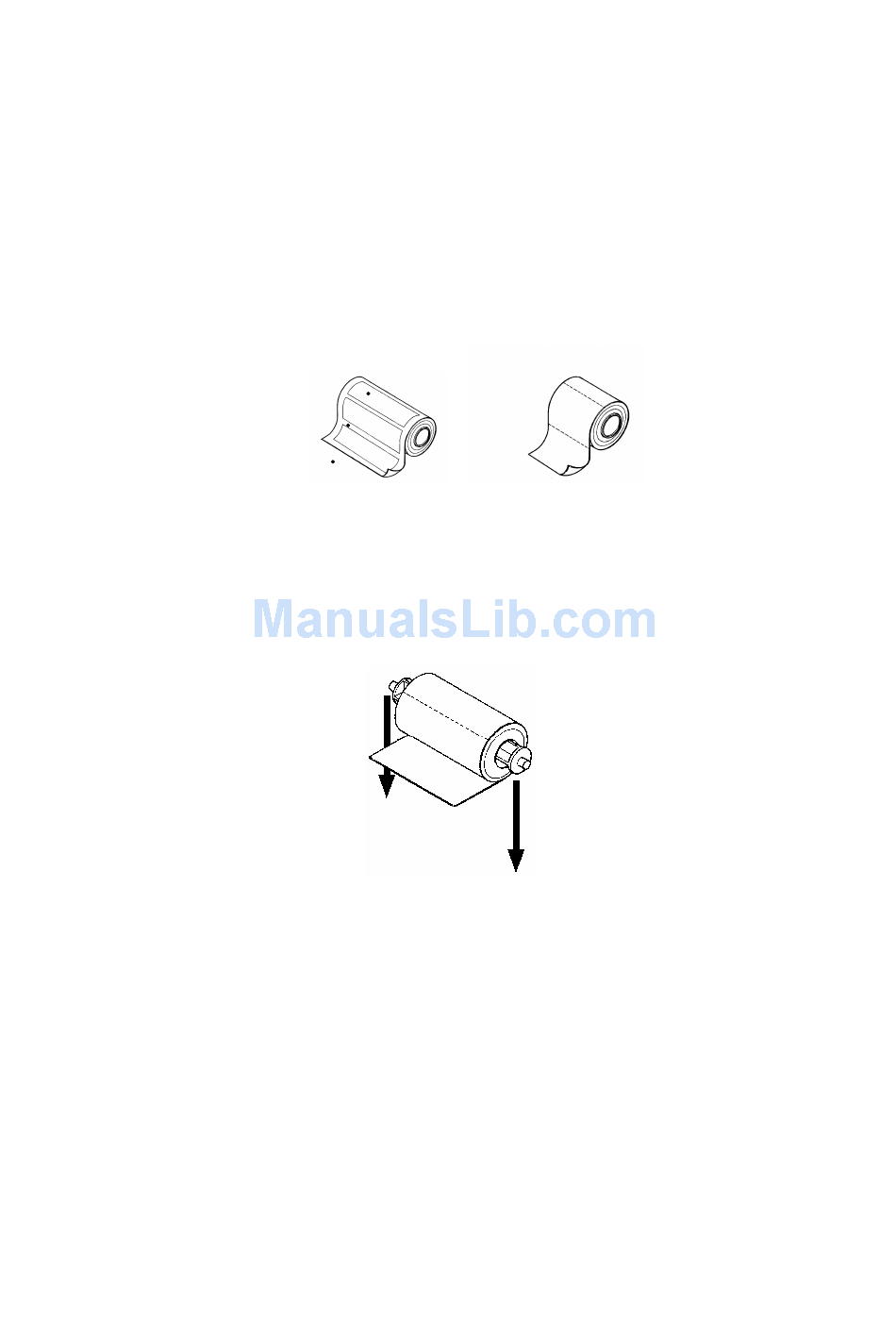

Label

- 10 -

Tag
