4.2 Removing labels stuck on the print head

Note:

Static electricity will damage the print head. Touch any grounded object such as a

metal doorframe to discharge yourself before touching the print head. Avoid any

action that might possibly cause lots of static electricity like chafing your feet on the

carpet.

1. Follow the steps below to remove the print head:

a. Pull the paper release button.

b. Pull out the rod on the print head to remove it.

c. Take out the print head bracket.

d. Unplug the connector from the print head.

2. Turn over the print head, and check for anything stuck on it.

3. Use clean soft cloth soaked with alcohol to clean the print head carefully.

After all the steps described above have been finished, and the mechanism is

cleaned up, reassemble the printer in the reverse order of removal.

Please follow the steps below to solve this problem:

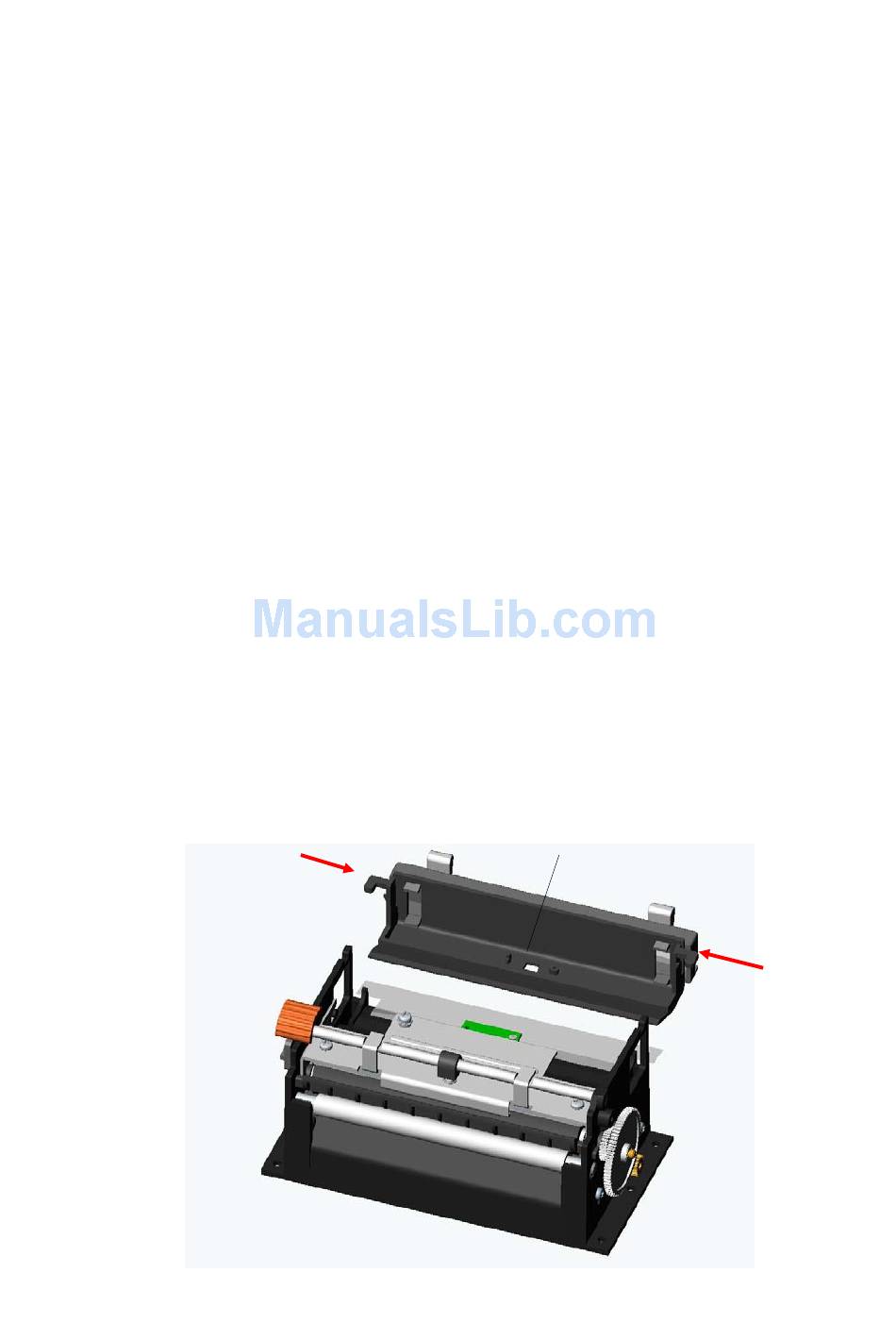

1. Squeeze the left and right latches of the label guide assembly together toward

each other, in the direction as shown in Fig. 12.

Fig. 12 Remove label guide assembly

- 17 -

Label guide assembly
