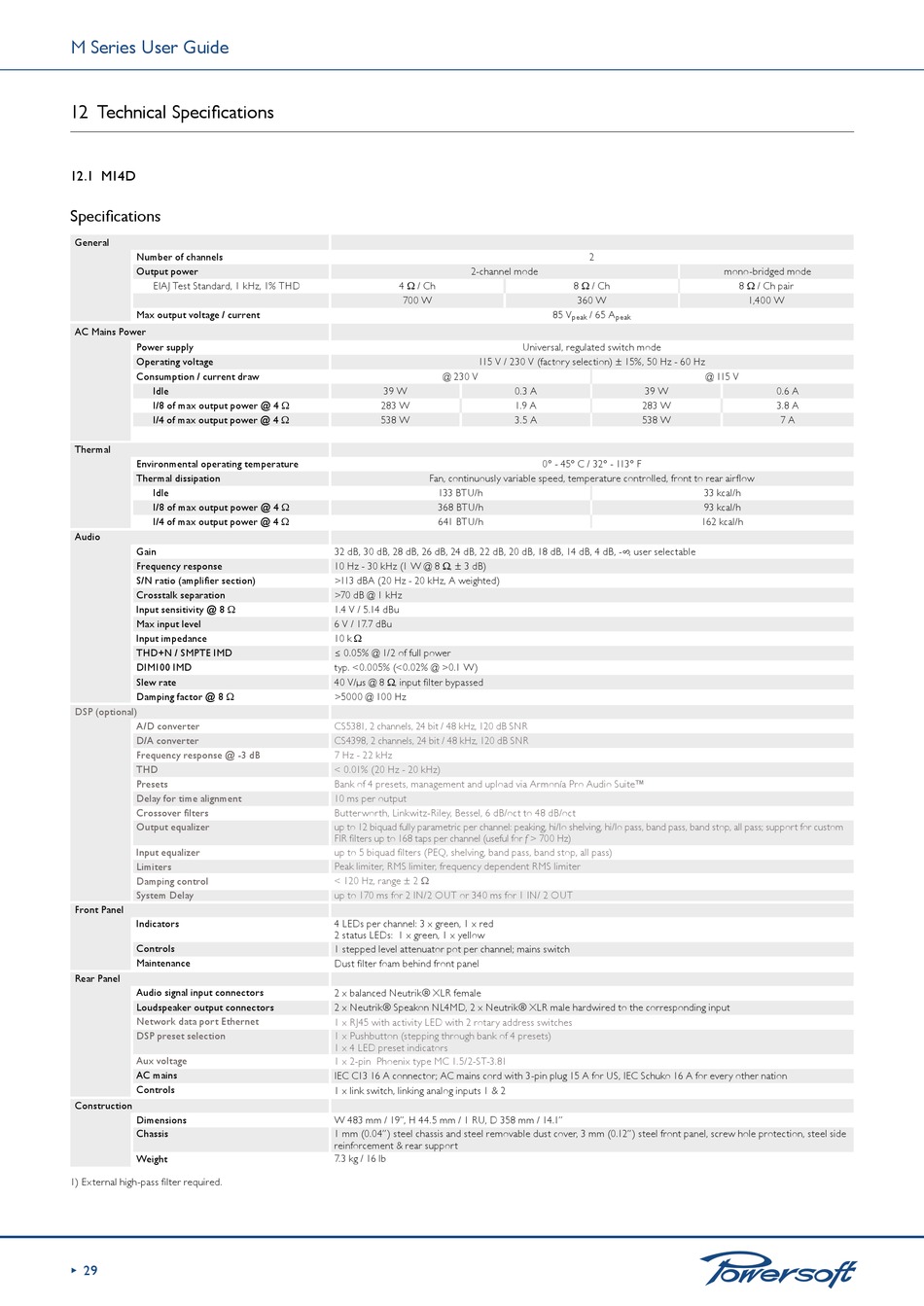

12 Technical Specifications

12.1 M14D

Specifications
General
Number of channels
Output power
EIAJ Test Standard, 1 kHz, 1% THD
Max output voltage / current
AC Mains Power
Power supply
Operating voltage
Consumption / current draw
Idle
I/8 of max output power @ 4 Ω
I/4 of max output power @ 4 Ω
Thermal
Environmental operating temperature
Thermal dissipation
Idle
I/8 of max output power @ 4 Ω
I/4 of max output power @ 4 Ω
Audio
Gain
Frequency response
S/N ratio (amplifier section)
Crosstalk separation
Input sensitivity @ 8 Ω
Max input level
Input impedance
THD+N / SMPTE IMD
DIM100 IMD
Slew rate
Damping factor @ 8 Ω
DSP (optional)
A/D converter
D/A converter
Frequency response @ -3 dB
THD
Presets
Delay for time alignment
Crossover filters
Output equalizer
Input equalizer
Limiters
Damping control
System Delay
Front Panel
Indicators
Controls
Maintenance
Rear Panel
Audio signal input connectors
Loudspeaker output connectors
Network data port Ethernet
DSP preset selection
Aux voltage
AC mains
Controls
Construction
Dimensions
Chassis
Weight
1) External high-pass filter required.
29
▶
2-channel mode
4 Ω / Ch
700 W
115 V / 230 V (factory selection) ± 15%, 50 Hz - 60 Hz
@ 230 V
39 W
283 W
538 W
Fan, continuously variable speed, temperature controlled, front to rear airflow
133 BTU/h
368 BTU/h
641 BTU/h
32 dB, 30 dB, 28 dB, 26 dB, 24 dB, 22 dB, 20 dB, 18 dB, 14 dB, 4 dB, -∞, user selectable
10 Hz - 30 kHz (1 W @ 8 Ω, ± 3 dB)
>113 dBA (20 Hz - 20 kHz, A weighted)
>70 dB @ 1 kHz
1.4 V / 5.14 dBu
6 V / 17.7 dBu
10 k Ω
� 0.05% @ 1/2 of full power
typ. <0.005% (<0.02% @ >0.1 W)
40 V/µs @ 8 Ω, input filter bypassed
>5000 @ 100 Hz
CS5381, 2 channels, 24 bit / 48 kHz, 120 dB SNR
CS4398, 2 channels, 24 bit / 48 kHz, 120 dB SNR
7 Hz - 22 kHz
< 0.01% (20 Hz - 20 kHz)
Bank of 4 presets, management and upload via Armonía Pro Audio Suite™
10 ms per output
Butterworth, Linkwitz-Riley, Bessel, 6 dB/oct to 48 dB/oct
up to 12 biquad fully parametric per channel: peaking, hi/lo shelving, hi/lo pass, band pass, band stop, all pass; support for custom
FIR filters up to 168 taps per channel (useful for f > 700 Hz)
up to 5 biquad filters (PEQ, shelving, band pass, band stop, all pass)
Peak limiter, RMS limiter, frequency dependent RMS limiter
< 120 Hz, range ± 2 Ω
up to 170 ms for 2 IN/2 OUT or 340 ms for 1 IN/ 2 OUT
4 LEDs per channel: 3 x green, 1 x red
2 status LEDs: 1 x green, 1 x yellow
1 stepped level attenuator pot per channel; mains switch
Dust filter foam behind front panel
2 x balanced Neutrik® XLR female
2 x Neutrik® Speakon NL4MD, 2 x Neutrik® XLR male hardwired to the corresponding input
1 x RJ45 with activity LED with 2 rotary address switches
1 x Pushbutton (stepping through bank of 4 presets)
1 x 4 LED preset indicators
1 x 2-pin Phoenix type MC 1.5/2-ST-3.81
IEC C13 16 A connector; AC mains cord with 3-pin plug 15 A for US, IEC Schuko 16 A for every other nation
1 x link switch, linking analog inputs 1 & 2
W 483 mm / 19", H 44.5 mm / 1 RU, D 358 mm / 14.1"
1 mm (0.04") steel chassis and steel removable dust cover, 3 mm (0.12") steel front panel, screw hole protection, steel side
reinforcement & rear support
7.3 kg / 16 lb
2
8 Ω / Ch
360 W
85 V / 65 A
peak peak
Universal, regulated switch mode
0.3 A 39 W
1.9 A 283 W
3.5 A 538 W
0° - 45° C / 32° - 113° F
mono-bridged mode
8 Ω / Ch pair
1,400 W
@ 115 V
0.6 A
3.8 A
7 A
33 kcal/h
93 kcal/h
162 kcal/h
