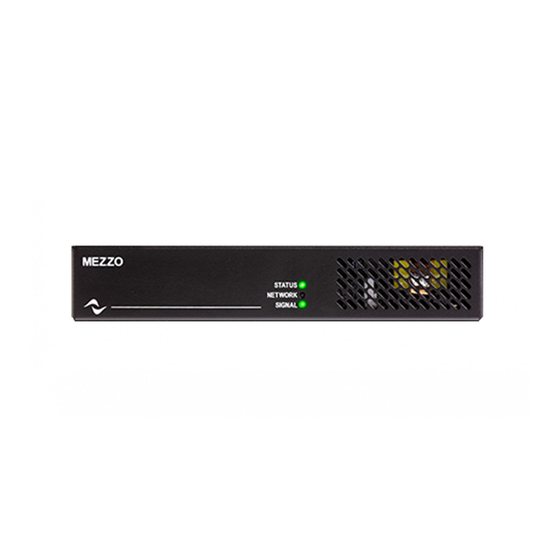

powersoft Mezzo Series User Manual
Hide thumbs
Also See for Mezzo Series:
- User manual (10 pages) ,
- Application notes (9 pages) ,
- User manual (41 pages)
Related Manuals for powersoft Mezzo Series
Summary of Contents for powersoft Mezzo Series
-
Page 1: User Guide
Mezzo Series USER GUIDE Mezzo 322, Mezzo 324 A/AD Mezzo 602, Mezzo 604 A/AD MEZZO STATUS NETWORK SIGNAL MEZZO STATUS NETWORK SIGNAL ©2019 Powersoft Keep this manual DO000257.00 R01 for future reference... -
Page 2: Important Safety Instructions
BEFORE POWERING THIS AMPLIFIER, VERIFY THAT THE CORRECT VOLTAGE RATING IS BEING USED. VERIFY THAT YOUR MAINS CONNECTION IS CAPABLE OF SATISFYING THE POWER CLASS3 RATINGS OF THE DEVICE. WIRING TAKE CARE TO LOCK THE OUTPUT TERMINAL BEFORE SWITCHING THE DEVICE ON. CLASS3 WIRING CLASS3 WIRING 2 | MEZZO Series... -
Page 3: Weee Directive
All warnings and safety instructions are now located on the first page of each language, please do take the time to read these. Less pages printed, less watts in, more power out. Thank you for choosing Powersoft as your purveyor of Green Audio Power. MEZZO Series | 3... -
Page 4: Preliminary Operations
REGULATED - Mezzo adapts the speed of the fan to stay cool. The fan noise at 1 m is ≤45 dBA in this mode. In the rare event of overheating, the amplifier will mute all channels and run the fans to reach a safe temperature and start operating again. 4 | MEZZO Series... -
Page 5: Setup And Operation
Please note that for low-impedance loads, it is not necessary to select In 2-channel models, the output levels of channels 1 and 2 can be the maximum voltage. attenuated with via GPI connectors I1 and I2, respectively. MEZZO Series | 5... - Page 6 LED Charts MEZZO STATUS SWITCHED NETWORK SIGNAL 100V STATUS CTRL + CTRL + CTRL NETWORK 2 IN 1 MEZZO SIGNAL 324 AD CLASS2 I4 I3 I2 I1 5V -10 dBV WIRING STATUS SWITCHED General NETWORK SIGNAL 100V CTRL + CTRL + Color Lighting Description...
-
Page 7: Rear Panels
NETWORK SIGNAL 100V CTRL + CTRL + Rear Panels CTRL 2 IN 1 MEZZO 324 AD CLASS2 2 Channel Versions I4 I3 I2 I1 5V WIRING -10 dBV STATUS SWITCHED STATUS SWITCHED NETWORK NETWORK SIGNAL 100V SIGNAL 100V CTRL + CTRL + CTRL CTRL +... - Page 8 DRIVING HUMAN AUDIO EXPERIENCE POWERSOFT S.P.A. Via E. Conti, 5 - Scandicci (FI) 50018 - Italy support@powersoft.com +39 055 73 50 230 +39 055 73 56 235 POWERSOFT.COM...
