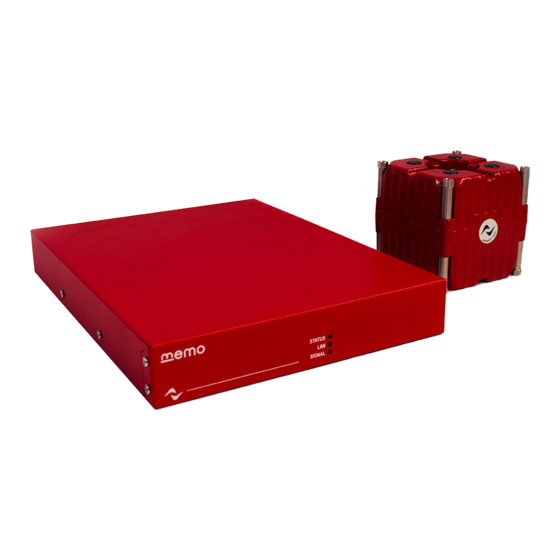

powersoft MeMo User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USER GUIDE
©2020 Powersoft
Keep this manual
DO000281.00 R0
for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the MeMo and is the answer not in the manual?

Questions and answers

Related Manuals for powersoft MeMo

Summary of Contents for powersoft MeMo

  • Page 1 USER GUIDE ©2020 Powersoft Keep this manual DO000281.00 R0 for future reference...
  • Page 2 Important Safety Instructions - MeMo Amplifier THE TRIANGLE WITH THE LIGHTNING BOLT IS USED TO ALERT THE USER TO THE RISK CAUTION OF ELECTRIC SHOCK. CLASS3 RISK OF ELECTRIC WIRING THE TRIANGLE WITH THE EXCLAMATION POINT IS USED TO ALERT THE USER TO SHOCK DO NOT OPEN IMPORTANT OPERATING OR MAINTENANCE INSTRUCTIONS.

  • Page 3: System Specifications

    Piston weight: 1.2 kg. Magnet type: 0.28 kg Neodymium magnet, grade N50. Frequency Response: 5 – 500 Hz. Nominal Impedance: 4 Ohm. Nominal Bl: 32 Tm Warranty: 2 years For any query reach out to us through our website www.powersoft.com. MeMo | 3...
  • Page 4 TX25 - M5x12 cylindrical head screw TX8 - M3x8 screw M5 nut TX25 wrench TX8 wrench MeMo power supply cable Power cable, female (30 cm) Power cable, male (290 cm) Jack 3.5 TRS cable (200 cm) RCA-Jack 3.5 TRS Cable (200 cm) Jack 3.5 TRS Splitter (20 cm)

  • Page 5: Mounting Locations

    Mounting Locations Frame Mount Mover in frame mount attachement Clamped onto chair's gas lift Clamped on frame Surface Mount Mover in surface mount flange Screwed onto seat's pan or back Screwed onto couch's base pans MeMo | 5...
  • Page 6 Assembling the clamp 2 x M5x12 2 x M5x25 TX25 Remove the wedge from the Manfrotto® Super Clamp M5x12 M5x25 Set the nuts in the place and screw the M5x25 screws Screw the 2 M5x12 screws in place 6 | MeMo...
  • Page 7 Slide the Mover in position, note the orientation of the wire Screw the Mover in place with 8 M5x12 screws Alternative motion orientation 8 x M5x12 Slide the Mover in position, note the orientation of the wire Screw the Mover in place with 8 M5x12 screws MeMo | 7...
  • Page 8 Mount the Mover in place with 4 screws (not included) Alternative motion orientation 8 x M5x12 Slide the Mover in position, note the orientation of the wire Mount the Mover in place with 4 screws (not included) Screw the Mover in place with 8 M5x12 screws 8 | MeMo...
  • Page 9 Connecting the Mover to the MeMo Amplifier M3x8 Connect the male power cable assembly to the output of the amplifier Complete the connection between the amplifier and the Mover Twist to lock the wire in place Screw the Output Terminal Retainer in place with the M3x8 Screw...
  • Page 10 Press the preset button to toggle between presets PRESET # NAME DESCRIPTION Music Ideal for every multimedia and music content! Cinema Ultra-low frequency enhanced for the best movie experience! Gaming Dive yourself inside your favorite game and play with the fourth dimension! 10 | MeMo...

  • Page 11: Rear Panel

    Rear Panel AC Mains Connector Remote Reserved IEC 10A Preset Output Preset State LEDs Mover Output AUX OUT (sum of Input + AUX In) Preset Selection Pushbutton Input Reserved AUX In (passthrough to AUX-OUT) Input LED Charts MEZZO MEZZO STATUS SIGNAL General Color...
  • Page 12 DRIVING HUMAN AUDIO EXPERIENCE POWERSOFT S.P.A. Via E. Conti, 5 - Scandicci (FI) 50018 - Italy support@powersoft.com +39 055 73 50 230 +39 055 73 56 235 POWERSOFT.COM...
