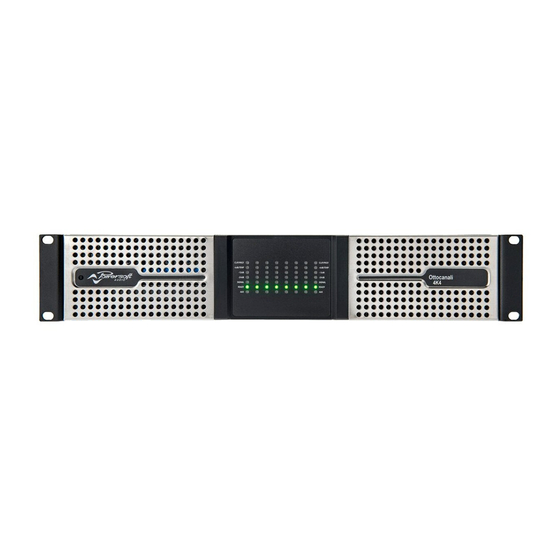

powersoft Ottocanali 12K4 User Manual

Ottocanali series
Hide thumbs Also See for Ottocanali 12K4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual
Ottocanali Series

USER GUIDE

Ottocanali 12K4 / Ottocanali 12K4 DSP+D
Ottocanali 8K4 / Ottocanali 8K4 DSP+D
Ottocanali 4K4 / Ottocanali 4K4 DSP+D
Ottocanali
12K4
DSP+D
©2015 Powersoft
Keep this manual
DO000140.04 R00
for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ottocanali 12K4 and is the answer not in the manual?

Questions and answers

Related Manuals for powersoft Ottocanali 12K4

Summary of Contents for powersoft Ottocanali 12K4

  • Page 1: User Guide

    Ottocanali Series USER GUIDE Ottocanali 12K4 / Ottocanali 12K4 DSP+D Ottocanali 8K4 / Ottocanali 8K4 DSP+D Ottocanali 4K4 / Ottocanali 4K4 DSP+D Ottocanali 12K4 DSP+D ©2015 Powersoft Keep this manual DO000140.04 R00 for future reference...
  • Page 2 Esta información está sujeta a cambios sin previo aviso. Para la última actualización por favor refiérase a la versión disponible en Ingles en nuestro sitio de internet www.powersoft-audio.com. I dati sono soggetti a cambiamenti senza preavviso. Per gli aggiornamenti si prega di consultare la versione inglese disponibile online su www.powersoft-audio.com.

  • Page 3: Table Of Contents

    Ottocanali Series Table of contents 1. Important safety instructions 5. Attenuators 2. Ottocanali Series 6. LED chart 7. Firmware update 2 : 1.Welcome 2 : 2.Unpacking & checking for shipping damage 8. Networking 2 : 3.Disposal of the packaging material 8 : 1.IP addressing 2 : 4.List of image panels 8 : 1.1.
  • Page 4 Ottocanali 12K4 DSP+D 2 | Ottocanali Series...
  • Page 5 Ottocanali 12K4 DSP+D 1. Grip the outermost left hand side panel and tilt it on its inner edge; 2. Carefully slide the panel and remove the anti-dust filter. Panels | 3...
  • Page 6 Ottocanali 12K4 Ottocanali 8K4 Ottocanali 4K4 Ottocanali 12K4 DSP+D ENERGY SAVE PWS OUT A. 24 V PWS OUT switch D. Input attenuators (channels 1 to 8) B. Energy save DIP switches E. Multifunction LEDs (channels 1 to 8) C. USB port F.
  • Page 7 Ottocanali 12K4 DSP+D Ottocanali 8K4 DSP+D Ottocanali 4K4 DSP+D Ottocanali 12K4 DSP+D CALL SOFT RESET HARD RESET FW UPDATE ENERGY SAVE PWS OUT A. 24 V PWS OUT switch E. Soft reset pushbutton I. Multifunction LEDs (channels 1 to 8) B.
  • Page 8 INPUT OUTPUT (single ended) Phoenix MC 1,5/12-ST-3,81 1803675 Phoenix PC 5/ 8-STF1-7,62 1777891 INPUT (link channel pairs) Phoenix MC 1,5/12-ST-3,81 1803675 Phoenix MC 1,5/12-ST-3,81 1803675 OUTPUT (bridged) Bill of connectors Name Plug INPUT Phoenix MC 1,5/12-ST-3,81 1803675 OUTPUT Phoenix PC 5/ 8-STF1-7,62 1777891 GPO/ALARM Phoenix MC 1,5/12-ST-3,81 1803675 AUXILIARY...
  • Page 9 Low-Z High-Z 100V HPF @ 35 Hz HPF @ 70 Hz • • • • • • • • • • • • • • • • • Panels | 7...
  • Page 10 RJ45 1 2 3 4 5 6 7 8 Color code (TIA/EIA-568-B) ORANGE / WHITE ORANGE GREEN / WHITE BLUE BLUE / WHITE GREEN BROWN / WHITE BROWN 1 RU Ott oca nal i Ottocan ali 12K 4 12K4 DSP+D DSP+D Ottocan ali 12K4...

  • Page 11: Regulatory Information

    CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the We declare that under our sole responsibility the products: Model Names: Ottocanali 12K4, Ottocanali 8K4, Ottocanali 4K4 equipment. Ottocanali 12K4 DSP+D, Ottocanali 8K4 DSP+D...

  • Page 12: Important Safety Instructions

    Important safety instructions EXPLANATIONS OF GRAPHICAL SYMBOLS CAUTION The triangle with the lightning bolt is used to alert the user to the RISK OF ELECTRICK SHOCK DO NOT OPEN risk of electric shock. CLASS3 WIRING The triangle with the exclamation point is used to alert the user Electrical energy can perform many useful functions.

  • Page 13: Ottocanali Series

    K. Output load DIP switch configurations L. RJ45 Ethernet wiring (Color code TIA/EIA-568-B) f Ottocanali 12K4 delivering up to 1500 W per channel at 4� M. Air flow and mounting brackets f Ottocanali 8K4 delivering up to 1000 W per channel at 4�...

  • Page 14: Installation

    50 cm from the front and rear ventilation openings Ottocanali Series amplifiers implement two universal of the amplifier. redundant switching mode power supplies operating in the All Powersoft amplifiers implement a forced-air cooling range from 100 V up to 240 V ±10%.

  • Page 15: 5.Energy Save

    3 : 5.Energy save 3 : 6.Precautions regarding installation Energy save capabilities can be activated for each chan- WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK nel pair. Four DIP switches are located on the left hand side f This device must be powered exclusively by earth con- of the front panel (see Panel C, p.

  • Page 16: Connections

    Connections Make sure the power switch is off before attempting to By wiring the PWS OUT connector to the AUX SEL. IN as make any input or output connections. shown in FIG. 3, the front panel PWS OUT switch is enabled By using good quality input and speaker cables, the like- to toggle between analog LINE inputs and AUX inputs: this lihood of erratic signal behavior is reduced to a minimum.

  • Page 17: 4.Ethernet Connections

    Ethernet connection through a personal computer signal is present at output terminals. and Powersoft Armonía Pro Audio Suite software. Powersoft recommend the use of Ethernet Cat5 straight Ottocanali DSP+D feature further monitoring on pilot through – patch – cables with pin/pair assignments TIA/EIA- tone and output load: the GPO monitoring interface in 568-B, i.e.

  • Page 18: Attenuators

    USB port. Updated releases of the Ottocanalil amplifiers: DSP+D firmware are available on the Armonía forum (http://www.powersoft-audio.com/en/armonia-forum). f In non-DSP Ottocanali amplifiers, the potentiometers The package contains the firmware update file whose act as trimmers on the input level (see Panel C, p.

  • Page 19: Networking

    Networking 8 : 2.Dante™ networking Ottocanali DSP+D amplifiers support linear daisy-chain, star and loop network topologies; in a daisy-chained net- work the PC with Armonía Pro Audio Suite must always be The Dante equiped models of Ottocanali DSP+D ampli- at one end of the chain. fier support Dante redundant networking via the two Rj45 Be aware that daisy-chaining does not guarantee reli- ports on the rear panel:...

  • Page 20: Armonía Pro Audio Suite

    9 : 1.Signal routing and DSP architecture the loudspeaker layout (grouping output channels, crossovering, limiting, speaker processing, etc.). Signal processing on Powersoft Ottocanali DSP+D am- 3. Define the routing path and the levels of the signals plifiers accomplishes multiple functions that affect the audio from the input channels to the active output channels signal before power amplification;...

  • Page 21: Warranty And Assistance

    48 (forty eight) months, starting from the date supports a network of authorized service centers. If your of purchase printed on Powersoft’s (or any of its Authorized amplifier needs repair contact your Powersoft dealer (or Dealer’s) invoice to the end customer. All warranty repairs distributor).
  • Page 22 Page intentionally left blank 20 | Ottocanali Series...

  • Page 23: Specifications

    482 mm x 382 mm x 89 mm Dimensions (LxWxH) (19 in x 15 in x 3.5 in) Weight 14 kg (30.8 lb) * Two switchable analog input connections per input channel. ** Ottocanali 12K4 DSP+D version only Specifications | 21...
  • Page 24 Ottocanali 8K4 Ottocanali 8K4 DSP+D Specifications Channel Handling Output Stage 8 mono Maximum output power per channel @ 2 Ω 850 W Number of output channels Lo-Z (bridgeable per ch. pair) / Hi-Z Maximum output power per channel @ 4 Ω 1000 W (2x Phoenix PC 5/ 8-STF1-7,62) Maximum output power per channel @ 8 Ω...
  • Page 25 Ottocanali 4K4 Ottocanali 4K4 DSP+D Specifications Channel Handling Output Stage 8 mono Maximum output power per channel @ 2 Ω 450 W Number of output channels Lo-Z (bridgeable per ch. pair) / Hi-Z Maximum output power per channel @ 4 Ω 500 W (2x Phoenix PC 5/ 8-STF1-7,62) Maximum output power per channel @ 8 Ω...
  • Page 26 Page intentionally left blank 24 | Ottocanali Series...
  • Page 28 Powersoft S.p.A. Via Enrico Conti, 5 50018 Scandicci (FI) Italy Tel: +39 055 735 0230 Fax: +39 055 735 6235 Sales & general inquiries: sales@powersoft.it Application & technical support: support@powersoft.it Service & maintenance: service@powersoft.it Compliance requests: compliance@powersoft.it powersoft-audio.com...
