Summary of Contents for powersoft Ottocanali 4K4
-

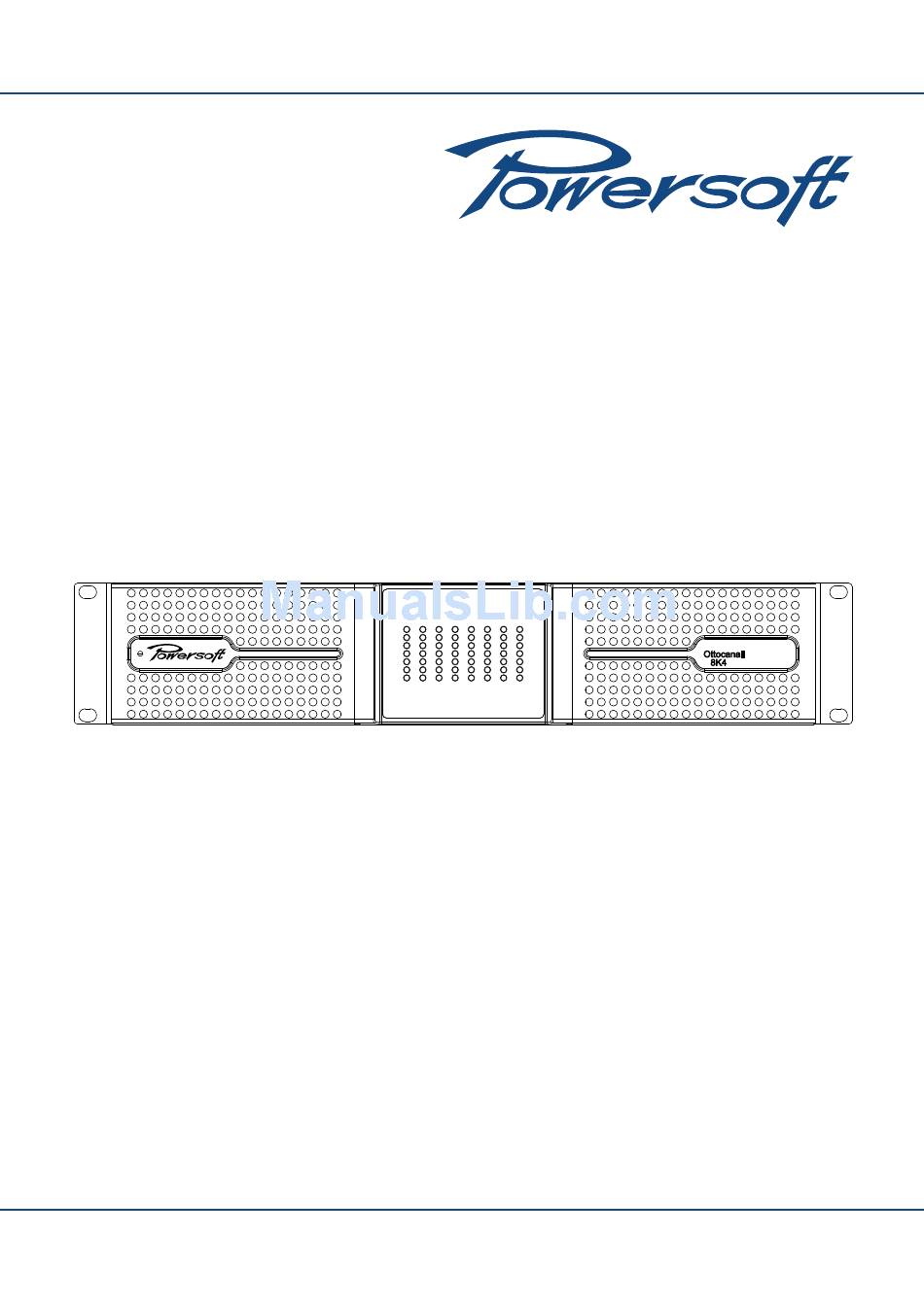

Page 1: User Guide
Ottocanali 4K4 Ottocanali 8K4 Ottocanali 12K4 Ottocanali user guide REV 2.0 November 2013 © 2013 Powersoft DO000140 Keep This Manual For Future Reference powersoft_Ottocanali_4K4_8K4_12K4_uguide_en_v2.0... - Page 2 Page intentionally left blank...
-
Page 3: Table Of Contents
Ottocanali 4K4 / 8K4 / 12K4 User Guide 8 Protection Table of contents 8.1 Turn on/Turn off muting 1 Important safety instructions 8.2 Short circuit protection 8.3 Thermal protection 2 Precautions regarding installation 8.3.1 Thermal warning 2.1 Location 8.3.2 Thermal shutdown 2.2 Wiring... -
Page 4: Important Safety Instructions
1 Important safety instructions 13. Unplug this amplifier during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is CAUTION required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has RISK OF ELECTRIC SHOCK been spilled or objects have fallen into the apparatus, the... -
Page 5: Wiring
Powersoft recommends that you use amplifiers in this power 2.2 Wiring range for more headroom (cleaner sound) rather than for in- creased volume. -
Page 6: Mechanical Drawings
FIGURE 1: Ottocanali footprint. All dimensions in millimiters. -
Page 7: Interfaces
FIGURE 2: Ottocanali front panel view. 1. 24 V PWS OUT toggle switch 8. On/off power switch 14. Multi function DIP switch (Impedance, voltage, filters) 2. Energy save DIP switch (per channel pair) 9. Audio outputs – 15. AUX input hazardous voltage 3. - Page 8 Page intentionally left blank...
-
Page 9: Welcome
Congratulations on buying a Powersoft Ottocanali amplifier! power consumption at any load and usage condition. This system Powersoft is a leading company in the field of high efficiency automatically alters the rails working level according to the audio power management. The Powersoft Class D technology instaneous power requirements of the system. -
Page 10: Mounting
FIGURE 4: Ottocanali packaging. FIGURE 6: Forced air cooling: front to back airflow. 6.2 Mounting All Powersoft amplifiers are designed for standard 19” rack temperature. Normal operation is resumed automatically without mounting; there are four front panel holes and two rear-lateral the need for user intervention. -
Page 11: Ac Mains Connection
(see Section 9.3). To remove the left hand side front panel bearing the Powersoft logo: 1. Firmly grip the outermost left hand side of the silver colored panel and pull outwards at an angle, as if opening a door hinged on the right hand side. -
Page 12: Energy Save
Input signal is above — 0.76 -60dBV TABLE 1: Energy save mode on/off: idle power consumption chart for the Ottocanali 4K4, 8K4,12K4. GREEN Channel is ready In order to enable energy saving mode for a channel pair, the AUX inputs are... -
Page 13: Toggle Line Input/Aux Input
7.5 Toggle line input/aux input The amplifier switches from line inputs to auxiliary inputs when a constant voltage in the 12V to 30V range is applied to the “AUX SEL” plug. When this voltage is removed from the “AUX SEL” plug, the unit switches back from auxiliary inputs to line inputs. -
Page 14: Hi-Z 70V/100V Operations
70V/100V line, the rear panel DIP switch corresponding to the channel must be correctly set. Powersoft recommends using a HPF (High Pass Filter) when the amplifier is set to drive a distributed line to prevent loudspeaker transformer saturation which can considerably degrade sound performance. -
Page 15: Remote On/Off
8.3 Thermal protection 9.2 Service All Powersoft amplifiers have variable speed fans to assist There are no user-serviceable parts in your amplifier. Refer cooling. If for some reason the cooling system can’t dissipate servicing to qualified technical personnel. -
Page 16: Dust Removal
(forty eight) months, starting from the date of purchase printed on All returning items must be shipped to the following address: Powersoft’s (or any of its Authorized Dealer’s) invoice to the end customer. All warranty repairs and retrofits must be performed at... -
Page 17: Specifications
11 Specifications Ottocanali 4K4 specifications General Number of channels 8 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 2 � / Ch 4 � / Ch 8 � / Ch 70 V 100 V 4-8�... -
Page 18: Ottocanali 8K4 Specifications
Ottocanali 8K4 specifications General Number of channels 8 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 2 � / Ch 4 � / Ch 8 � / Ch 70 V 100 V 4-8� / Ch pair 16�... -
Page 19: Ottocanali 12K4 Specifications
Ottocanali 12K4 specifications General Number of channels 8 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 2 � / Ch 4 � / Ch 8 � / Ch 70 V 100 V 4-8� / Ch pair 16�... - Page 20 Via Enrico Conti, 5 50018 Scandicci (FI) Italy Tel: +39 055 735 0230 Fax: +39 055 735 6235 General inquiries: info@powersoft.it Sales: sales@powersoft.it Application & technical support: support@powersoft.it Service & maintenance: service@powersoft.it www.powersoft-audio.com © 2013 Powersoft powersoft_Ottocanali_4K4_8K4_12K4_uguide_en_v2.0_BW...
