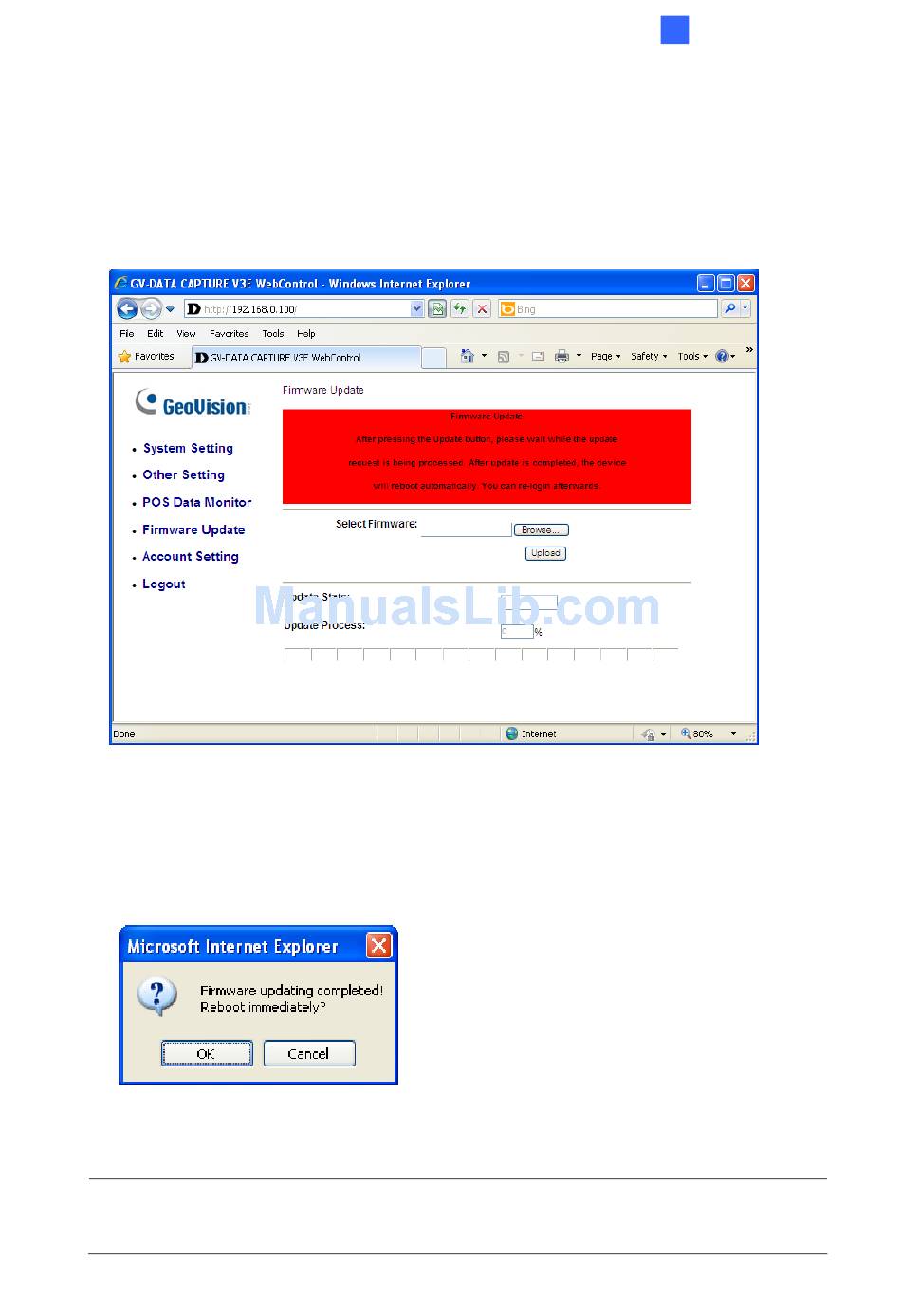

4.3.2 Updating Firmware
To update the firmware of the GV-Data Capture V3E:
1. In the left menu pane, click Firmware Update. This page appears.
2. Click the Browse... button to open the firmware file (*.bin)
3. Click the Upload button. This update procedure may take 60 seconds to complete.
4. When the Update is complete, a dialog box appears and asks you to reboot the system.
Figure 24
5. Click OK, and the V3E starts the Reboot operation.
Note: It is required to reboot the V3E after updating the firmware. Without rebooting, the
firmware update is not complete.
Figure 23
V3E Settings
4
27
