3.1.2 DB25 Serial Interface

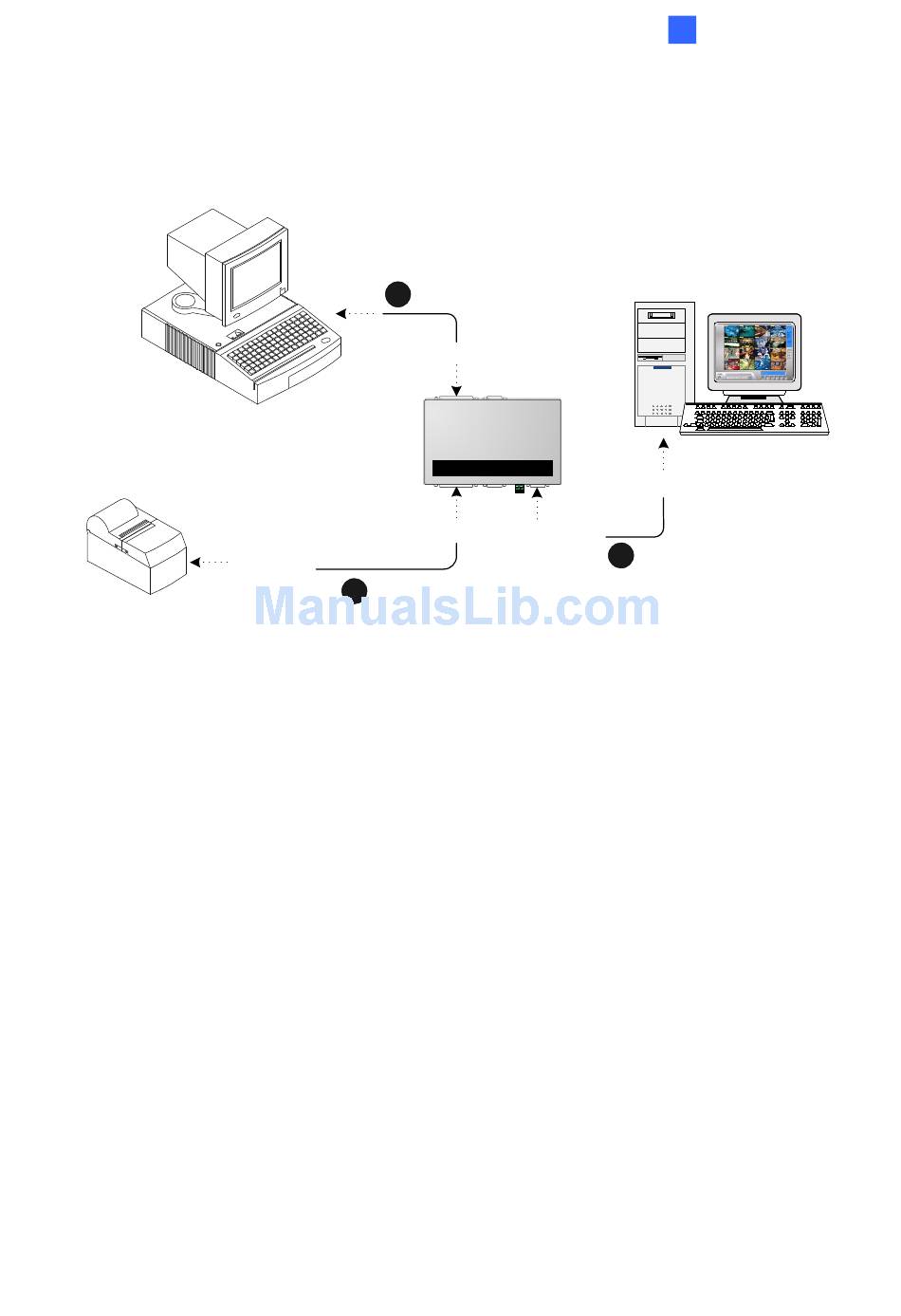

The illustration below is an example of a POS system using an RJ45-DB25 cable.
POS System
Female / Male
Printer
•
The RJ-45 cable (1) is supplied with the POS system.
•
The RS-232 cables (2) and (3) are supplied with the GV-Data Capture.
•
The physical distance between the POS system and the GV-System should be less
than 10 meters (32 ft).
1
DB25 Female / Male
DB25 Male / Female
DB25
3
RS-232
Figure 4
RJ-45
GeoVision GV-DATA CAPTURE V3
DB9 Male
V3 Settings
3
GV-System
DB9 Female
2
RS-232
7
