3. V3 Settings

The GV-Data Capture V3 Series supports both serial and parallel types of POS systems.
This section introduces how to connect the two types of POS systems to the GV-Data
Capture, and how to configure the GV-System to receive the data from the POS system.

3.1 Connections

Identify the interface on your POS system used to connect a receipt printer to the POS
system. It should be one of the three interfaces: DB9 Serial, DB25 Serial and Parallel.
Following illustrates the connections of the three interfaces.

3.1.1 DB9 Serial Interface

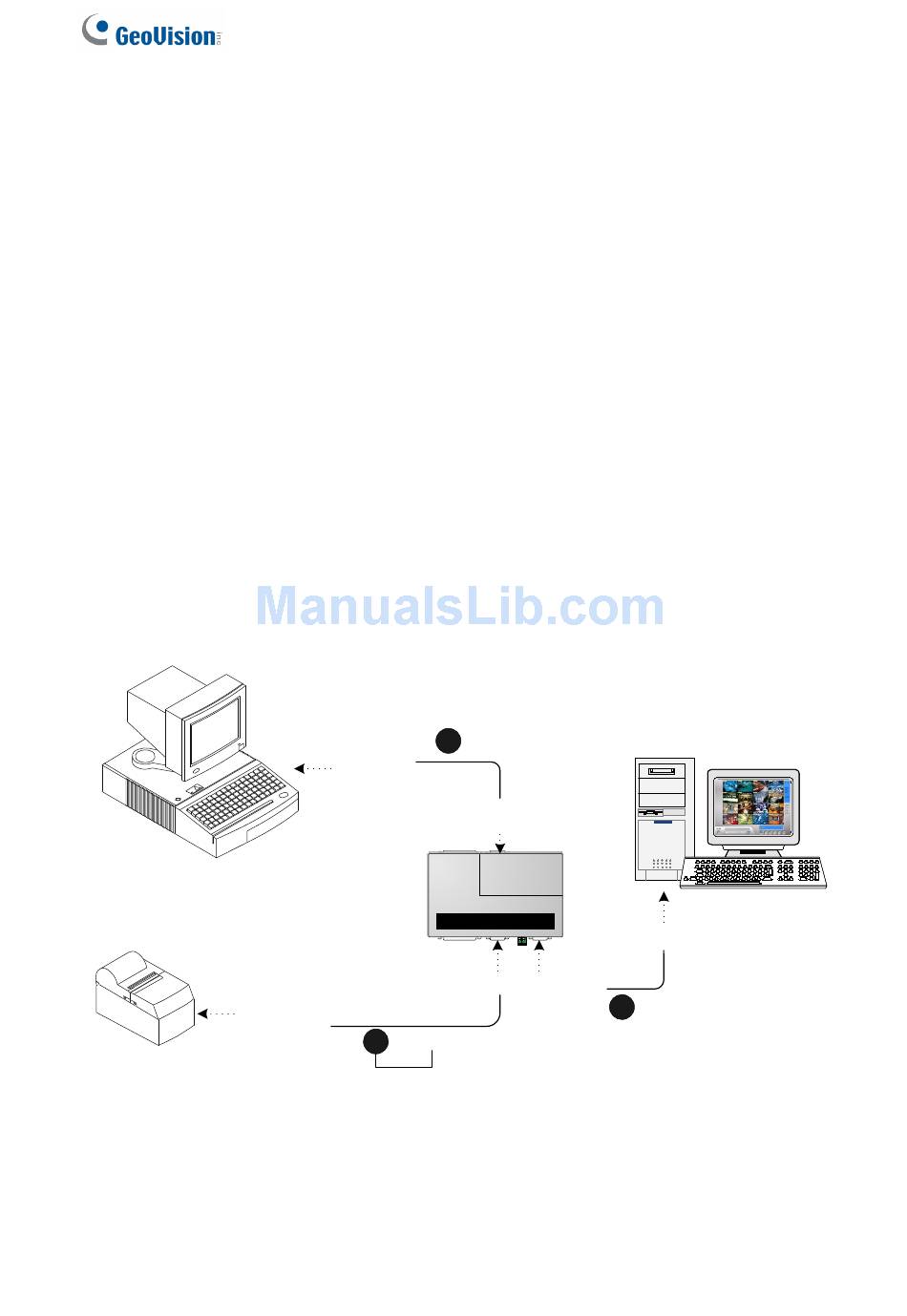

The illustration below is an example of a POS system using a DB9-DB25 cable.
POS System
Male / Female
Printer
The RS-232 cables (1) and (2) are supplied with the GV-Data Capture.
The RS-232 cable (3) is supplied with the POS system.
The physical distance between the POS system and GV-System should be less than
10 meters (32 ft).
6
DB9
Female /
Male
DB9 Male / Female
DB9 Female / Male
DB25
3
RS-232
Figure 3
1
RS-232
GeoVision GV-DATA CAPTURE V3
DB9 Male
GV-System
DB9 Female
2
RS-232
