Chapter 2
Chapter 2
Getting Started
 Setting up your PC
Connect the VGA/ HDMI cable from your display to the VGA/ HDMI port.
HDMI
VGA

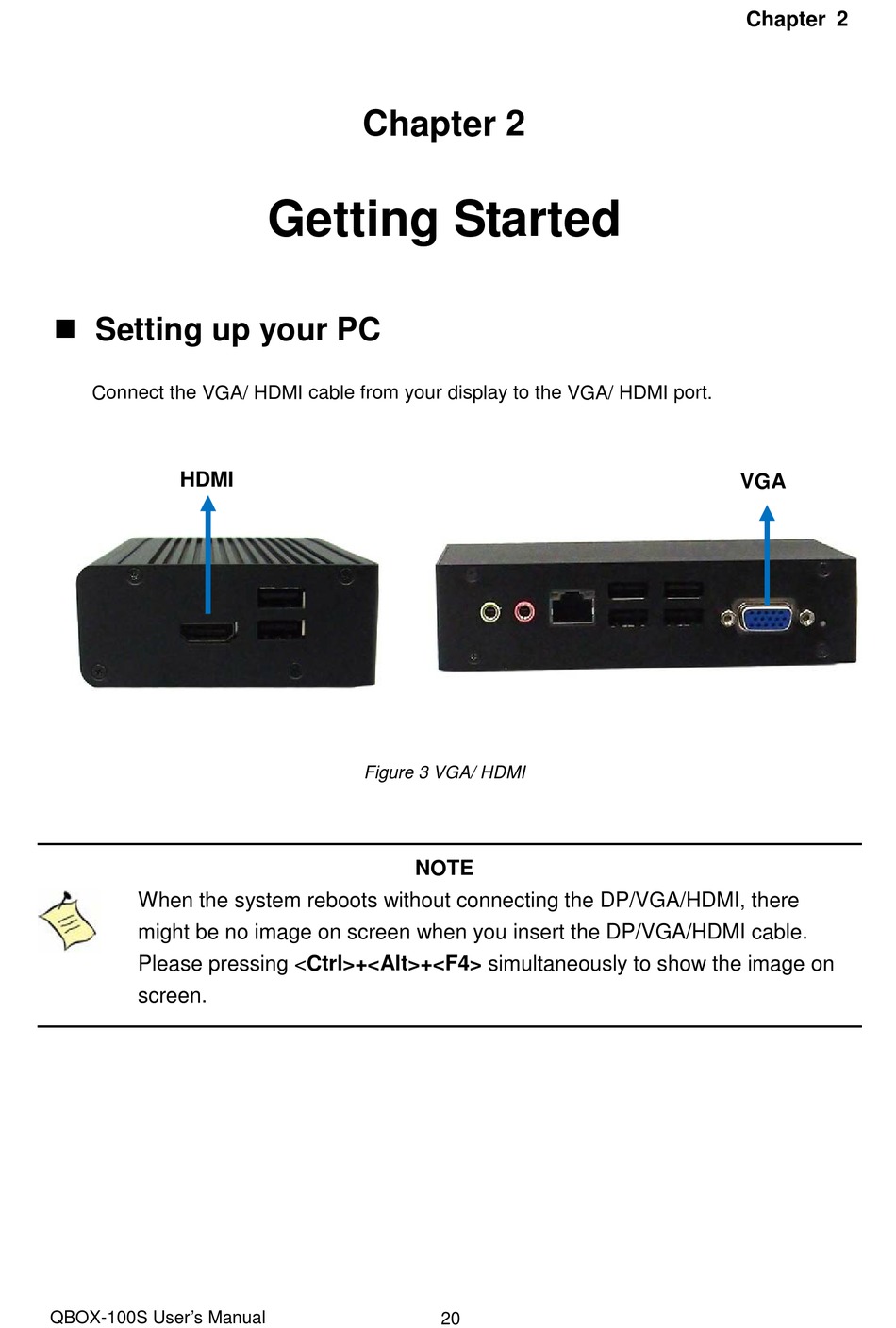

Figure 3 VGA/ HDMI

NOTE
When the system reboots without connecting the DP/VGA/HDMI, there
might be no image on screen when you insert the DP/VGA/HDMI cable.
Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on
screen.
