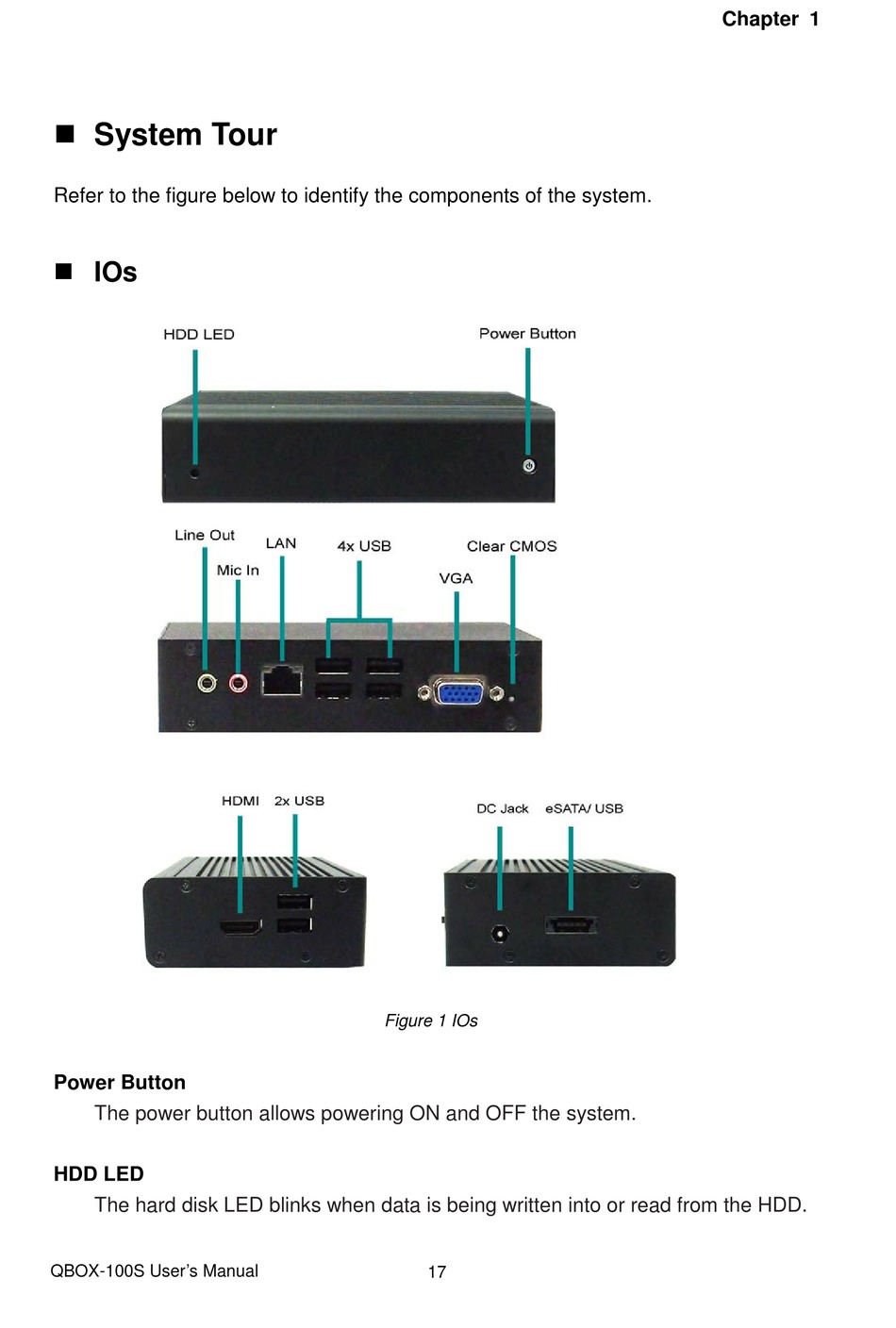

 System Tour
Refer to the figure below to identify the components of the system.
 IOs
Power Button
The power button allows powering ON and OFF the system.
HDD LED
The hard disk LED blinks when data is being written into or read from the HDD.
QBOX-100S User's Manual

Figure 1 IOs

17
Chapter 1
