8

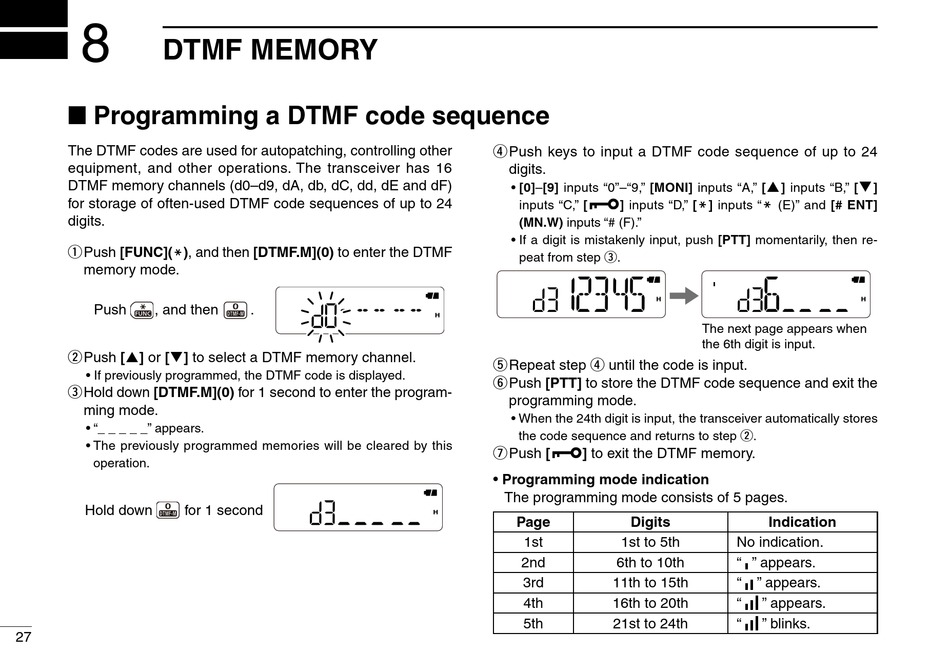

DTMF MEMORY

■ Programming a DTMF code sequence

The DTMF codes are used for autopatching, controlling other
equipment, and other operations. The transceiver has 16
DTMF memory channels (d0–d9, dA, db, dC, dd, dE and dF)
for storage of often-used DTMF code sequences of up to 24
digits.
q Push [FUNC](M), and then [DTMF.M](0) to enter the DTMF
memory mode.
Push , and then
w Push [] or [] to select a DTMF memory channel.
• If previously programmed, the DTMF code is displayed.
e Hold down [DTMF.M](0) for 1 second to enter the program-
ming mode.
• "_ _ _ _ _" appears.
• The previously programmed memories will be cleared by this
operation.
Hold down for 1 second
27
.
r Push keys to input a DTMF code sequence of up to 24
digits.
• [0]–[9] inputs "0"–"9," [MONI] inputs "A," [
inputs "C," [ ] inputs "D," [
(MN.W) inputs "# (F)."
• If a digit is mistakenly input, push [PTT] momentarily, then re-
peat from step e.
t Repeat step r until the code is input.
y Push [PTT] to store the DTMF code sequence and exit the
programming mode.
• When the 24th digit is input, the transceiver automatically stores
the code sequence and returns to step w.
u Push [ ] to exit the DTMF memory.
• Programming mode indication
The programming mode consists of 5 pages.
Page Digits
1st 1st to 5th
2nd 6th to 10th
3rd 11th to 15th
4th 16th to 20th
5th 21st to 24th
 
] inputs "B," [ ]
M M
] inputs " (E)" and [# ENT]
The next page appears when
the 6th digit is input.
Indication
No indication.
" " appears.
" " appears.
" " appears.
" " blinks.
