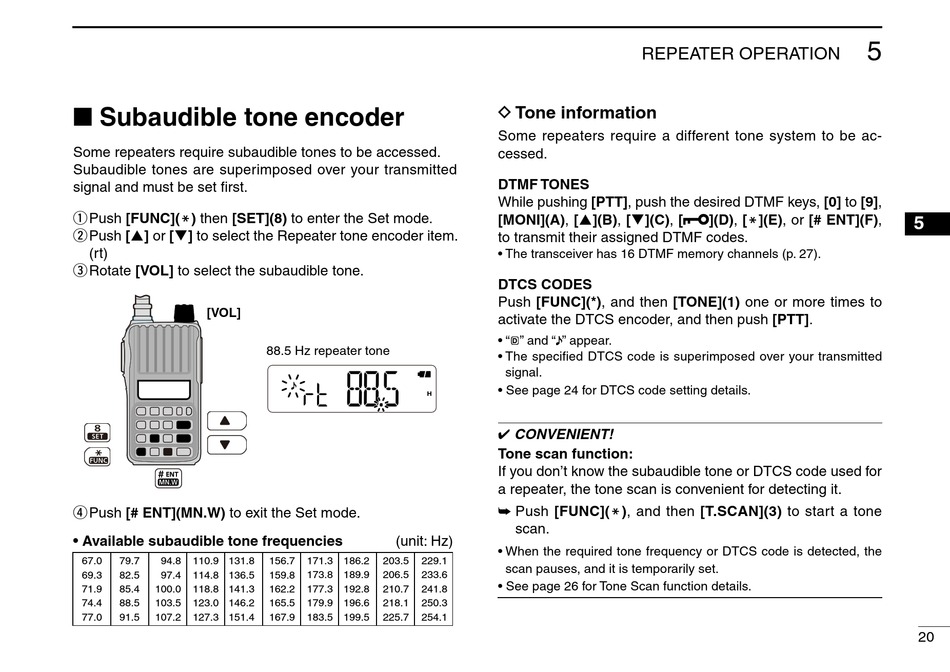

■ Subaudible tone encoder

Some repeaters require subaudible tones to be accessed.
Subaudible tones are superimposed over your transmitted
signal and must be set first.
q Push [FUNC](M) then [SET](8) to enter the Set mode.
w Push [] or [] to select the Repeater tone encoder item.
(rt)
e Rotate [VOL] to select the subaudible tone.
[VOL]
r Push [# ENT](MN.W) to exit the Set mode.
• Available subaudible tone frequencies
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
91.5 107.2 127.3 151.4
77.0
88.5 Hz repeater tone
(unit: Hz)
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
REPEATER OPERATION
D Tone information
Some repeaters require a different tone system to be ac-
cessed.
DTMF TONES
While pushing [PTT], push the desired DTMF keys, [0] to [9],
[MONI](A), [](B), [](C), [
to transmit their assigned DTMF codes.
• The transceiver has 16 DTMF memory channels (p. 27).
DTCS CODES
Push [FUNC](*), and then [TONE](1) one or more times to
activate the DTCS encoder, and then push [PTT].
• " " and " " appear.
D
• The specified DTCS code is superimposed over your transmitted
signal.
• See page 24 for DTCS code setting details.
✔ CONVENIENT!
Tone scan function:
If you don't know the subaudible tone or DTCS code used for
a repeater, the tone scan is convenient for detecting it.
➥ Push [FUNC](M), and then [T.SCAN](3) to start a tone
scan.
• When the required tone frequency or DTCS code is detected, the
scan pauses, and it is temporarily set.
• See page 26 for Tone Scan function details.
