Initial Set Mode Programming - Icom IC-G80 Instruction Manual

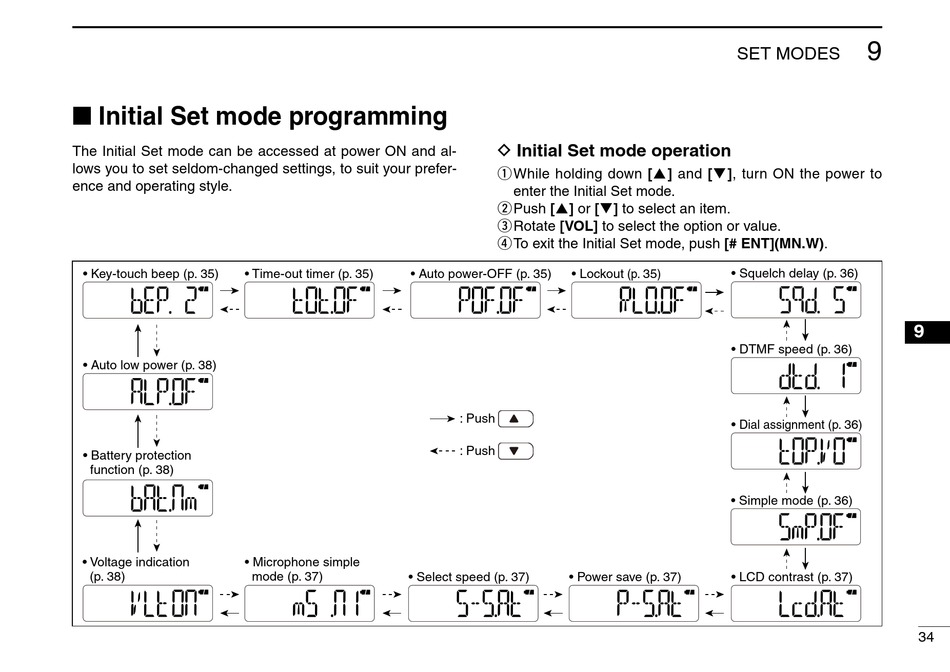

■ Initial Set mode programming

The Initial Set mode can be accessed at power ON and al-
lows you to set seldom-changed settings, to suit your prefer-
ence and operating style.
• Key-touch beep (p. 35) • Time-out timer (p. 35)
• Auto low power (p. 38)
• Battery protection
function (p. 38)
• Voltage indication • Microphone simple
(p. 38) mode (p. 37)
D Initial Set mode operation
q While holding down [] and [], turn ON the power to
enter the Initial Set mode.
w Push [] or [] to select an item.
e Rotate [VOL] to select the option or value.
r To exit the Initial Set mode, push [# ENT](MN.W).
• Auto power-OFF (p. 35) • Lockout (p. 35)
: Push
: Push
• Select speed (p. 37) • Power save (p. 37)
9
SET MODES
• Squelch delay (p. 36)
• DTMF speed (p. 36)
• Dial assignment (p. 36)
• Simple mode (p. 36)
• LCD contrast (p. 37)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
34
