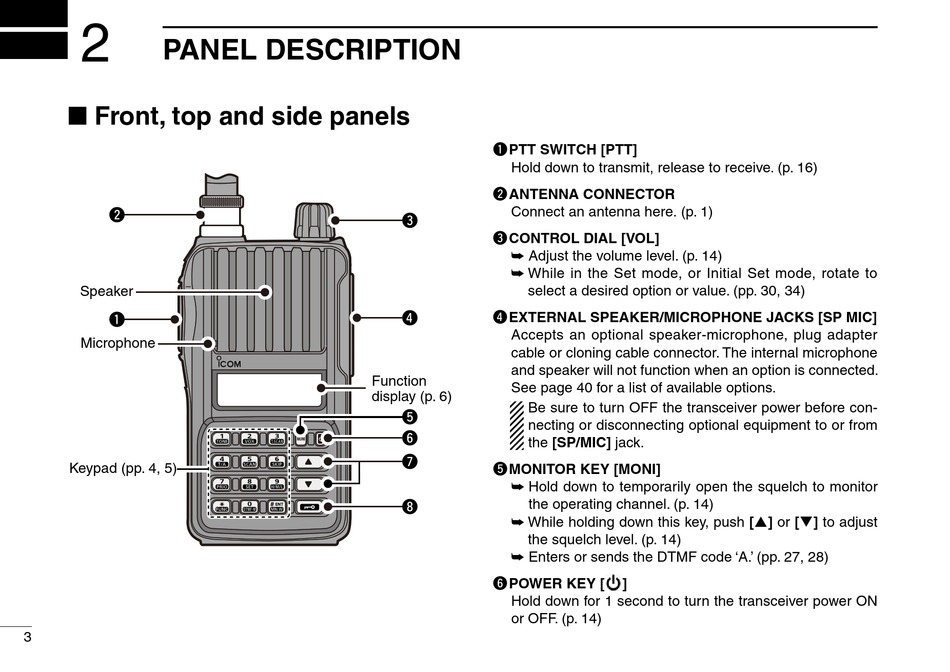

PANEL DESCRIPTION

■ Front, top and side panels
w
Speaker
q
Microphone
Keypad (pp. 4, 5)
3
q PTT SWITCH [PTT]
Hold down to transmit, release to receive. (p. 16)
w ANTENNA CONNECTOR
Connect an antenna here. (p. 1)
e
e CONTROL DIAL [VOL]
➥ Adjust the volume level. (p. 14)
➥ While in the Set mode, or Initial Set mode, rotate to
select a desired option or value. (pp. 30, 34)
r EXTERNAL SPEAKER/MICROPHONE JACKS [SP MIC]
r
Accepts an optional speaker-microphone, plug adapter
cable or cloning cable connector. The internal microphone
and speaker will not function when an option is connected.
Function
See page 40 for a list of available options.
display (p. 6)
Be sure to turn OFF the transceiver power before con-
t
necting or disconnecting optional equipment to or from
y
the [SP/MIC] jack.
u
t MONITOR KEY [MONI]
➥ Hold down to temporarily open the squelch to monitor
the operating channel. (p. 14)
i
➥ While holding down this key, push [] or [] to adjust
the squelch level. (p. 14)
➥ Enters or sends the DTMF code 'A.' (pp. 27, 28)
y POWER KEY [
Hold down for 1 second to turn the transceiver power ON
or OFF. (p. 14)
]
