Security

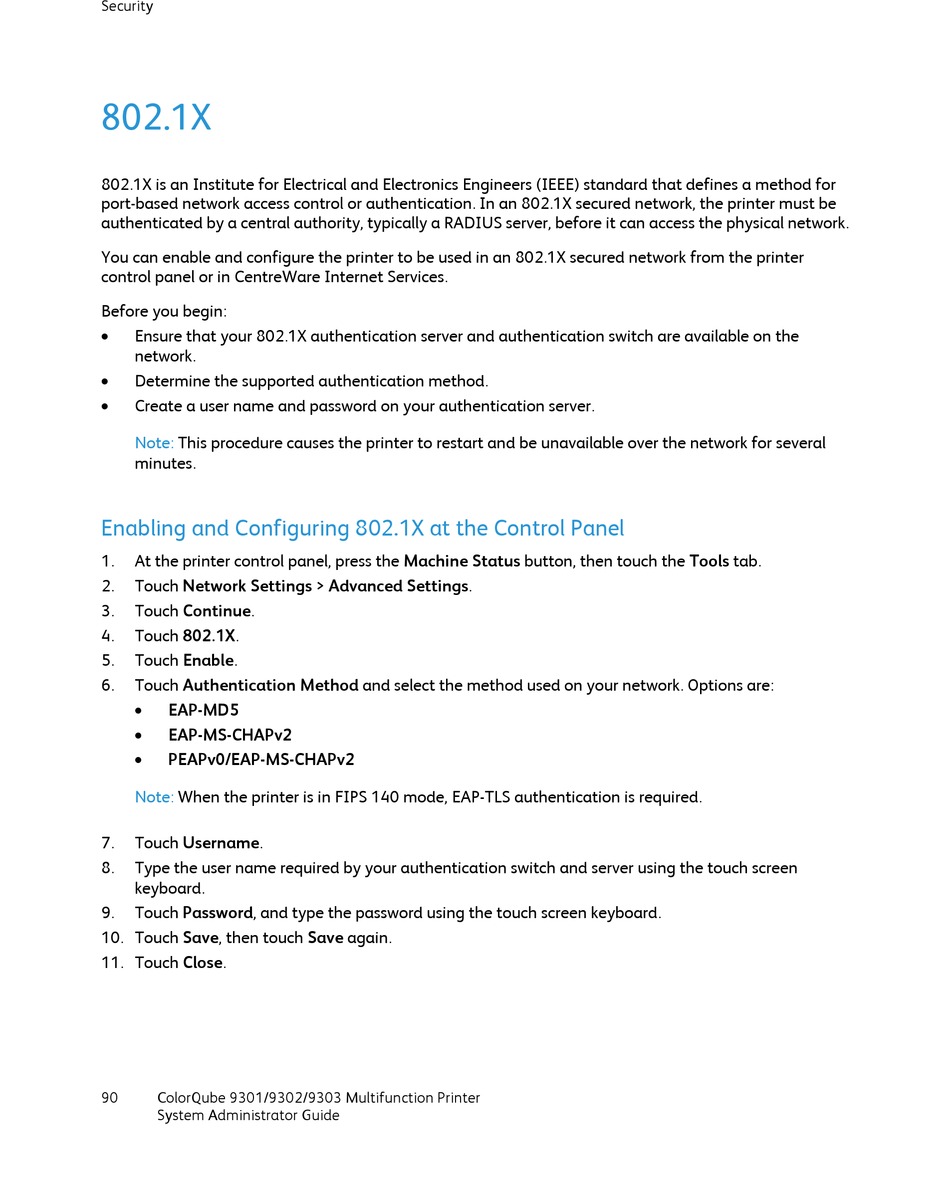

802.1X
802.1X is an Institute for Electrical and Electronics Engineers (IEEE) standard that defines a method for
port-based network access control or authentication. In an 802.1X secured network, the printer must be
authenticated by a central authority, typically a RADIUS server, before it can access the physical network.
You can enable and configure the printer to be used in an 802.1X secured network from the printer
control panel or in CentreWare Internet Services.
Before you begin:

Ensure that your 802.1X authentication server and authentication switch are available on the
network.

Determine the supported authentication method.

Create a user name and password on your authentication server.
Note: This procedure causes the printer to restart and be unavailable over the network for several
minutes.

Enabling and Configuring 802.1X at the Control Panel

At the printer control panel, press the Machine Status button, then touch the Tools tab.
1.
2. Touch Network Settings > Advanced Settings.
3. Touch Continue.
4. Touch 802.1X.
5. Touch Enable.
Touch Authentication Method and select the method used on your network. Options are:
6.

EAP-MD5

EAP-MS-CHAPv2

PEAPv0/EAP-MS-CHAPv2
Note: When the printer is in FIPS 140 mode, EAP-TLS authentication is required.
7. Touch Username.
8. Type the user name required by your authentication switch and server using the touch screen
keyboard.
Touch Password, and type the password using the touch screen keyboard.
9.
10. Touch Save, then touch Save again.
11. Touch Close.
90 ColorQube 9301/9302/9303 Multifunction Printer
System Administrator Guide
