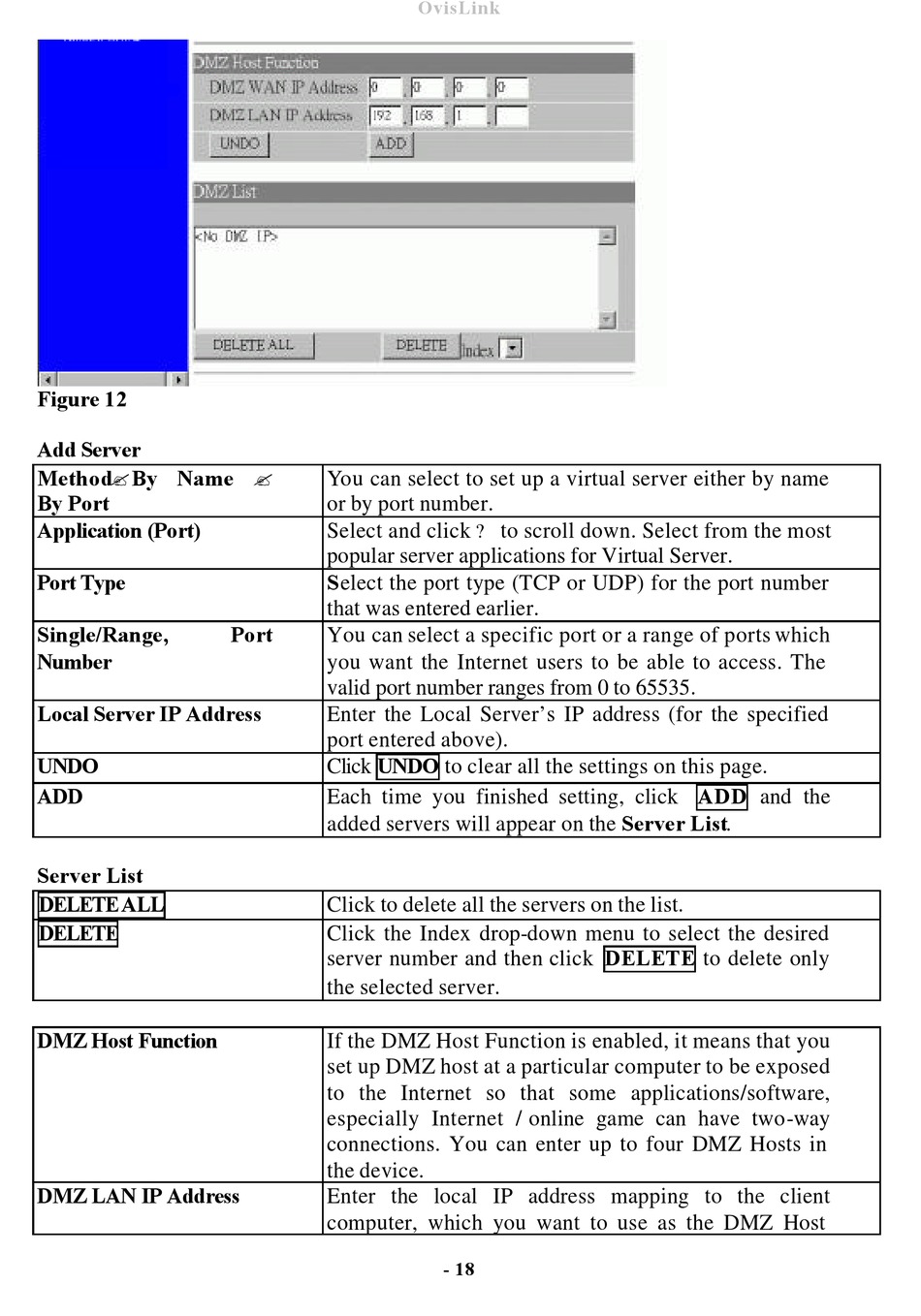

Figure 12
Add Server
Method?By Name ?
By Port
Application (Port)
Port Type
Single/Range,
Number
Local Server IP Address
UNDO
ADD
Server List
DELETE ALL
DELETE
DMZ Host Function
DMZ LAN IP Address
You can select to set up a virtual server either by name
or by port number.
Select and click
popular server applications for Virtual Server.
Select the port type (TCP or UDP) for the port number
that was entered earlier.
Port
You can select a specific port or a range of ports which
you want the Internet users to be able to access. The
valid port number ranges from 0 to 65535.
Enter the Local Server's IP address (for the specified
port entered above).
Click UNDO to clear all the settings on this page.
Each time you finished setting, click ADD and the
added servers will appear on the Server List.
Click to delete all the servers on the list.
Click the Index drop-down menu to select the desired
server number and then click DELETE to delete only
the selected server.
If the DMZ Host Function is enabled, it means that you
set up DMZ host at a particular computer to be exposed
to the Internet so that some applications/software,
especially Internet / online game can have two-way
connections. You can enter up to four DMZ Hosts in
the device.
Enter the local IP address mapping to the client
computer, which you want to use as the DMZ Host
OvisLink
to scroll down. Select from the most
?
