Ovislink Air Live WMK-AirMax5N Quick Setup Manual

How to Use WMK-AirMax5N

The optional WMK-AirMax5N metal pole/wall mount kit allows your AirMax5N to

be mounted on the wall and pole. It enables you to tilt the AirMax5N to the

desire vertical angle. If you have purchased such kit, please follow the instruc-

tion below to mount your AirMax5N.

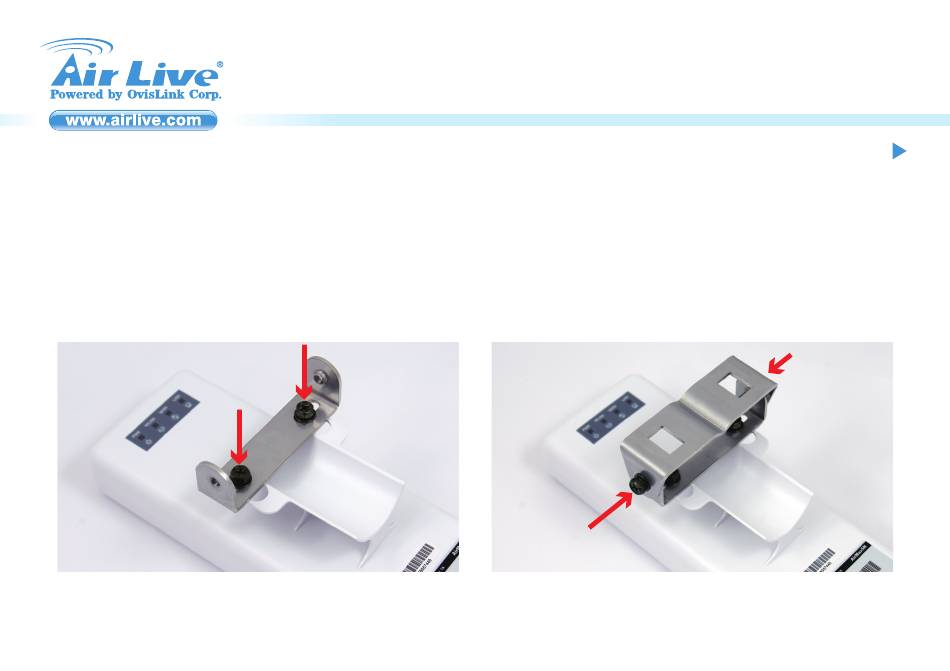

Step1:

Install the first metal bracket into the AirMax5N and

tighten the screws

WMK-AirMax5N

How to Use WMK-AirMax5N

Step2:

Install second metal bracket with first mental bracket

together and tighten the screws.

Quick Setup Guide

Package Content

- Screws x 4

- Metal ring x 1

- Metal bracket x 2

- Screw nut x2

Table of Contents

Do you have a question about the Air Live WMK-AirMax5N and is the answer not in the manual?

Page 1 WMK-AirMax5N How to Use WMK-AirMax5N Quick Setup Guide How to Use WMK-AirMax5N Package Content The optional WMK-AirMax5N metal pole/wall mount kit allows your AirMax5N to - Screws x 4 be mounted on the wall and pole. It enables you to tilt the AirMax5N to the - Metal ring x 1 desire vertical angle.
Page 2 Step3: Step4: Turn the metal ring (pipe fastener) until one end of the Put the metal ring through the holes on the bracket and ring come off completely wrap it around the pole. Step5: Step6: Turn the metal ring until the ring is very tight around the By adjusting the bracket screws, you can adjust the pole.
