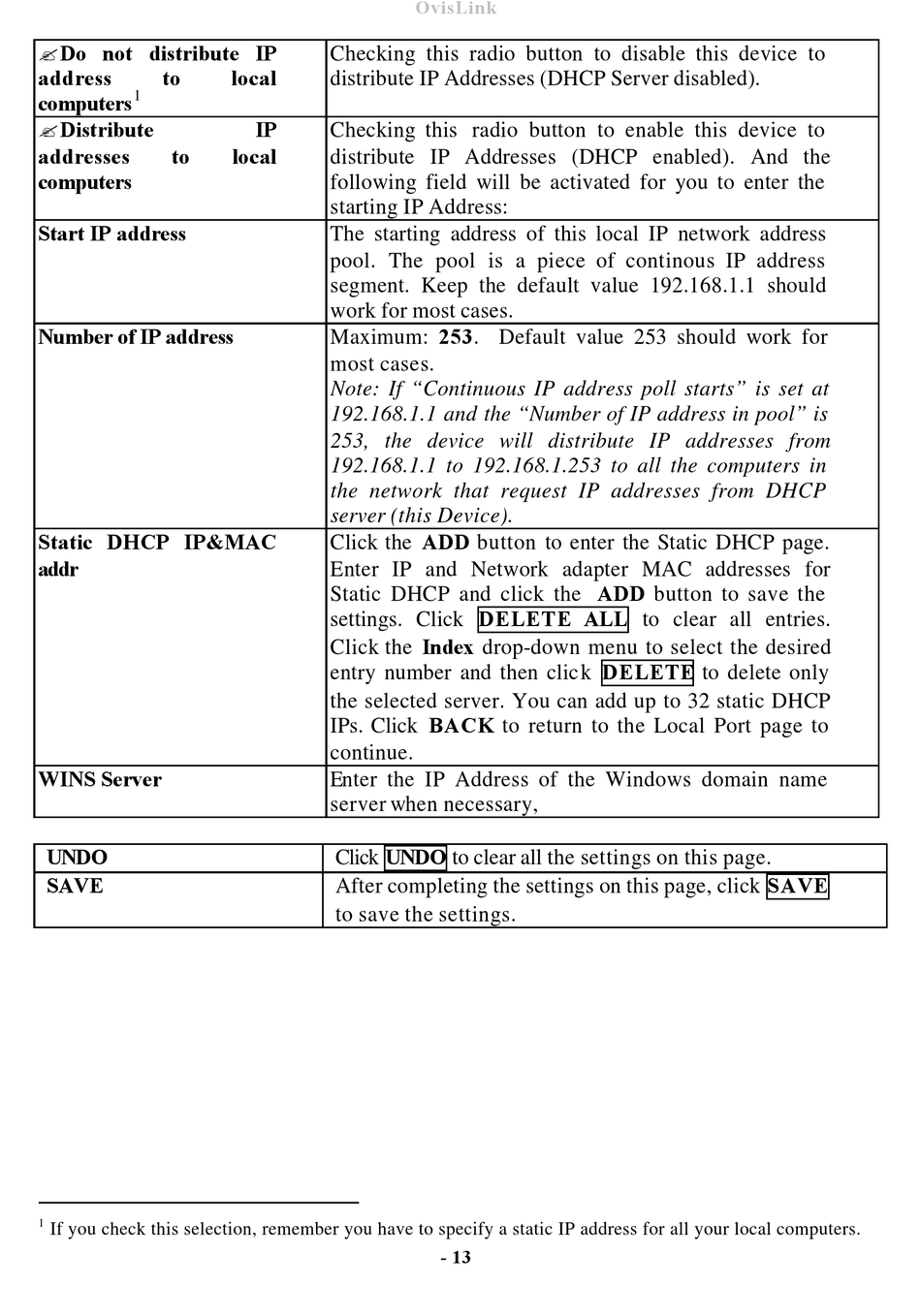

Ovislink Wireless Router User Manual page 17

?Do not distribute IP
address to
computers
1
?Distribute
addresses to
computers
Start IP address
Number of IP address
Static DHCP IP&MAC
addr
WINS Server
UNDO
SAVE
1
If you check this selection, remember you have to specify a static IP address for all your local computers.
Checking this radio button to disable this device to
local
distribute IP Addresses (DHCP Server disabled).
IP
Checking this radio button to enable this device to
local
distribute IP Addresses (DHCP enabled). And the
following field will be activated for you to enter the
starting IP Address:
The starting address of this local IP network address
pool. The pool is a piece of continous IP address
segment. Keep the default value 192.168.1.1 should
work for most cases.
Maximum: 253. Default value 253 should work for
most cases.
Note: If "Continuous IP address poll starts" is set at
192.168.1.1 and the "Number of IP address in pool" is
253, the device will distribute IP addresses from
192.168.1.1 to 192.168.1.253 to all the computers in
the network that request IP addresses from DHCP
server (this Device).
Click the ADD button to enter the Static DHCP page.
Enter IP and Network adapter MAC addresses for
Static DHCP and click the ADD button to save the
settings. Click DELETE ALL to clear all entries.
Click the Index drop-down menu to select the desired
entry number and then click DELETE to delete only
the selected server. You can add up to 32 static DHCP
IPs. Click BACK to return to the Local Port page to
continue.
Enter the IP Address of the Windows domain name
server when necessary,
Click UNDO to clear all the settings on this page.
After completing the settings on this page, click SAVE
to save the settings.
OvisLink
- 13
