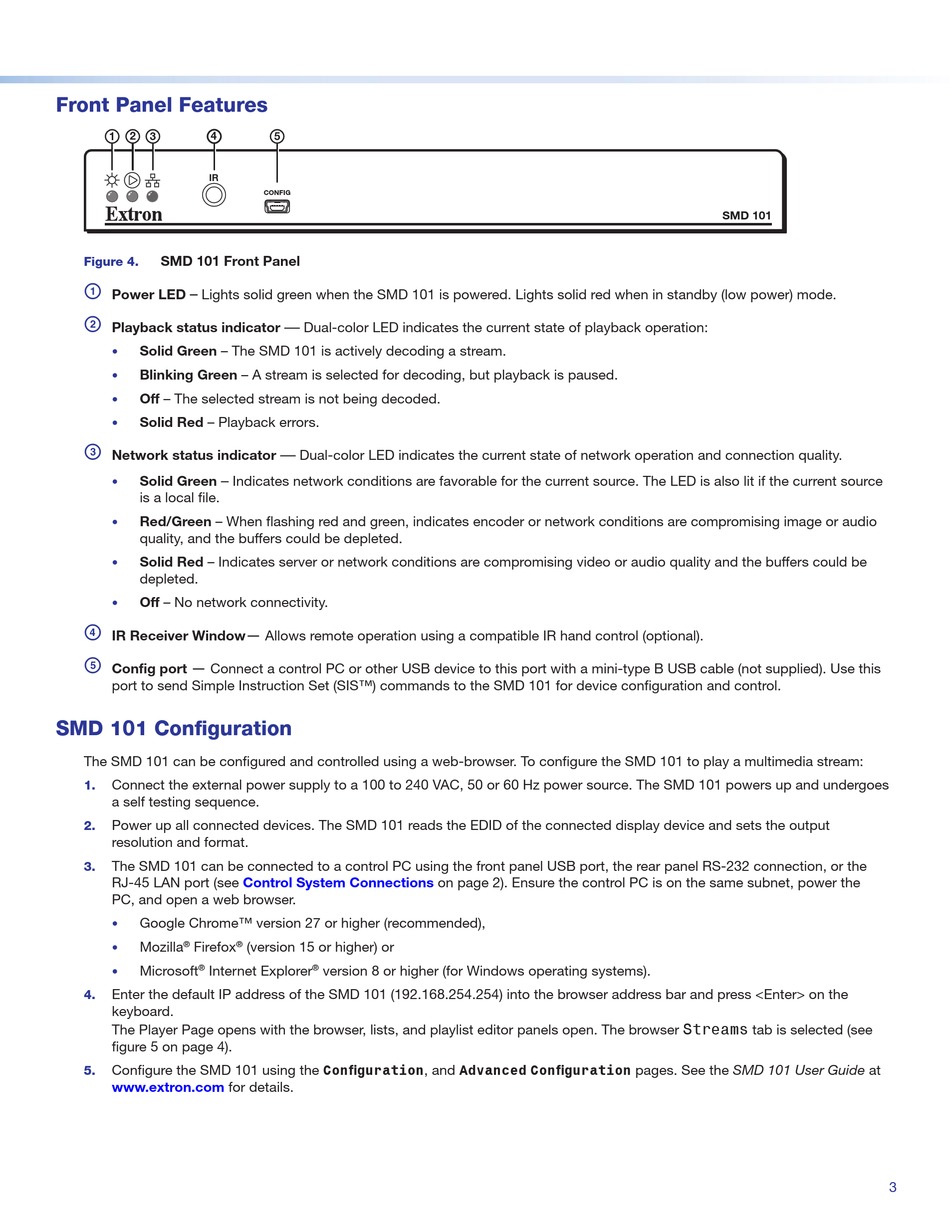

Front Panel Features

2 3 4
1
IR
SMD 101 Front Panel
Figure 4.
a
–
Power LED
Lights solid green when the SMD 101 is powered. Lights solid red when in standby (low power) mode.
b
Playback status indicator
Solid Green – The SMD 101 is actively decoding a stream.
•
Blinking Green – A stream is selected for decoding, but playback is paused.
•
Off – The selected stream is not being decoded.
•
Solid Red – Playback errors.
•
c
Network status indicator
–
Solid Green Indicates network conditions are favorable for the current source. The LED is also lit if the current source
•
is a local file.
Red/Green – When flashing red and green, indicates encoder or network conditions are compromising image or audio
•
quality, and the buffers could be depleted.
Solid Red – Indicates server or network conditions are compromising video or audio quality and the buffers could be
•
depleted.
Off – No network connectivity.
•
d
IR Receiver Window
e
—
Config port Connect a control PC or other USB device to this port with a mini-type B USB cable (not supplied). Use this
port to send Simple Instruction Set (SIS™) commands to the SMD 101 for device configuration and control.
SMD 101 Configuration
The SMD 101 can be configured and controlled using a web-browser. To configure the SMD 101 to play a multimedia stream:
Connect the external power supply to a 100 to 240 VAC, 50 or 60 Hz power source. The SMD 101 powers up and undergoes
1.
a self testing sequence.
Power up all connected devices. The SMD 101 reads the EDID of the connected display device and sets the output
2.
resolution and format.
The SMD 101 can be connected to a control PC using the front panel USB port, the rear panel RS-232 connection, or the
3.
RJ-45 LAN port (see
PC, and open a web browser.
Google Chrome™ version 27 or higher (recommended),
•
Mozilla Firefox
®
•
Microsoft Internet Explorer
®
•
Enter the default IP address of the SMD 101 (192.168.254.254) into the browser address bar and press <Enter> on the
4.
keyboard.
The Player Page opens with the browser, lists, and playlist editor panels open. The browser
figure 5 on page 4).
Configure the SMD 101 using the Configuration, and Advanced Configuration pages. See the SMD 101 User Guide at
5.
www.extron.com
for details.
5
CONFIG
—
Dual-color LED indicates the current state of playback operation:
—
Dual-color LED indicates the current state of network operation and connection quality.
—
Allows remote operation using a compatible IR hand control (optional).
Control System Connections
(version 15 or higher) or
®
version 8 or higher (for Windows operating systems).
®
on page 2). Ensure the control PC is on the same subnet, power the
SMD 101
Streams
tab is selected (see
3
