Extron electronics SMD 101 Setup Manual page 5

Operation With Extron SME 100 Encoders
For SME 100 stream discovery in the SMD 101 streams browser (see
Stream Control and SAP Control enabled to enable SAP announcements. The SME 100 settings are shown below.
From the SME 100 default web page (see the SME 100 User Guide), select the Encoder Configuration link, then
Encoder Settings to open the configuration dialog shown in figure 6 below.
Stream Control Stream Method
Enable
SAP Control
Enable

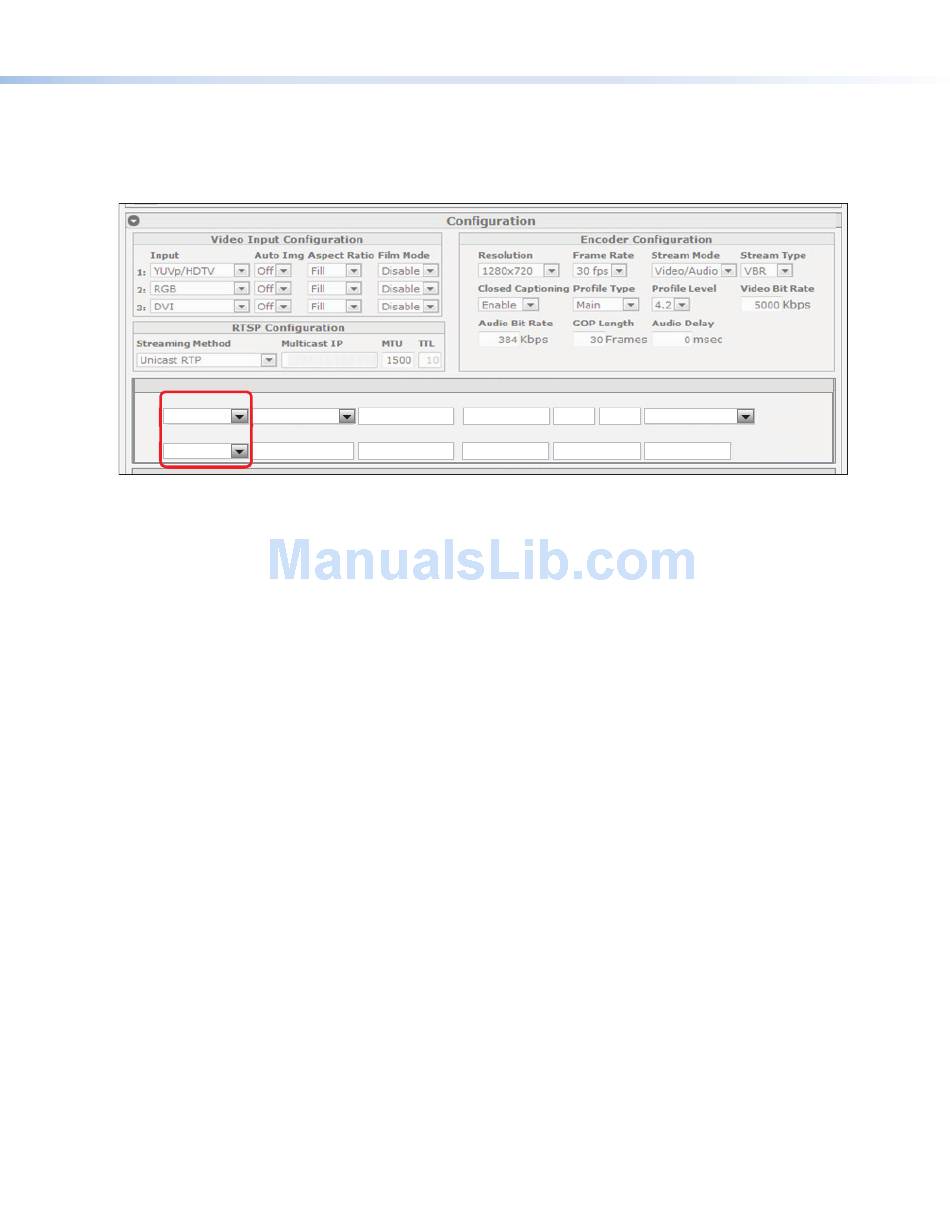

SME 100 Encoder Configuration Panel (Partial View)
Figure 6.
In both the Stream Control and SAP Control drop-down lists, select Enable. Choose a Destination IP and
Destination Port which avoid conflict with other multicast devices on your network, then enter them into the
appropriate fields.
With SAP Control enabled, the SME 100 stream (Test Pattern 1) is listed by the SMD 101 stream browser in the Extron
folder. To connect the stream, from the browser, drag and drop the stream anywhere on the Player Controls panel
(see Play a Stream: on page 4).
RTSP Multicast (Pull Streaming)
When using RTSP multicast from an SME 100, the SMD 101 must still connect to it using the SME 100 IP address (for
example rtsp://192.168.254.100) rather than the typical multicast IP address (for example rtsp://239.10.193.165).
If the SME 100 is set up for push streaming (Stream Control Enable), the RTSP bitrate is limited to 5 Mbps on startup or
restart. Although it can be higher, it is not recommended.
If higher bitrates are required, only a single stream method should be active.
Push Streaming (Unicast Port Numbers)
In systems with more than one SME 100 encoder using any of the unicast push methods (TS/UDP, TS/RTP, ES/RTP) to a
single SMD 101 decoder, each SME 100 must use a unique port number (such as 60000 and 61000). See the SMD 101
User Guide for additional information.
Multicast
For systems where streams from one or more SME 100s are received and decoded by multiple SMD 101s, multicast
addressing is strongly recommended. All network switches must be suitably rated and correctly configured for IGMP
snooping and multicast filtering with an active IGMP querier (possibly the network switch) available on the local subnet
for optimum performance.
Streaming Configuration
Destination IP
Multi TS/RTP 238.13.197.190
Session Name Session Description Keywords
Test Pattern 1 Bars and Tones
figure 5 on page 4), the SME 100 must have both
Destination Port MTU TTL
60000 1500 10
Author
test, pattern Extron1
QoS (Differentiated Services)
Normal (CS3)
Announce Frequency
5 sec
5
