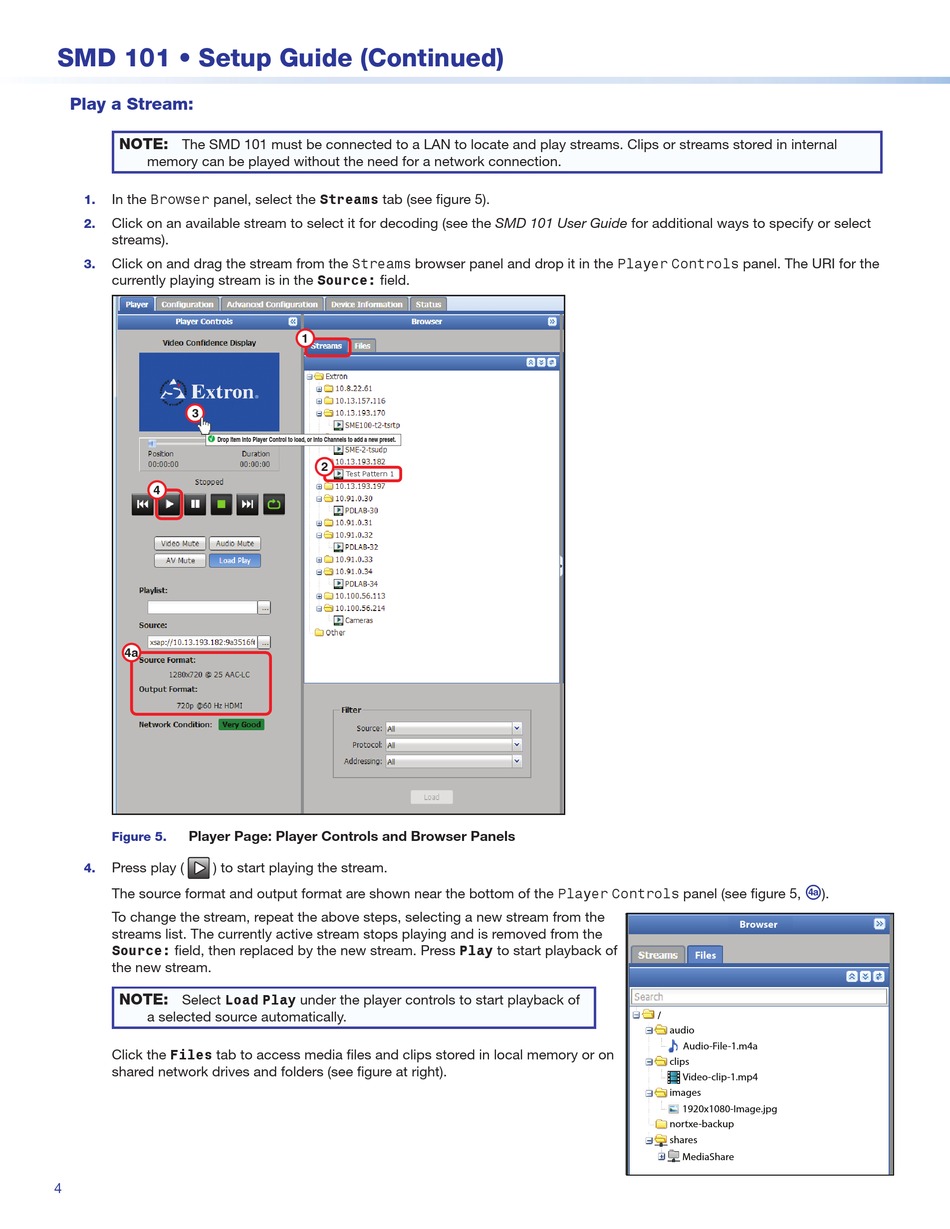

SMD 101 • Setup Guide (Continued)
Play a Stream:
NOTE:
The SMD 101 must be connected to a LAN to locate and play streams. Clips or streams stored in internal
memory can be played without the need for a network connection.
In the Browser panel, select the Streams tab (see figure 5).
1.
Click on an available stream to select it for decoding (see the SMD 101 User Guide for additional ways to specify or select
2.
streams).
Click on and drag the stream from the Streams browser panel and drop it in the Player Controls panel. The URI for the
3.
currently playing stream is in the Source: field.
3
√ Drop item into Player Control to load, or into Channels to add a new preset.
4
4a
Player Page: Player Controls and Browser Panels
Figure 5.
Press play ( ) to start playing the stream.
4.
The source format and output format are shown near the bottom of the Player Controls panel (see figure 5,
To change the stream, repeat the above steps, selecting a new stream from the
streams list. The currently active stream stops playing and is removed from the
Source: field, then replaced by the new stream. Press Play to start playback of
the new stream.
NOTE:
Select Load Play under the player controls to start playback of
a selected source automatically.
Click the Files tab to access media files and clips stored in local memory or on
shared network drives and folders (see figure at right).
4
1
2
Ü
).
Browser
Files
/
audio
Audio-File-1.m4a
clips
Video-clip-1.mp4
images
nortxe-backup
shares
MediaShare
