System tour

Refer to the diagrams below to identify the components of the system.
Front Panel
WiFi LED
When the data is Transferring, the WiFi LED will blink.
eSATA
The eSATA connector provides an external connectivity for mass storage
devices.
This connector do not support hot-swapping. Users should not connect or
disconnect their eSATA devices from PC when the system is working.
QBOX-1000 User's Manual

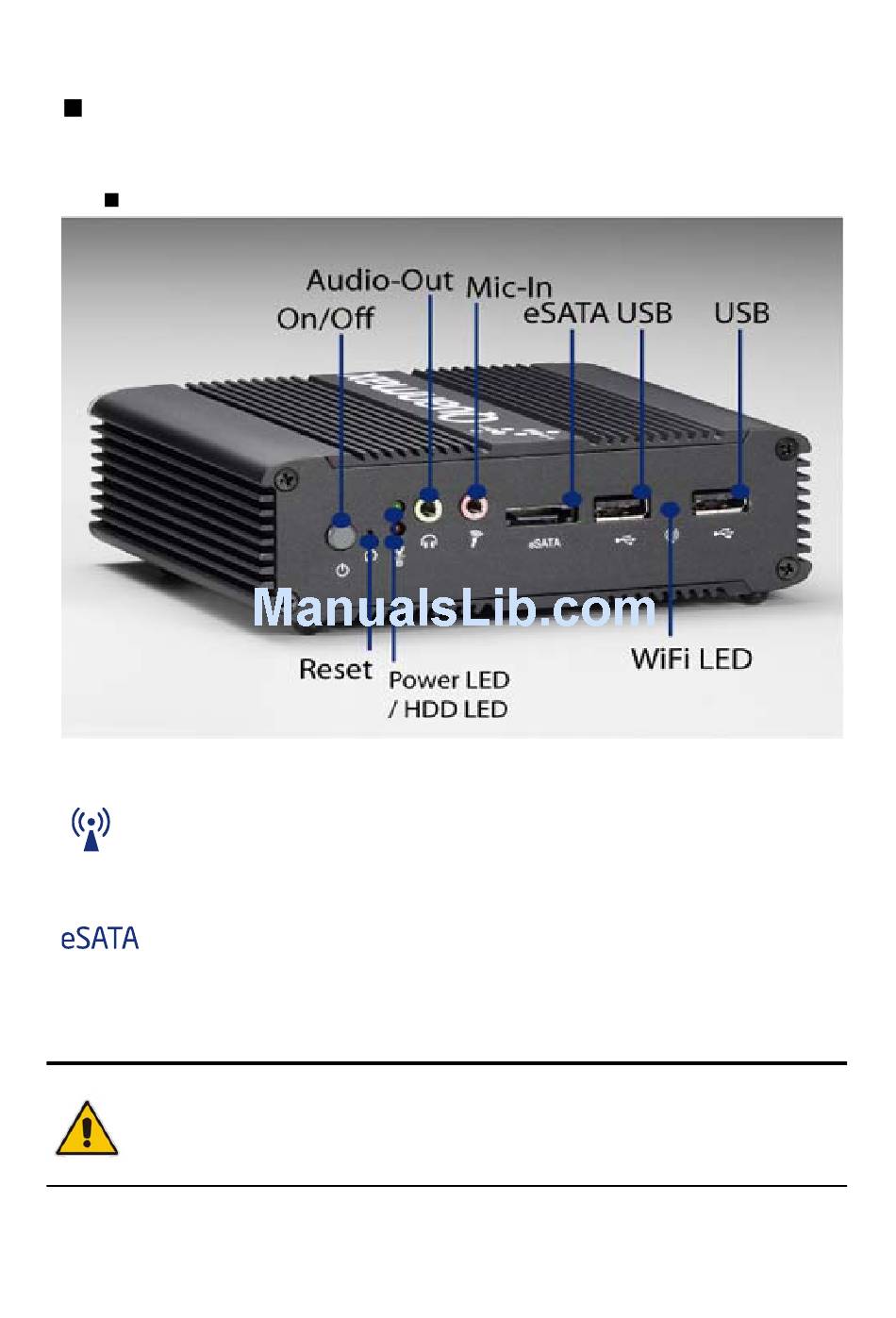

Figure 1 Front Panel
